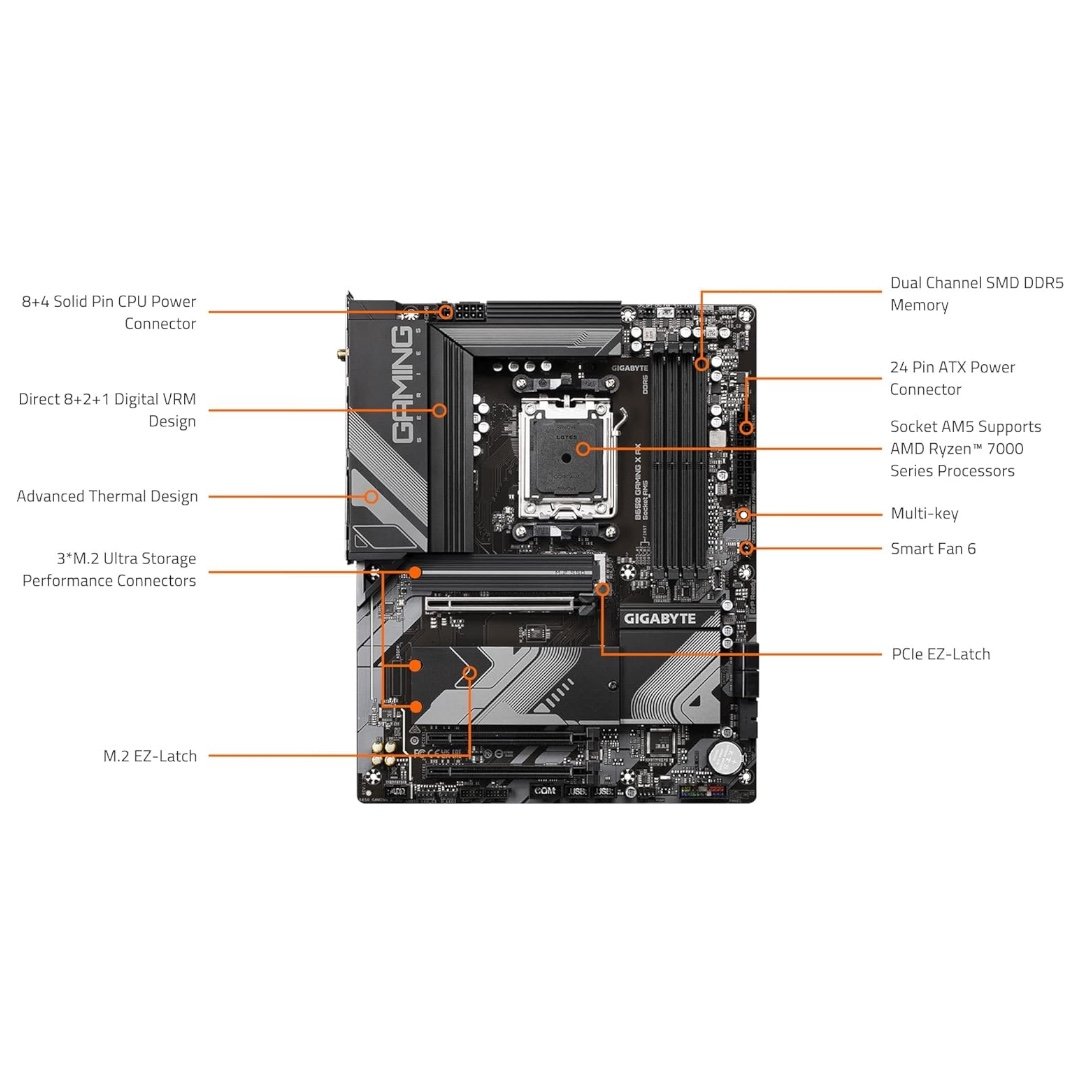

GIGABYTE B650 GAMING Motherboard
Properties:
SKU:SKU: GIG-B650-GAMING-AX 📍Description ▸ Processor Support: AMD Ryzen™ 7000 Series processors on AM5 ▸ Chipset & VRM: Built on the AMD B650 chipset with a Direct 8+2+1 phases Digital VRM solution for robust power delivery ▸ Memory: 4 DDR5 DIMM slots supporting up to 128GB, with speeds from DDR5 4400 up to 6400(OC) MHz; supports AMD E...
SKU:SKU: GIG-B650-GAMING-AX 📍Description ▸ Processor Support: AMD Ryzen™ 7000 Series processors on AM5 ▸ Chipset & VRM: Built on the AMD B650 chipset with a Direct 8+2+1 phases Digital VRM solution for robust power delivery ▸ Memory: 4 DDR5 DIMM slots supporting up to 128GB, with speeds from DDR5 4400 up to 6400(OC) MHz; supports AMD EXPO™ & Intel® XMP profiles ▸ Expansion & Storage: - PCIe: 1 PCIe 4.0 x16 slot with EZ-Latch quick release; 2 PCIe x1 slots - Storage: 4 SATA 6Gb/s ports and 3 M.2 connectors (2 from CPU supporting PCIe 4.0 x4/x2 and 1 from chipset) with M.2 Thermal Guard ▸ Audio: 7.1‑channel HD audio via Realtek Audio CODEC for immersive sound ▸ Networking: 2.5GbE LAN combined with Wi‑Fi 802.11 ax and Bluetooth 5.2 for high‑speed connectivity ▸ Rear I/O: Includes 2 SMA antenna connectors, Q‑Flash Plus button, DisplayPort, HDMI, USB Type‑C (USB 3.2 Gen2), USB Type‑A (red, Gen2), additional USB 3.2 Gen1 & USB 2.0 ports, RJ‑45, and audio jacks ▸ Internal I/O: Comprehensive headers for USB (including Type‑C), multiple fan connectors (CPU, water cooling, system), RGB LED (addressable and standard), M.2, SATA, front panel, TPM (supports TPM 2.0), serial, and reset/Clear CMOS ▸ Form Factor & Power: ATX design (12.0″ x 9.6″) with 24‑pin ATX main, 8‑pin and 4‑pin ATX 12V power connectors ▸ Additional Features: Advanced thermal design with M.2 Thermal Guard, Smart Fan 6 with FAN STOP, and Q‑Flash Plus for hassle‑free BIOS updates A high‑performance, feature‑rich ATX motherboard engineered for gamers and power users, delivering robust connectivity, ultrafast storage, immersive audio, and advanced cooling on the AMD B650 platform.
