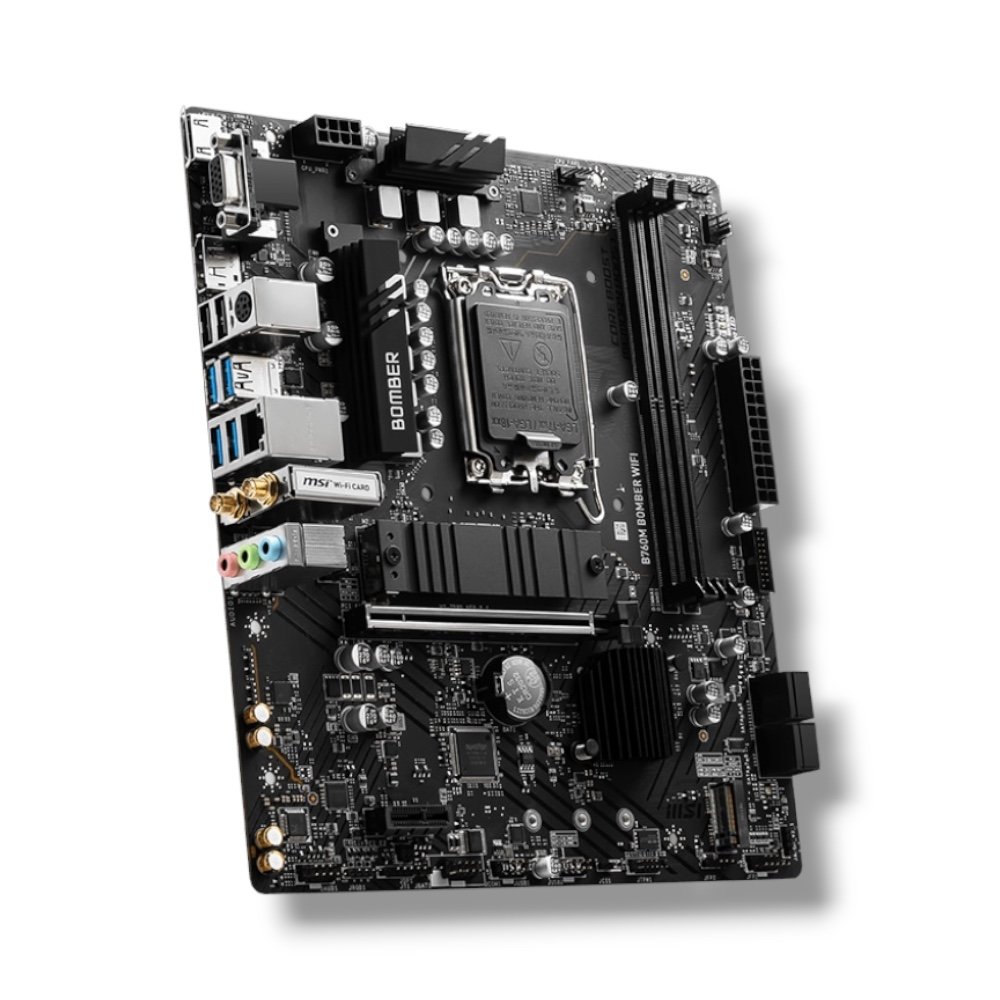

Motherboard MSI B760M Bomber WiFi Motherboard | Intel 14th/13th/12th Gen | DDR5

Information:

MSI B760M Bomber WiFi Motherboard | Intel 14th/13th/12th Gen | DDR5 6400MHz | Wi-Fi 6E | Micro-ATX

Description:

•	SKU: 911-7D90-065
	•	Chipset: Intel B760
	•	CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® (Socket LGA 1700)
	•	Memory:
▸ 2× DDR5 slots, up to 96GB
▸ Supports DDR5 6400+(OC) / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz
▸ Dual-channel, non-ECC, un-buffered, Intel® XMP 3.0 support
	•	Graphics Outputs:
▸ 1× HDMI™ 2.1 (4K 60Hz HDR)
▸ 1× DisplayPort 1.4 (4K 60Hz)
▸ 1× VGA (up to 2048×1536)
	•	Expansion Slots:
▸ 1× PCIe 4.0 x16 (CPU)
▸ 1× PCIe 4.0 x1 (Chipset)
	•	Storage:
▸ 2× M.2 PCIe Gen4 (one supports SATA mode)
▸ 4× SATA 6Gb/s
▸ RAID 0/1/5/10 support
	•	Networking:
▸ Realtek® RTL8125B 2.5Gb LAN
▸ Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz) + Bluetooth® 5.3
	•	Audio: Realtek® ALC897 Codec, 7.1 Channel HD Audio
	•	Internal I/O:
▸ ATX_PWR, CPU_PWR
▸ 1× CPU Fan, 2× System Fan, Pump Fan header
▸ 2× JARGB_V2, 1× JRGB connectors
▸ TPM 2.0 header, COM port, front panel, audio
▸ 4× USB 2.0, 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen2 Type-C
	•	Rear I/O Ports:
▸ HDMI™, DisplayPort, VGA
▸ 2× USB 3.2 Gen1 Type-A
▸ 2× USB 2.0
▸ 2.5G LAN, Wi-Fi / Bluetooth
▸ Audio connectors, Keyboard/Mouse, BIOS Flash button
	•	Form Factor: Micro-ATX (220mm × 243.84mm)
	•	OS Support: Windows® 11 / 10 (64-bit)
