DeepCool CH690 DIGITAL

Information:

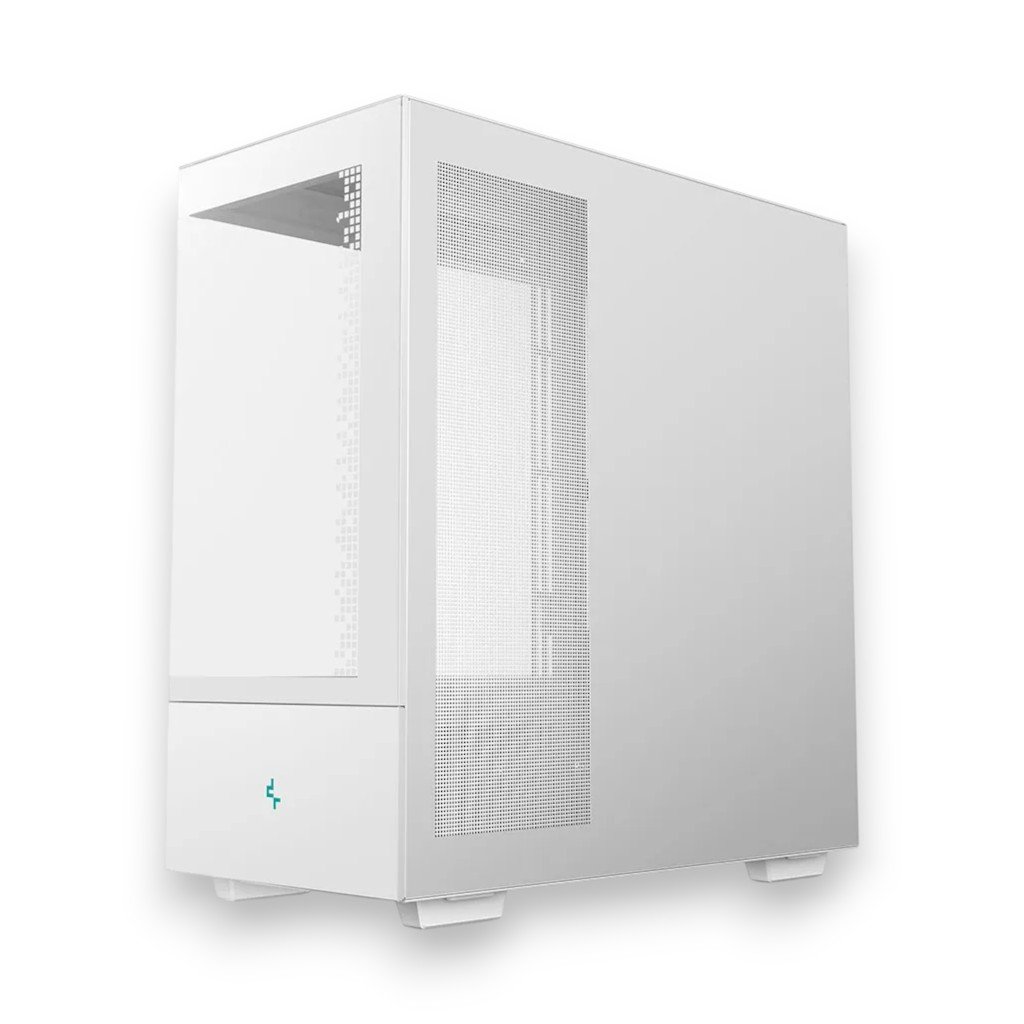

💻 DeepCool CH690 DIGITAL PC Case | Digital Display | Tempered Glass | GPU Holder | USB-C | 450mm GPU Support | WHITE

Description:

📦 SKU: R-CH690-WHNNA0D-G-1
🎯 Features – DeepCool CH690 DIGITAL
✔ Digital Dashboard Monitoring – Real-time stats for CPU, GPU, and PSU (temperature, usage, wattage, frequency, fan speed).
✔ DIY-Ready Design – Optional mesh rear panel and fan bracket for enhanced airflow.
✔ Lighting-Ready – Integrated light strip slot for custom RGB setups.
✔ Ultra-Compatible Layout – Supports GPUs up to 450mm, CPU coolers up to 182mm, and PSUs up to 180mm.
✔ Cooling Beast – Radiator support: top 420mm, bottom 360mm, side 280mm; up to 10 fans across the case.
✔ Tool-Free Storage – 1×3.5″ bay + 2×2.5″ SSD bays for easy installation.
✔ Smart Cable Management – 36.5mm clearance behind motherboard for clean builds.
✔ Anti-Sag GPU Holder – Adjustable bracket to prevent GPU sag.
✔ Front I/O Ready – Dual USB 3.0, USB Type-C Gen 2, and audio jack for convenience.
✔ Magnetic Air Filter – Easy snap-on/off bottom filter keeps dust out.
✔ Tempered Glass Side Panel – Show off your build in style.
✔ Fan-Free – Fully customize airflow according to your needs.

📊 Specs – DeepCool CH690 DIGITAL

▸ Case Type: Mid Tower
▸ Motherboard Support: Mini-ITX / Micro-ATX / ATX / ATX (Rear Connector)
▸ Expansion Slots: 8
▸ Drive Bays: 1×3.5″ + 2×2.5″ (tool-free)
▸ GPU Clearance: Up to 450mm
▸ CPU Cooler Height Limit: Up to 182mm
▸ PSU Type / Limit: ATX PS2 / Max 180mm
▸ Materials: ABS + SPCC + Tempered Glass
▸ Pre-Installed Fans: None
▸ Fan Support: Top: 3×120/140mm | Side: 3×120/140mm | PSU Shroud: 3×120/140mm | Rear: 1×120/140mm
▸ Radiator Support: Top: 420mm | Side: 280mm | Bottom: 360mm
▸ Digital Display Modes: CPU / GPU / PSU – Temperature, Load, Wattage, Frequency
▸ Front I/O Ports: 2×USB 3.0, 1×USB Type-C Gen 2, 1×Audio/Mic Combo
▸ Extra Features: Magnetic Air Filter, Adjustable GPU Holder, Light Strip Slot
▸ Dimensions (L×W×H): 552 × 332 × 589 mm
▸ Net Weight: 9.8 kg
▸ EAN / P/N: 6933412774037 / R-CH690-WHNNA0D-G-1

📦 Included in the Box

1 × DeepCool CH690 DIGITAL PC Case

⚡ Customizable, fan-ready, and fully digital – perfect for high-performance ATX builds with style and airflow in mind. 🎮💻
