MSI MAG A850GLS PCIe 5.1 ATX 3.1 Power Supply 850W | 80 Plus Gold

Information:

MSI MAG A850GLS PCIe 5.1 ATX 3.1 Power Supply 850W | 80 Plus Gold | Native 12V-2×6 GPU Connector | Modular Cables | 135mm FDB Fan | Ultra Quiet & Durable

Description:

▸ SKU: 306-7ZPIY11-CEO
▸ Model: MSI MAG A850GLS PCIe5
▸ Form Factor: ATX 3.1
▸ Efficiency Rating: 80 PLUS Gold (Up to 90%)
▸ Wattage: 850W
▸ Power Excursion: Up to 220% (1870W for 100µs)
▸ PCIe Support: PCIe 5.1 with Native 12V-2×6 (16-pin)
▸ Connector Power (16-pin): Up to 600W
▸ Fan Size: 135mm
▸ Fan Bearing: Fluid Dynamic Bearing (FDB)
▸ Dimensions (DxWxH): 150 × 150 × 86 mm
▸ PFC Type: Active PFC
▸ Input Voltage Range: 100–240V~
▸ Input Frequency Range: 47–63 Hz
▸ Main Capacitor: Japanese 105°C Rated
▸ Protection Features: OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

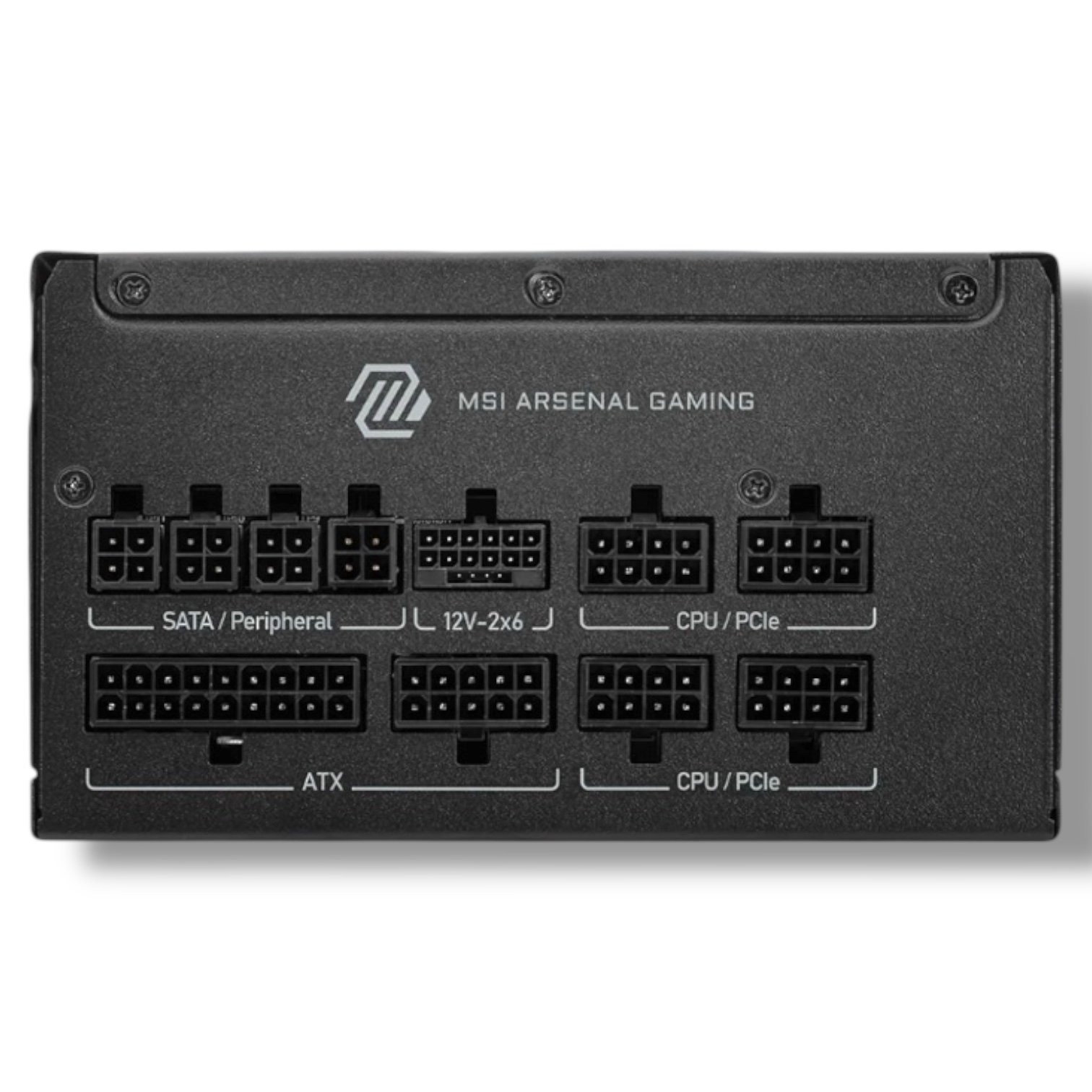

▸ Connectors:
 • 1× ATX (24-pin) • 2× EPS (8-pin)
 • 1× PCI-E 5.1 (16-pin, 600W) • 4× PCI-E (6+2 pin)
 • 8× SATA (15-pin) • 3× Peripheral (4-pin) • 1× FDD (4-pin)
▸ Cables: Full Modular, Embossed Jacket Design
