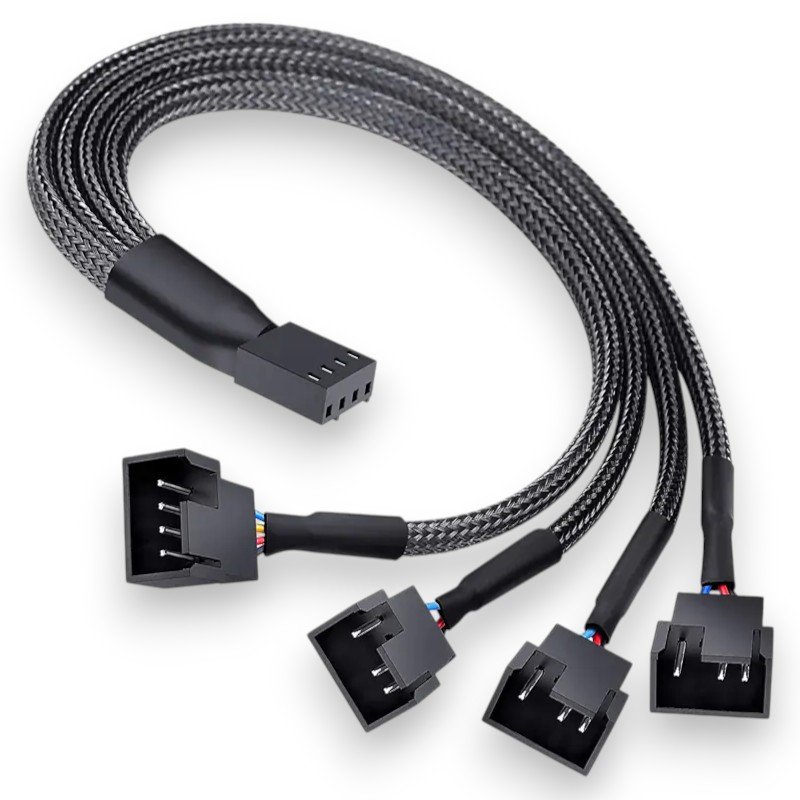

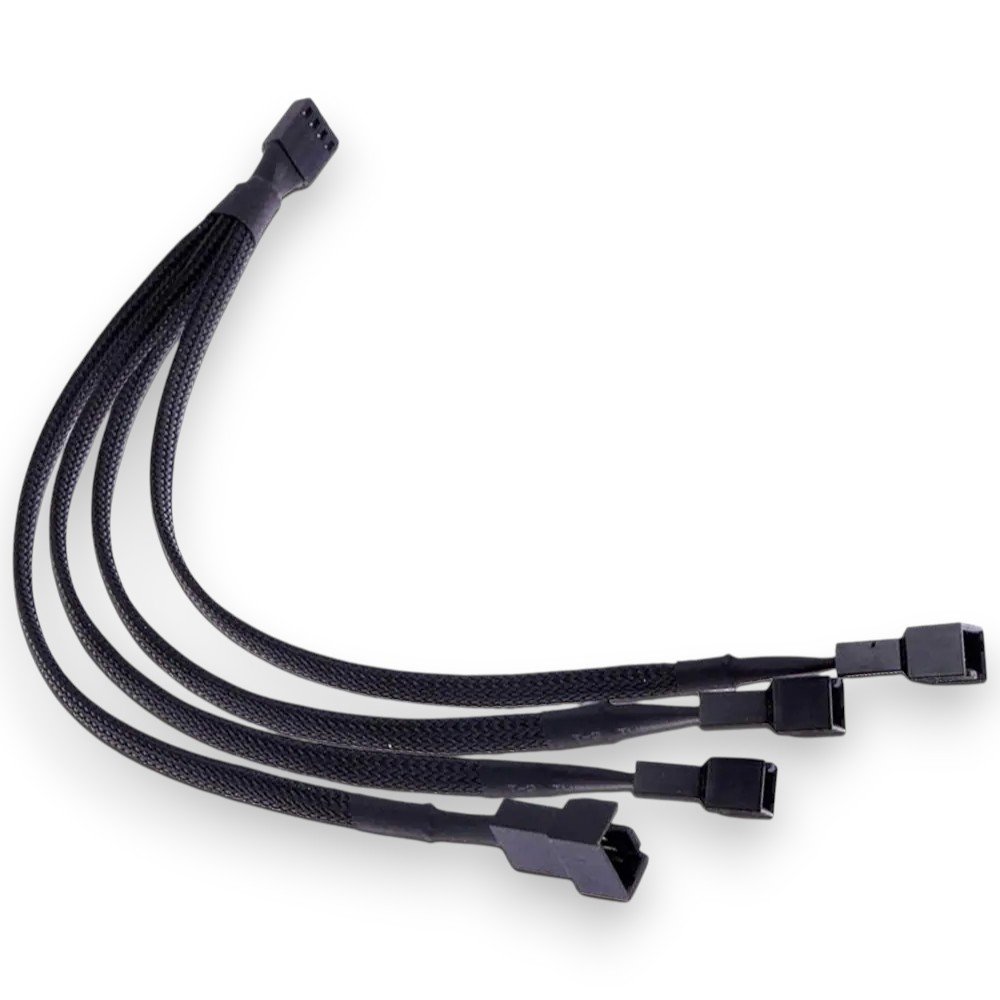

PWM Fan Splitter Cable 1-To-4

Information:

💻 PWM Fan Splitter Cable 1-To-4 – Black Mesh Sleeved

Description:

Product Code (SKU): FAN-SPLITTER BLACK
🎯 Features – PWM Fan Splitter Cable 1-To-4

✔ 1-to-4 Fan Expansion – Connect up to four case or CPU fans to a single 4-pin motherboard header (CPU_FAN or SYS_FAN).
✔ PWM Signal Synchronization – All fans follow the same PWM signal for unified speed control via motherboard software (AI Suite, EasyTune, Fan Xpert, etc.).
✔ Accurate RPM Monitoring – Only one fan connector sends RPM feedback to the motherboard to prevent signal conflicts.
✔ Universal Compatibility – Works with both 4-pin PWM fans and 3-pin DC fans (3-pin fans run at full speed).
✔ Premium Sleeved Design – Black braided mesh for durability, aesthetics, and easier cable management.
✔ Stable 12V DC Power – Ensures consistent voltage delivery to all connected fans.
✔ Smart Design – Prevents RPM signal interference for stable readings; ideal for compact builds.

📊 Specs – PWM Fan Splitter Cable 1-To-4

▸ Cable Type: PWM 1-to-4 Fan Splitter
▸ Connector A: 4-pin Female (Motherboard side)
▸ Connector B: 1x 4-pin Male (with tach signal for RPM monitoring)
▸ Connector C: 3x 4-pin Male (no tach pin)
▸ Compatibility: 3-pin and 4-pin fans
▸ Power: 12V DC
▸ Length: 10 inches (~26.9 cm)
▸ Color: Black Mesh Sleeved
▸ Use Case: CPU cooler, case fans, fan hubs

⚡ Expand your fan setup efficiently while keeping RPM readings accurate and cable management clean. 🎮✨
