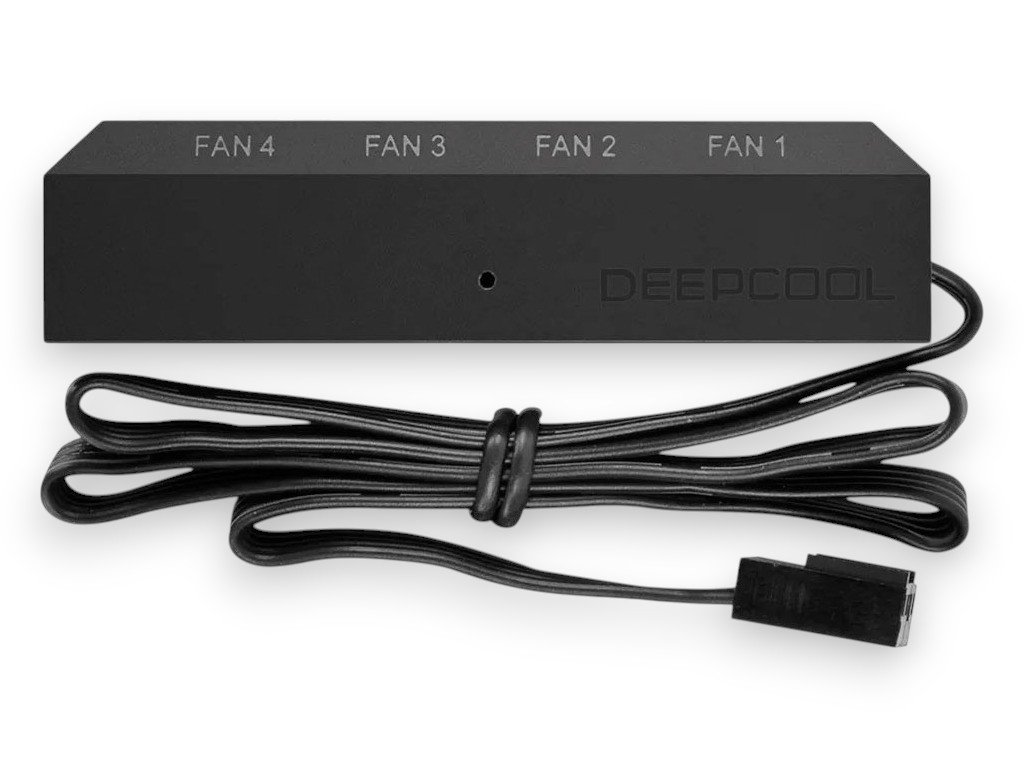

DEEPCOOL FH-04 PWM Fan Hub

Information:

💻 DEEPCOOL FH-04 PWM Fan Hub – 4-Port PWM Fan Controller

Description:

Product Code (SKU): DP-F04PWM-HUB
🎯 Features – DEEPCOOL FH-04 PWM Fan Hub

✔ 1-to-4 Fan Expansion – Connect up to four fans (3-pin or 4-pin) to a single 4-pin motherboard header (CPU_FAN or SYS_FAN).
✔ Full PWM Functionality – Each port supports PWM control, allowing all fans to synchronize speed according to system temperature.
✔ Universal Compatibility – Works seamlessly with both PWM (4-pin) and DC (3-pin) fans.
✔ Stable SATA Power Input – Powered directly from your PSU for reliable 12V DC delivery to all connected fans.

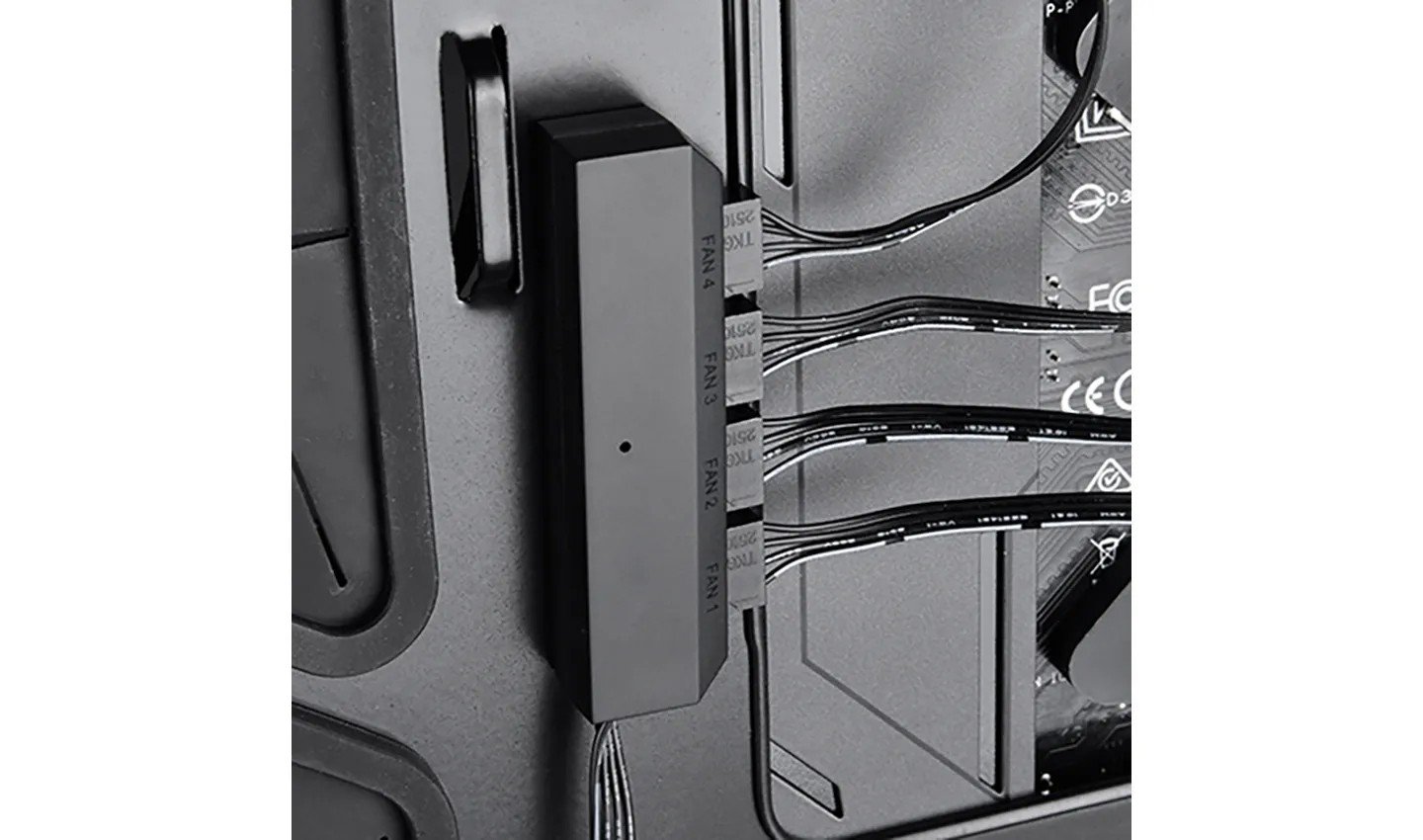

✔ Easy Installation – Compact design with included double-sided adhesive for quick mounting anywhere inside your case.
✔ Accurate RPM Monitoring – Only one fan’s RPM signal (Fan 1) is reported to the motherboard to prevent signal conflicts.
✔ Enhanced Cooling Efficiency – Greatly expands airflow management, improving system cooling performance.

📊 Specs – DEEPCOOL FH-04 PWM Fan Hub

▸ Product Dimensions: 68 × 13 × 17.5 mm
▸ Net Weight: 22 g
▸ Input Port: 1 × 4-pin (Motherboard)
▸ Output Ports: 4 × 4-pin (Fans)
▸ Cable Length: 550 mm
▸ Mounting Method: Double-faced Adhesive
▸ Power Input: SATA (12V DC)
▸ Compatibility: 3-pin & 4-pin Fans
▸ EAN: 6933412795995
▸ Part Number: DP-F04PWM-HUB

⚡ Expand your cooling potential with stable power, synchronized PWM control, and tidy cable management — all in one compact hub. 🌀✨
