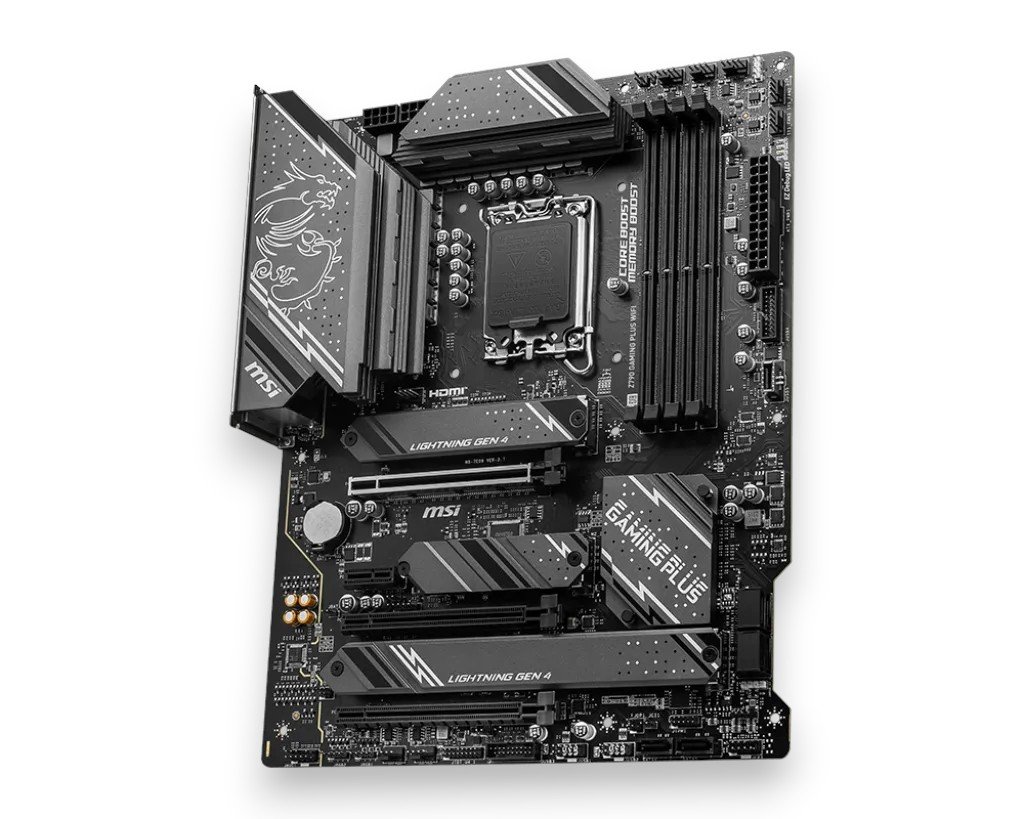

MSI Z790 Gaming Plus WiFi Motherboard

Information:

MSI Z790 Gaming Plus WiFi Motherboard | ATX | Supports Intel® 14th/13th/12th Gen Core™ Processors | DDR5 Memory Boost 7200+MHz (OC) | PCIe 5.0 x16 | 4× M.2 Gen4 | 2.5G LAN | Wi-Fi 6E | 1-Year Warranty
Color: black

Description:

Description:

▸ SKU: 911-7E06-060
▸ Chipset: Intel® Z790
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® (LGA 1700)
▸ Memory: 4× DDR5 slots | Up to 256GB | Dual Channel | 4800–7200+MHz (OC) | Non-ECC, unbuffered | Supports Intel® XMP 3.0
▸ Audio: Realtek® ALC897 | 7.1-Channel High Definition Audio
▸ Storage: 4× M.2 (PCIe 4.0 / SATA) | 6× SATA 6Gb/s | Supports RAID 0/1/5/10 for SATA & NVMe
▸ LAN: Intel® 2.5Gbps LAN
▸ Wireless: Intel® Wi-Fi 6E | Bluetooth® 5.3
▸ Onboard Graphics: 1× HDMI™ 2.1 (4K@60Hz, HDR) | 1× DisplayPort 1.4 (4K@60Hz) — depends on CPU with iGPU
▸ Expansion Slots: 1× PCIe 5.0 x16 | 1× PCIe 4.0 x4 | 2× PCIe 3.0 x1
▸ USB Ports: Rear — 1× USB 3.2 Gen2x2 Type-C (20Gbps), 1× USB 3.2 Gen2 Type-A (10Gbps), 2× USB 3.2 Gen1 Type-A (5Gbps), 4× USB 2.0 | Front — 1× USB 10Gbps Type-C, 4× USB 5Gbps Type-A, 4× USB 2.0
▸ Internal I/O: ATX_PWR, 2× CPU_PWR, CPU Fan, Pump Fan, 6× System Fan, JFP, JCI, JAUD, JDASH, JRGB, 2× JARGB_V2, TPM 2.0 header, JTBT, JTBT_U4_1, USB 2.0 headers, USB 3.2 Gen1, USB 10Gbps Type-C
▸ LED Feature: 4× EZ Debug LED
▸ Back Panel Ports: HDMI™, DisplayPort, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, LAN, Wi-Fi Antenna, Audio Connectors, Flash BIOS Button
▸ Operating System: Windows® 11 / 10 (64-bit)
▸ PCB Form Factor: ATX (243.84mm × 304.8mm)
