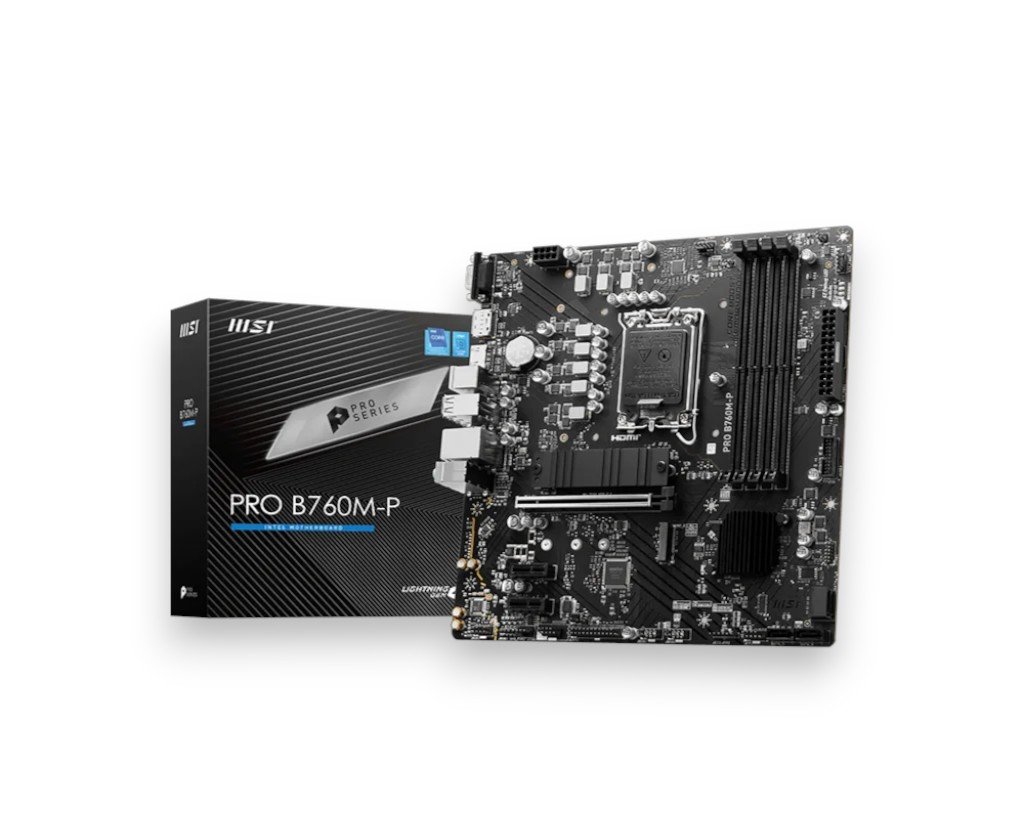

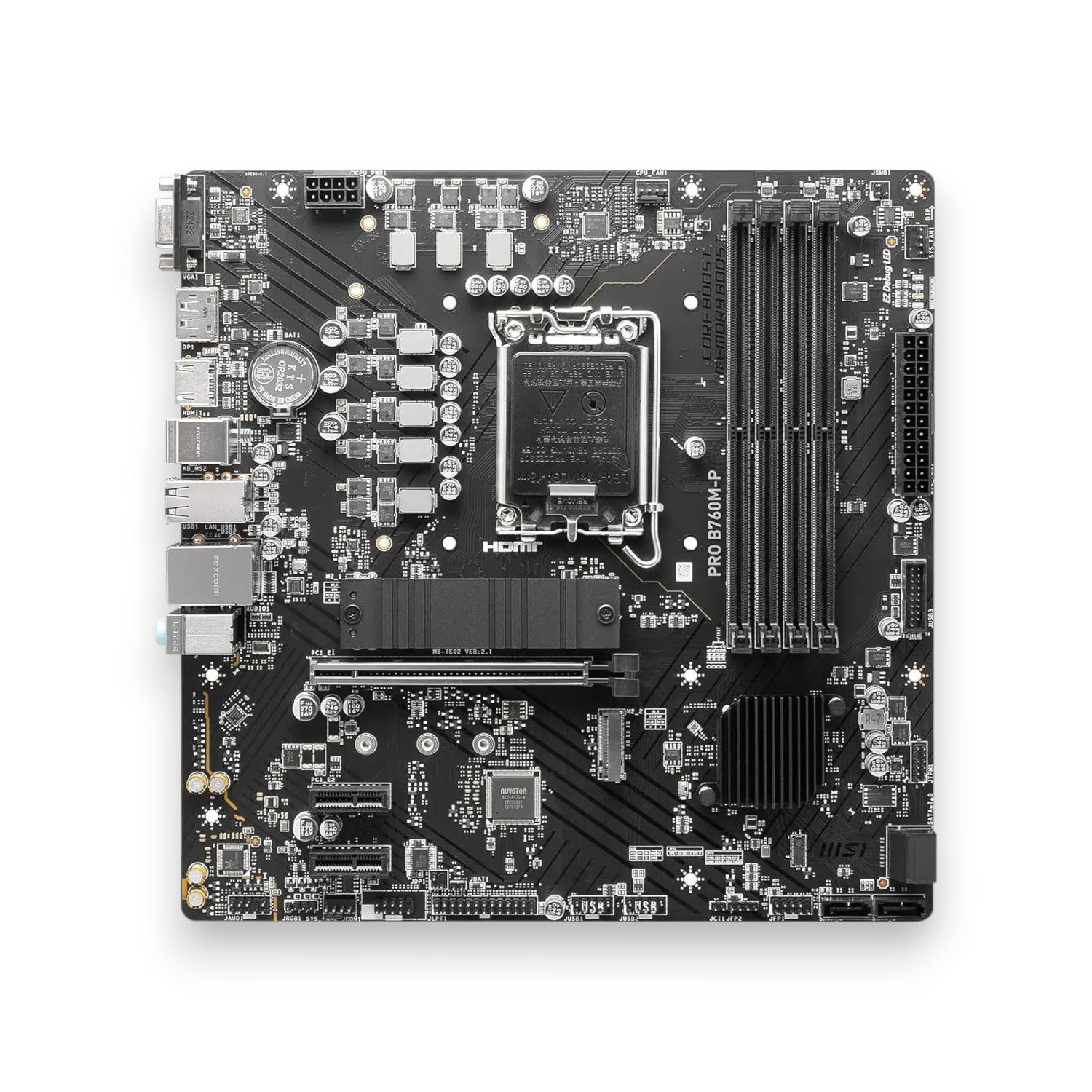

MSI PRO B760M-P Motherboard

Information:

MSI PRO B760M-P Motherboard | Micro-ATX | Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700) | DDR5 Memory Boost up to 6800+MHz (OC) | PCIe 4.0 x16 Slot | Dual M.2 Gen4 Slots | SATA 6Gb/s | USB 3.2 Gen2 Type-C | HDMI™, DisplayPort & VGA | 1Gb LAN | Audio Boost | 1-Year Warranty

Description:

Description:

▸ SKU: 911-7E02-030
▸ Chipset: Intel® B760
▸ CPU Support: Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700 Socket)
▸ Memory: 4× DDR5 DIMM Slots | Up to 192GB | Dual Channel | 4800–6800+MHz (OC) | Supports Intel® XMP 3.0 | Non-ECC, unbuffered
▸ Audio: Realtek® ALC897 | 7.1-Channel High Definition Audio | Audio Boost
▸ Storage: 2× M.2 PCIe 4.0 x4 / SATA (2242/2260/2280) | 4× SATA 6Gb/s | Supports RAID 0/1/5/10
▸ LAN: Realtek® RTL8111H Gigabit LAN (1Gbps)
▸ Wireless: –
▸ Onboard Graphics: 1× HDMI™ 1.4 (4K@30Hz) | 1× DisplayPort 1.4 (4K@60Hz) | 1× VGA (2048×1536@50Hz, 1920×1200@60Hz) — depends on CPU with iGPU
▸ Expansion Slots: 1× PCIe 4.0 x16 (CPU) | 2× PCIe 4.0 x1 (Chipset)
▸ USB Ports: Rear — 4× USB 2.0, 1× USB 3.2 Gen2 Type-C (10Gbps), 1× USB 3.2 Gen1 Type-A (5Gbps) | Front — 4× USB 2.0, 2× USB 3.2 Gen1 Type-A
▸ Internal I/O: ATX_PWR, CPU_PWR, CPU Fan, 2× System Fan, 2× Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), Printer Port (JLPT), COM (JCOM), RGB (JRGB), TPM 2.0 header, USB 2.0 header, USB 3.2 Gen1 header
▸ LED Feature: 4× EZ Debug LED
▸ Back Panel Ports: HDMI™, DisplayPort, VGA, PS/2 Combo, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C, 1Gb LAN, Audio Jacks
▸ Operating System: Windows® 11 / 10 (64-bit)
▸ PCB Form Factor: mATX (243.84mm × 243.84mm / 9.60″ × 9.60″)
