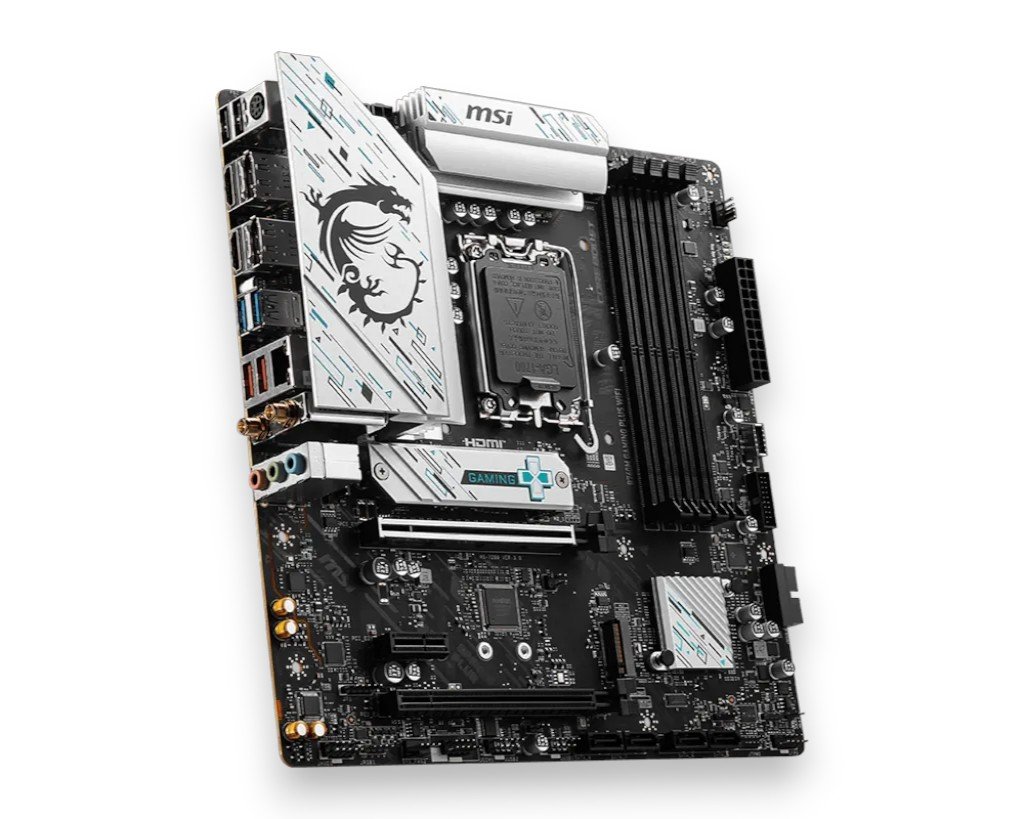

MSI B760M Gaming Plus WiFi

Information:

MSI B760M Gaming Plus WiFi Motherboard | mATX | Supports Intel® 12th/13th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700) | DDR5 Memory up to 6800+ MHz (OC) | PCIe 4.0 x16 | M.2 Slots | SATA 6Gb/s | 2.5Gb LAN | USB 3.2 Gen2 | Wi-Fi 6E | Realtek® ALC897 Audio | 1-Year Warranty

Description:

Description:

▸ SKU: 911-7D99-064
▸ Chipset: Intel® B760
▸ CPU Support: Intel® 12th/13th Gen Core™, Pentium® Gold, Celeron® Processors (LGA 1700)
▸ Memory: 4× DDR5 | Up to 192GB | Dual Channel | 6800+ MHz (OC) | Supports Intel® XMP 3.0 | Non-ECC, unbuffered
▸ Audio: Realtek® ALC897 | 7.1-Channel HD Audio | Audio Boost
▸ Storage: 2× M.2 (PCIe 4.0 x4 / SATA) | 4× SATA 6Gb/s | Supports RAID 0/1/5/10
▸ LAN: Realtek® RTL8125BG 2.5Gb LAN
▸ Wireless: Intel® Wi-Fi 6E + Bluetooth 5.3
▸ Onboard Graphics Outputs: 2× HDMI™ 2.1 (4K@60Hz) | 2× DisplayPort 1.4 (4K@60Hz) | VGA support depends on CPU iGPU
▸ Expansion Slots: 2× PCIe x16 (1× PCIe 4.0 x16, 1× PCIe 4.0 x4) | 1× PCIe x1
▸ USB Ports: Rear — USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0 | Front — USB 3.2 Gen2 Type-A, USB 3.2 Gen1 Type-A, USB 3.2 Gen1 Type-C, USB 2.0
▸ Internal I/O: ATX_PWR, CPU_PWR, CPU Fan, Pump Fan, System Fans, Front Panel, Chassis Intrusion, Front Audio, COM, RGB/ARGB headers, TPM 2.0 header, USB headers
▸ LED Feature: 4× EZ Debug LED
▸ Back Panel Ports: Keyboard/Mouse, DisplayPort, HDMI™, USB 3.2 Gen1 5Gbps (Type-A), USB 3.2 Gen2 10Gbps (Type-A), USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors
▸ Operating System: Windows® 11 64-bit / Windows® 10 64-bit
▸ PCB Form Factor: mATX (243.84mm × 243.84mm)
