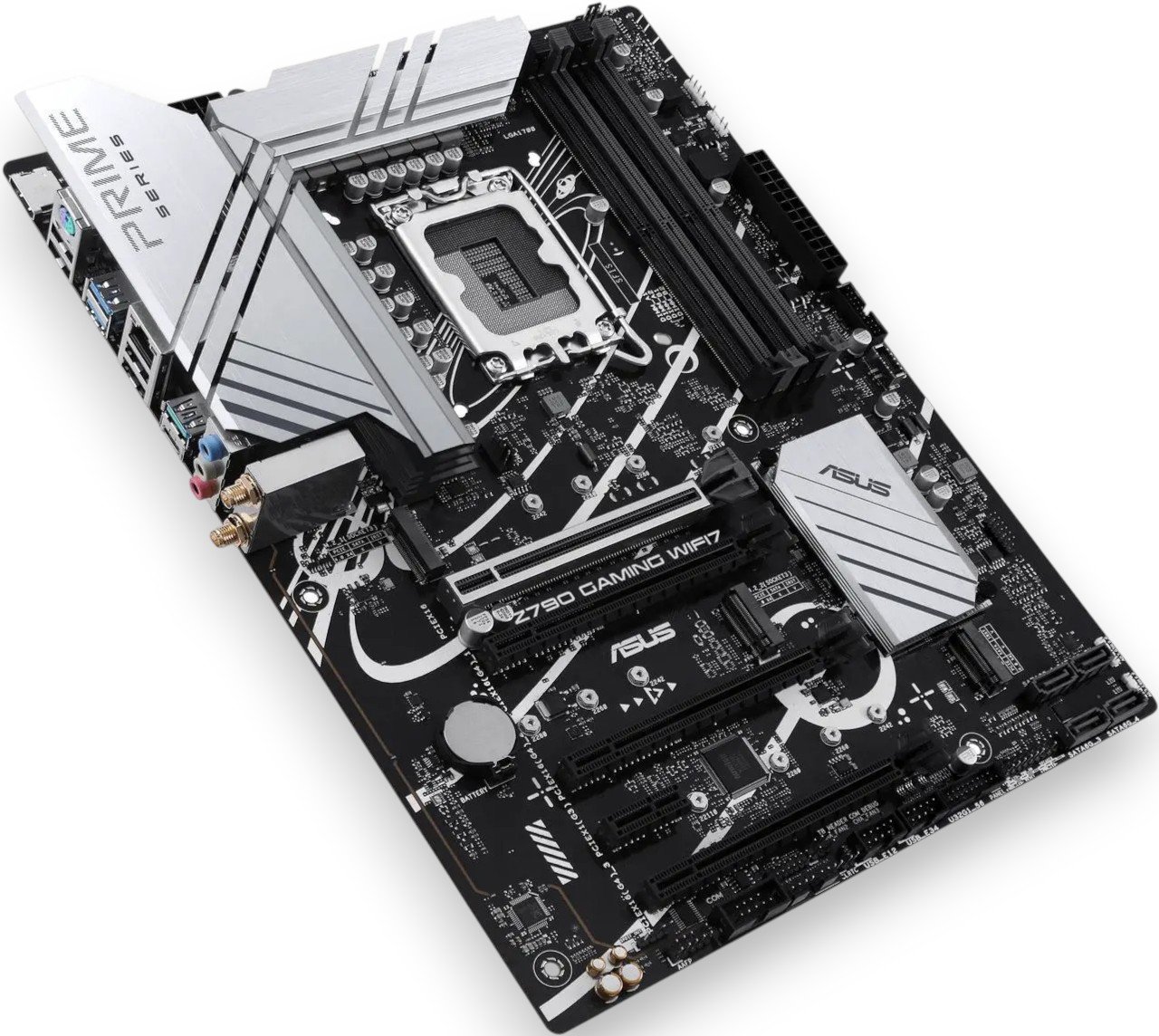

ASUS Z790 GAMING WIFI7 LGA 1700 ATX Motherboard

Information:

ASUS Z790 GAMING WIFI7 ATX Motherboard | LGA 1700 Socket | Supports Intel® 12th, 13th & 14th Gen Core™, Pentium® Gold, and Celeron® Processors | 14+1 DrMOS Power Design | DDR5 Memory up to 7200+ MHz (OC) | PCIe 5.0 x16 | 3× M.2 Slots | Wi-Fi 7 | Realtek 1Gb LAN | HDMI™ | USB 3.2 Gen2×2 Type-C | Thunderbolt USB4 | Aura RGB & Addressable Gen 2 Headers

Description:

SKU: 90MB1HY0-M0AAY0
📊 Specifications:

Brand / Model: ASUS Z790 GAMING WIFI7

Part Number: 90MB1HY0-M0AAY0

CPU Support: LGA 1700 for Intel® Core™ 14th & 13th Gen, 12th Gen, Pentium® Gold, Celeron®

Chipset: Intel Z790

Memory Slots: 4× DDR5 (288-pin) | Up to 192GB | Dual Channel | Supports XMP 3.0 & OptiMem II

Memory Speeds (OC): 4800–7200+ MHz

Expansion Slots: 1× PCIe 5.0 x16 | 3× PCIe 4.0 x16 (x4 mode) | 1× PCIe 3.0 x1

Storage: 3× M.2 slots (PCIe 4.0/ SATA) | 4× SATA 6Gb/s | RAID 0/1/5/10

Audio: Realtek 7.1 HD Audio CODEC | Jack-detection, Multi-streaming, Front Panel Jack-retasking | Up to 24-bit/192 kHz

LAN: Realtek 1Gb Ethernet | Wi-Fi 7 (2×2, 802.11be) | Bluetooth v5.4

Rear I/O Ports: USB 3.2 Gen2×2 Type-C, USB 3.2 Gen2 Type-A, 2× USB 3.2 Gen1, 4× USB 2.0, HDMI™, Realtek 1Gb LAN, Wi-Fi module, 3× Audio Jacks, PS/2 Keyboard/Mouse

Internal Connectors: 1× 24-pin Main Power, 1× 8-pin +12V, 1× 4-pin +12V, 1× CPU Fan, 1× CPU OPT Fan, 1× AIO Pump, 3× Chassis Fans, 3× M.2, 4× SATA, USB headers, Aura RGB, Addressable Gen 2, Thunderbolt USB4, Clear CMOS, COM, Front Panel Audio, TPM, System Panel

Form Factor: ATX | Dimensions: 30.5 × 23.4 cm (12 × 9.2 in)

Operating System: Windows® 11 / Windows® 10 64-bit

💡 Features:

ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O

ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core

ASUS Thermal Solution: Large VRM heatsinks, PCH heatsink, hybrid fan headers, Fan Xpert 4 with AI Cooling II

Aura Sync RGB: Aura RGB header + 3× Addressable Gen 2 headers

ASUS EZ DIY: ProCool, CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode

Exclusive Software: Armoury Crate (Aura Sync, Fan Xpert 4, AI Cooling II, Power Saving, AI Noise Cancelation), AI Suite 3 (TurboV EVO, PC Cleaner, DIGI+ VRM), ASUS CPU-Z, MyASUS, Norton 360 (60-day trial), WinRAR
