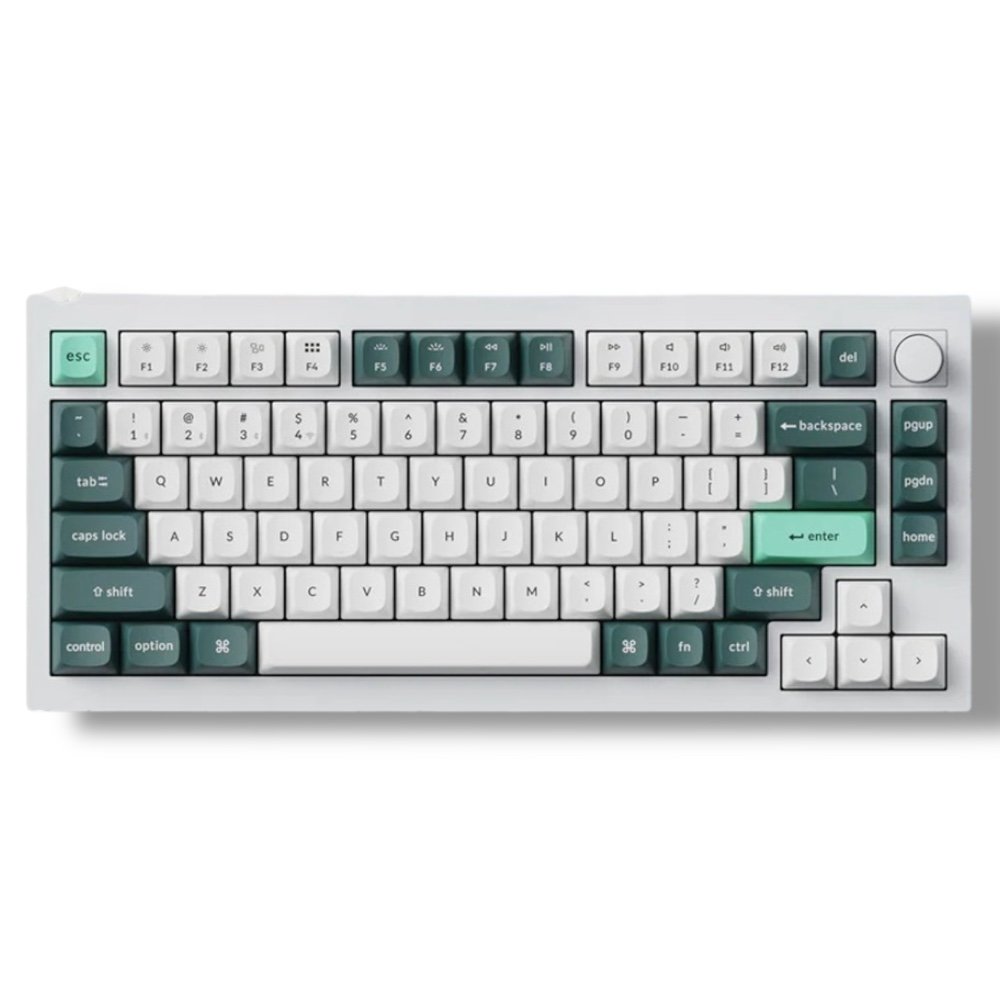

Keychron Q1 HE QMK Wireless Custom Keyboard – 75% Layout

Information:

Keychron Q1 HE QMK Wireless Custom Keyboard – 75% Layout | Hall Effect Gateron Magnetic Switches | 1000Hz | Dynamic Rapid Trigger | OSA PBT Keycaps | SHELL WHITE

Description:

•	SKU: Q1H-P1
	•	Model: Keychron Q1 HE (Hall Effect Edition)
	•	Layout: 75%
	•	Body Material: CNC Aluminum (6063)
	•	Plate: Aluminum
	•	Weight: 1735g ± 10g (Fully Assembled)
	•	Keycaps: OSA Profile PBT, Double-shot
	•	Switch Type: Gateron Double-Rail Hall Effect Magnetic Switch
	•	Hot-Swap Support: Yes (Magnetic switches only)
	•	Backlight: South-Facing RGB

⸻

▸ Performance
	•	Polling Rate:
	•	1000Hz (Wired + 2.4 GHz)
	•	90Hz (Bluetooth)
	•	Rapid Trigger: Yes
	•	Adjustable Actuation: 0.2mm – 3.8mm
	•	Dynamic Keystrokes: 4-in-1 multi-action keys
	•	Sensitivity: 0.1mm
	•	MCU: ARM Cortex-M4 STM32F402RC (256KB Flash)
	•	NKRO: Supported in Wired & Wireless

⸻

▸ Connectivity
	•	Modes: USB-C Wired / 2.4 GHz Wireless / Bluetooth 5.1
	•	Bluetooth Devices: Up to 3
	•	Bluetooth Name: Keychron Q1 HE
	•	Cables Included:
▸ Type-C cable (1.8m)
▸ Type-A to Type-C adapter

⸻

▸ Battery
	•	Capacity: 4000 mAh Li-polymer
	•	Wireless Usage (Backlight Off): Up to 100 hours
	•	Operating Temperature: -10°C to 50°C

⸻

▸ Dimensions
	•	Width: 145 mm
	•	Length: 327.5 mm
	•	Front Height: 22.6 mm (without keycaps)
	•	Back Height: 35.8 mm (without keycaps)
	•	Feet Height: 2.4 mm
	•	Typing Angle: 5.2°
