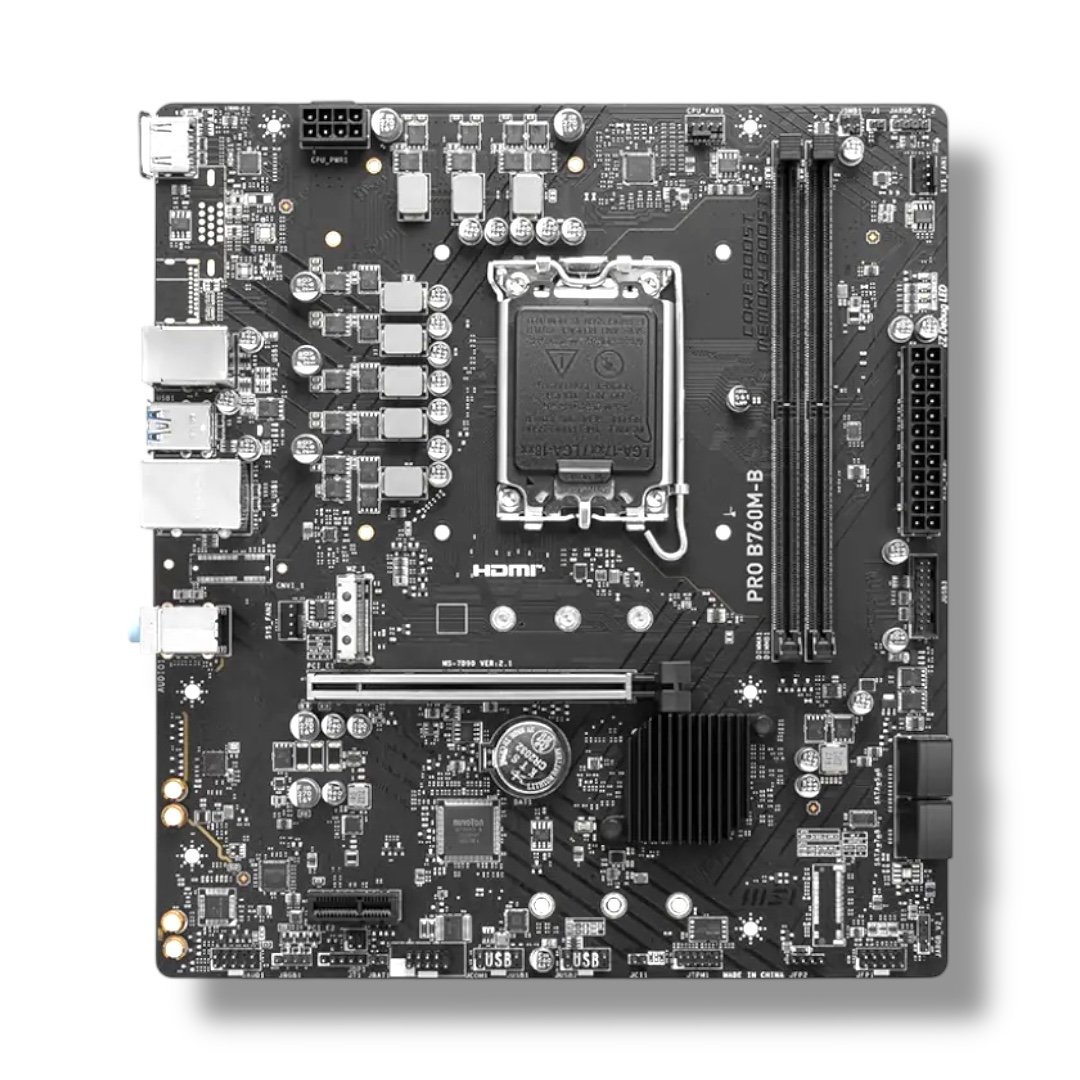

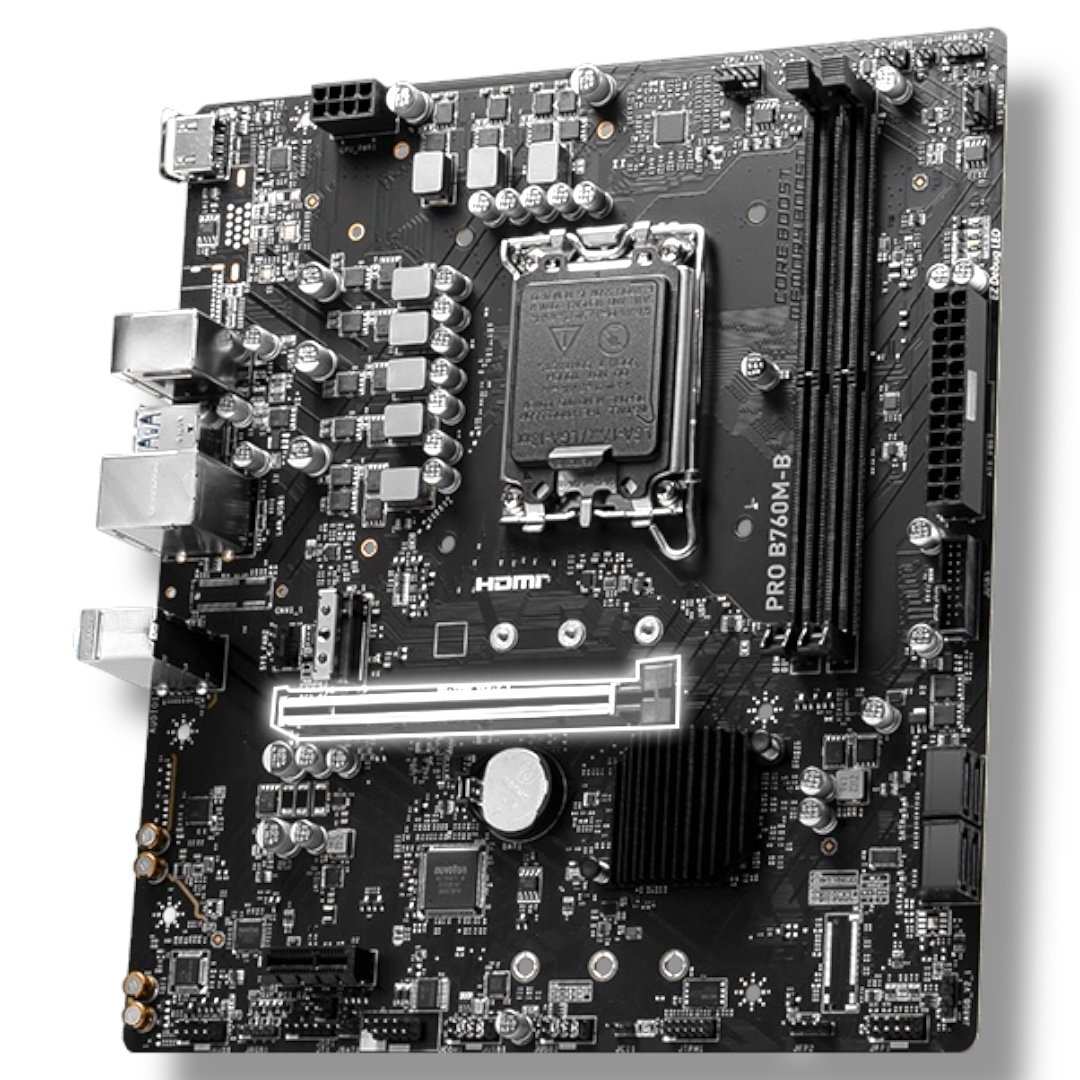

MSI PRO B760M-B DDR5 mATX Motherboard

Information:

MSI PRO B760M-B DDR5 mATX Motherboard – LGA1700, DDR5 6400+MHz, PCIe 4.0, 2.5G LAN

Description:

▸ SKU: 911-7D90-054
▸ Model: MSI PRO B760M-B DDR5
▸ Chipset: Intel® B760
▸ CPU Socket: LGA 1700
▸ CPU Support: Intel® 14th / 13th / 12th Gen, Pentium® Gold, Celeron®

▸ Memory Support:
– 2× DDR5 DIMM, up to 128GB
– DDR5 6400+ MHz (OC) / 4800–5600 MHz (JEDEC)
– Dual-Channel, non-ECC, Intel® XMP 3.0

▸ Expansion Slots:
– 1× PCIe 4.0 x16 (Steel Armor)
– 1× PCIe x1

▸ Storage:
– 1× M.2 PCIe 4.0 x4 (2280 / 2260 / 2242)
– 4× SATA 6Gb/s
– RAID 0 / 1 / 5 / 10 (SATA)

▸ Graphics Output:
– 1× HDMI™ 2.1 (4K @ 60Hz, HDR)

▸ Networking:
– Realtek® RTL8125B 2.5G LAN

▸ Audio:
– Realtek® ALC897
– 7.1-Channel High Definition Audio (Audio Boost)

▸ USB Ports:
– Rear: 2× USB 2.0, 4× USB 3.2 Gen1 (5Gbps)
– Front: 4× USB 2.0, 2× USB 3.2 Gen1

▸ Internal I/O:
– ATX 24-pin + CPU 8-pin power
– 1× CPU Fan, 2× System Fan
– RGB: 2× ARGB (JARGB V2), 1× RGB
– TPM 2.0 header, Front Panel, Audio, COM

▸ Form Factor: mATX
▸ Dimensions: 220 × 243.84 mm
▸ OS Support: Windows® 11 / Windows® 10 (64-bit)
▸ Warranty: 1 Year
