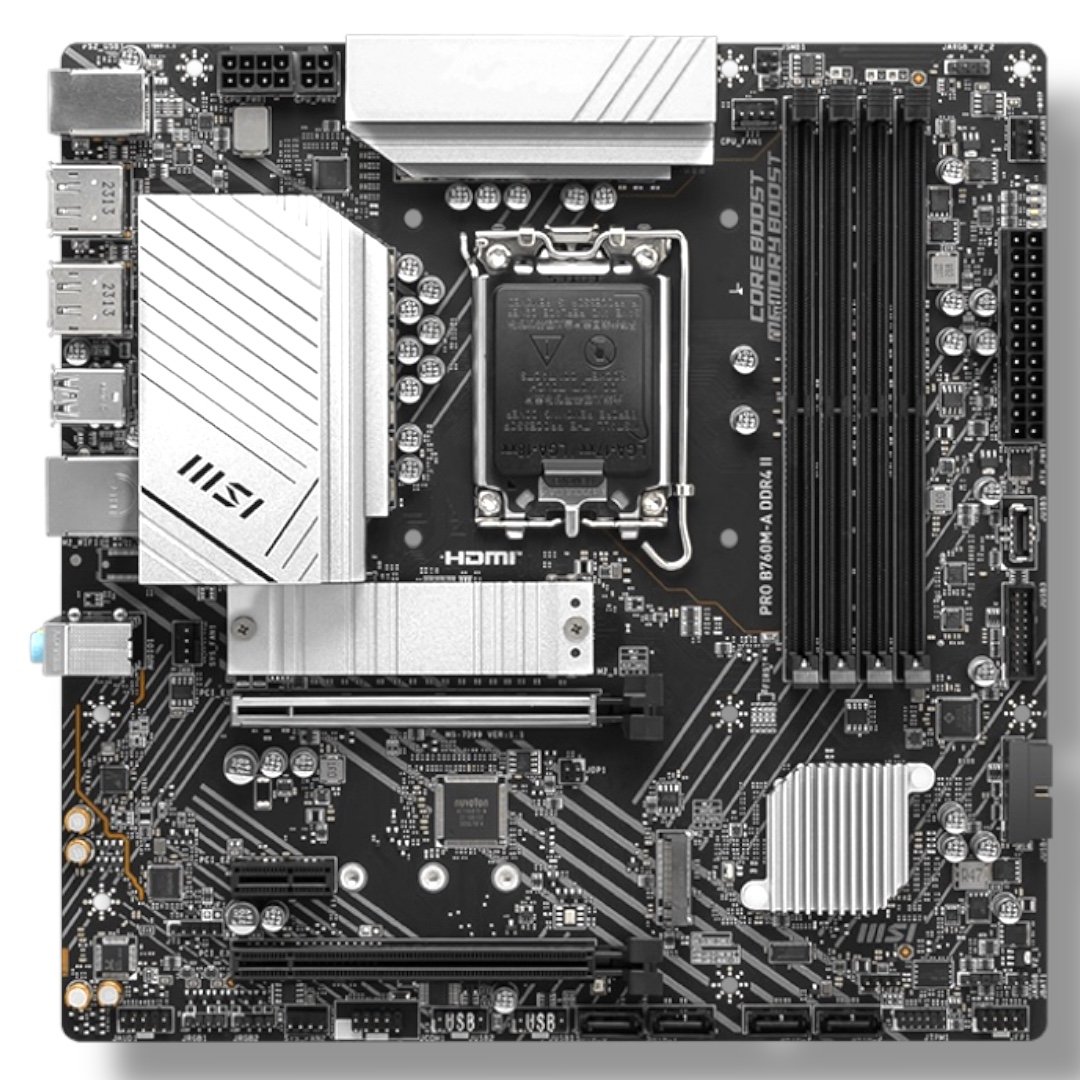

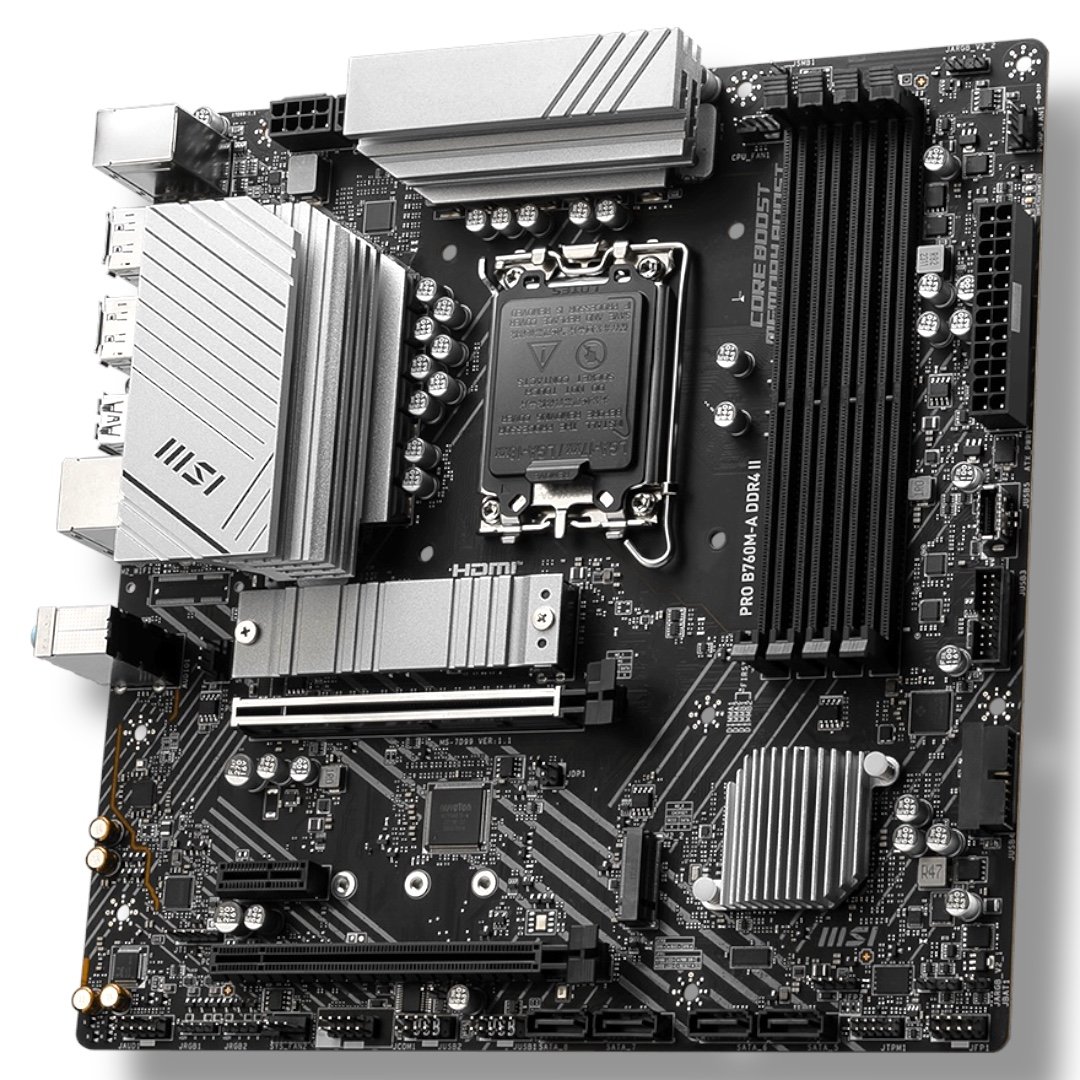

MSI PRO B760M-A WIFI DDR4 II mATX Motherboard

Information:

MSI PRO B760M-A WIFI DDR4 II mATX Motherboard – LGA1700, DDR4 5333+ OC, PCIe 4.0, Dual M.2 Gen4, Wi-Fi 6E, 2.5G LAN

Description:

▸ SKU: 911-7D99-063
▸ Chipset: Intel® B760
▸ Socket: LGA 1700
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron®
▸ Memory: 4× DDR4 DIMM, up to 128GB, Dual-Channel, Non-ECC, Unbuffered
▸ Memory Speed: DDR4 5333+ MHz (OC), Intel® XMP
▸ Graphics Output: HDMI™ 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz)
▸ Expansion Slots:
  • 2× PCIe 4.0 x16
  • 1× PCIe 3.0 x1
▸ Storage:
  • 2× M.2 PCIe 4.0 x4 (2242 / 2260 / 2280) with Shield FROZR
  • 4× SATA 6Gb/s
▸ RAID Support: RAID 0 / 1 / 5 / 10
▸ Audio: Realtek® ALC897, 7.1-Channel HD Audio
▸ Networking: Realtek® RTL8125BG 2.5G LAN
▸ Wireless: Intel® Wi-Fi 6E + Bluetooth® 5.3
▸ USB (Rear): 2× USB 3.2 Gen2 (10Gbps), 2× USB 3.2 Gen1 (5Gbps), 2× USB 2.0
▸ USB (Front): USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, USB 2.0
▸ Cooling Features: Extended Heatsink, 7W/mK Thermal Pads, Frozr AI Cooling, EZ Debug LED
▸ PCB: 6-Layer PCB, 2oz Copper
▸ Form Factor: mATX (243.84 × 243.84 mm)
▸ Operating System: Windows® 11 / Windows® 10 64-bit
