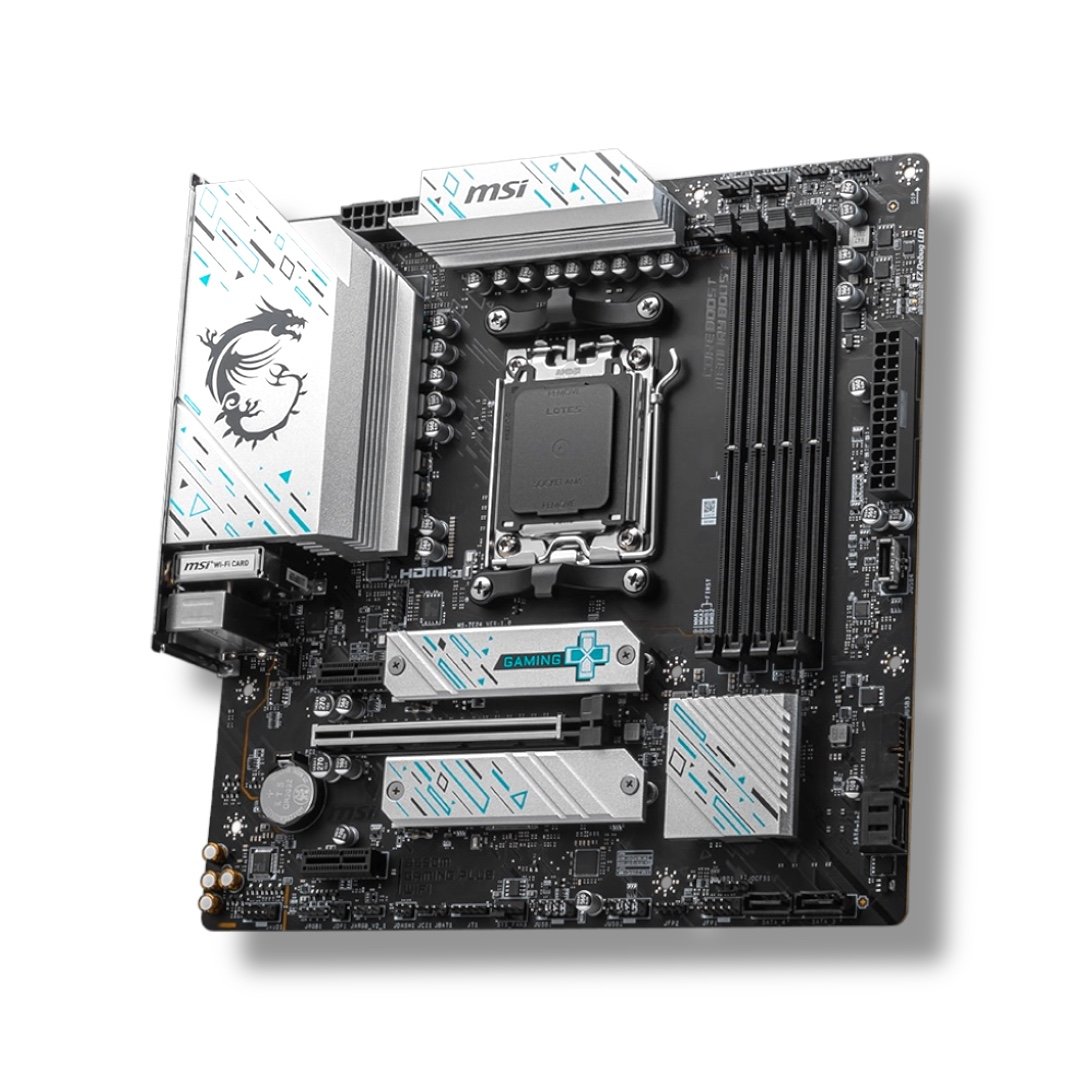

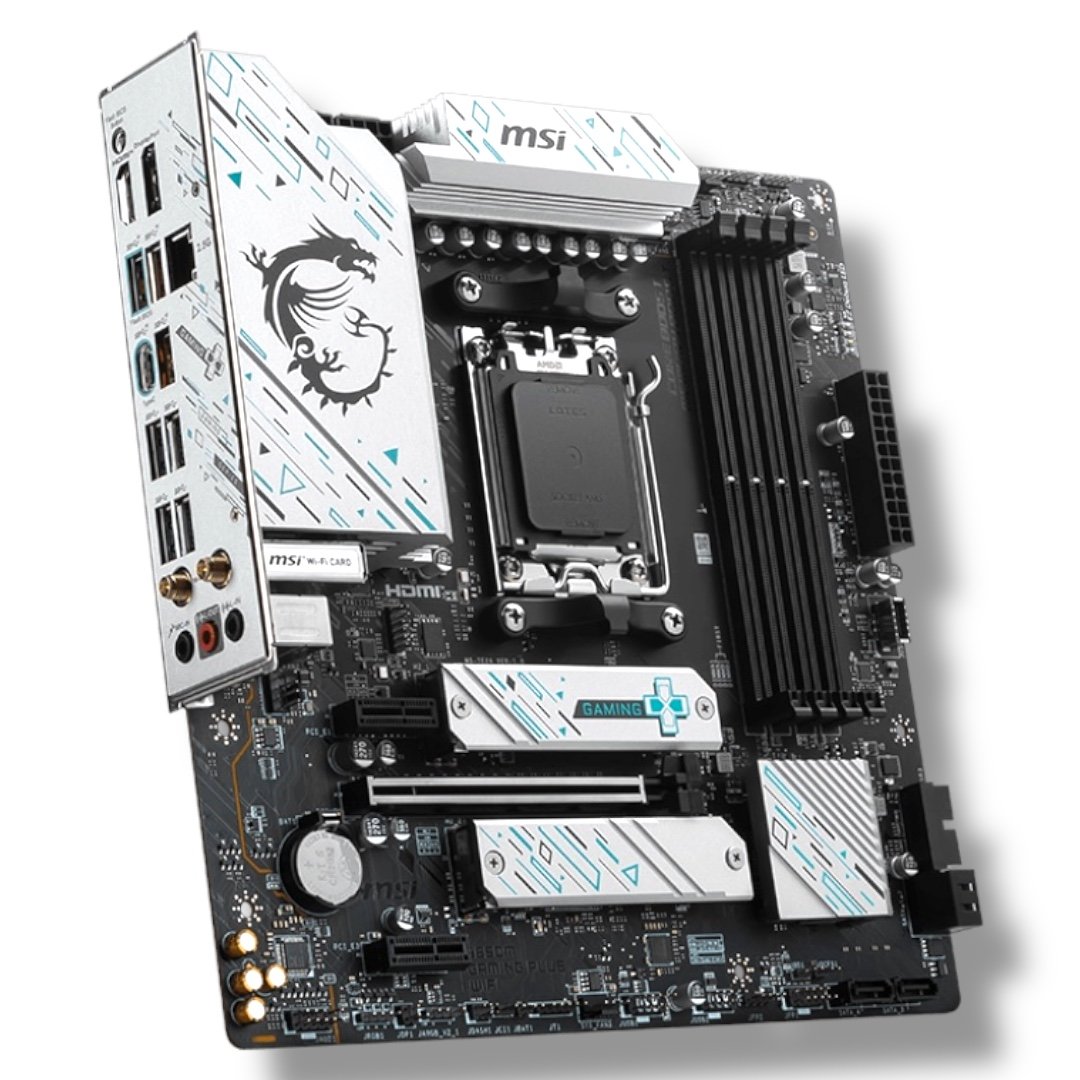

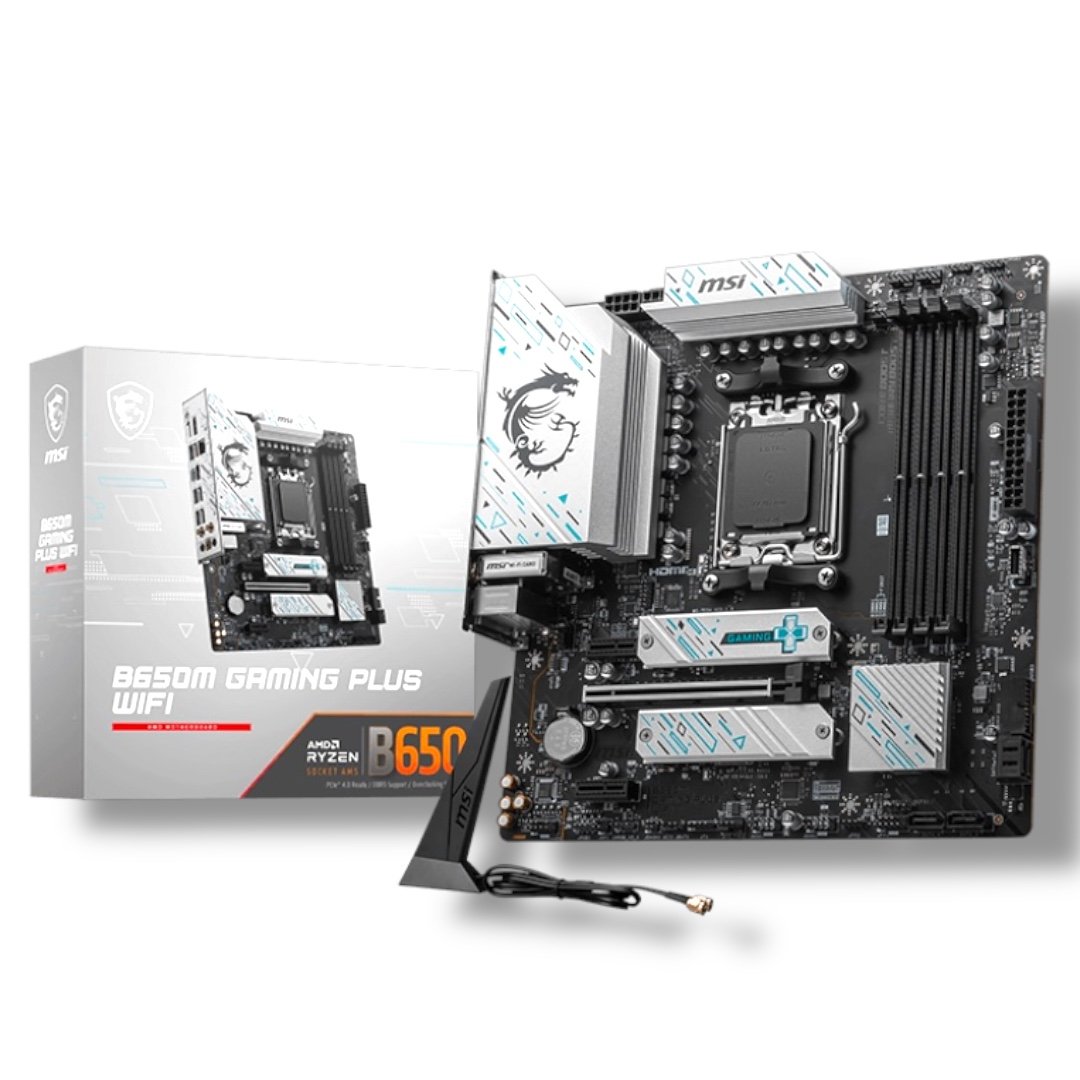

MSI B650M Gaming Plus WiFi AM5 mATX Motherboard

Information:

MSI B650M Gaming Plus WiFi AM5 mATX Motherboard – Ryzen 9000 / 8000 / 7000 Series Support

Description:

▸ SKU: 911-7E24-013
▸ Chipset: AMD B650
▸ Socket: AM5
▸ CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
▸ Form Factor: Micro-ATX (243.84 × 243.84 mm)
▸ Memory:
  • 4× DDR5 DIMM, up to 256GB
  • Dual-Channel, Non-ECC, Unbuffered
  • AMD EXPO™ Support
▸ Memory Speeds (OC):
  7200+ / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 (JEDEC) MHz
▸ Graphics Outputs:
  • 1× HDMI™ 2.1 (4K@60Hz)
  • 1× DisplayPort 1.4 (4K@60Hz)
▸ Expansion Slots:
  • 1× PCIe 4.0 x16 (Steel Armor)
  • 2× PCIe 3.0 x1
▸ Storage:
  • 2× M.2 (PCIe 4.0 x4)
  • 4× SATA 6Gb/s
▸ RAID Support: RAID 0 / 1 / 10 (SATA); RAID 0 / 1 (NVMe)
▸ Networking:
  • Realtek® RTL8125BG 2.5G LAN
  • Wi-Fi 6E + Bluetooth® 5.3
▸ Audio: Realtek® ALC897, 7.1-Channel HD Audio (Isolated Structure)
▸ USB Ports (Rear):
  • 1× USB 10Gbps Type-C
  • 3× USB 10Gbps Type-A
  • 4× USB 5Gbps Type-A
▸ USB Ports (Front):
  • 1× USB 10Gbps Type-C header
  • 2× USB 5Gbps Type-A
  • 4× USB 2.0
▸ Internal Headers:
  ATX_PWR, 2× CPU_PWR (8-pin), CPU Fan, Pump Fan (3A), 3× System Fan, 2× JFP, JAUD,
  2× JARGB_V2, 2× JRGB, TPM 2.0, JCI, JDASH
▸ Cooling Support: Dual M.2 Shield Frozr, VRM Heatsink, 7W/mK Pads
▸ Features: Flash BIOS Button, Resizable BAR, Latency Killer BIOS
▸ Operating System: Windows® 11 / 10 (64-bit)
