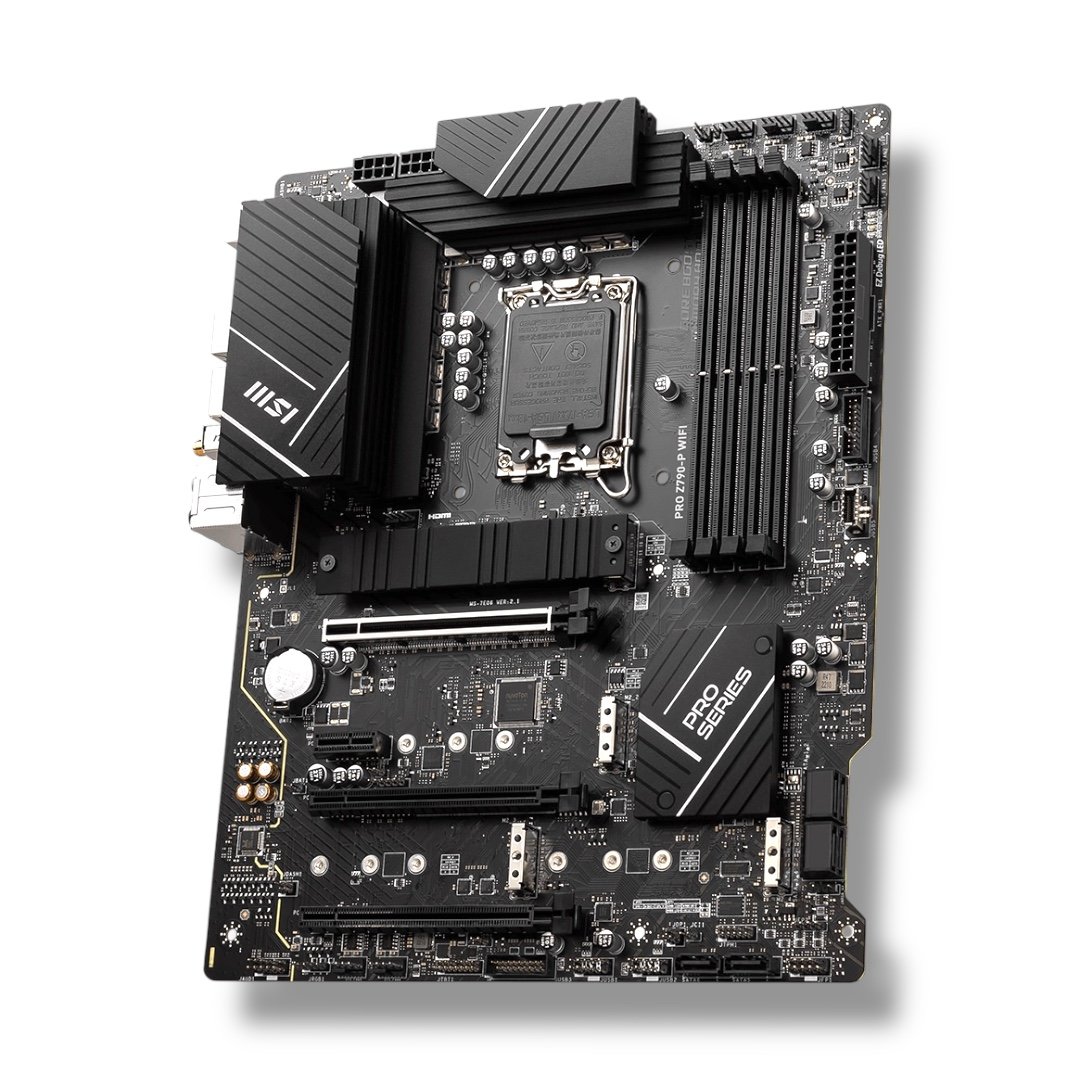

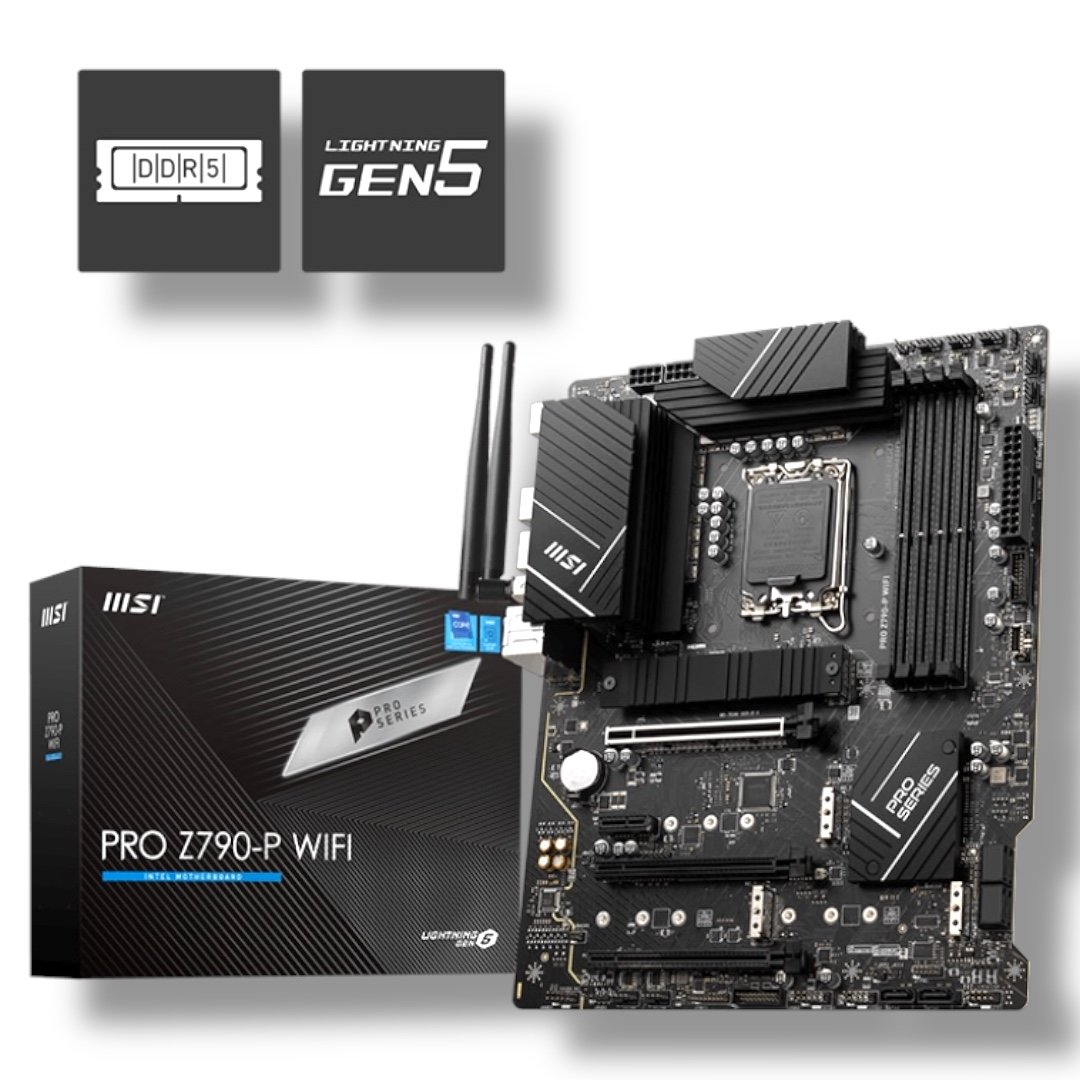

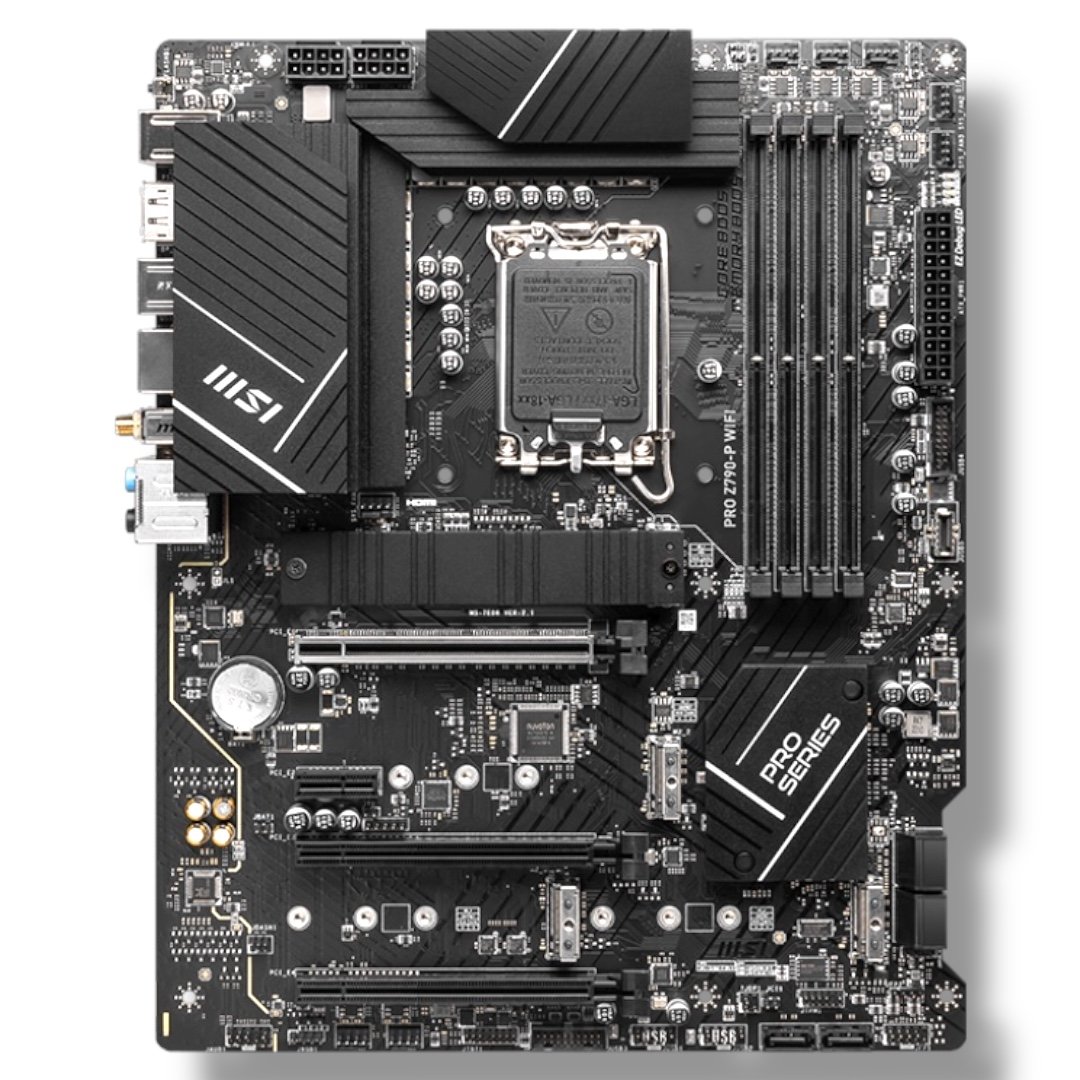

MSI PRO Z790-P WiFi DDR5 Motherboard

Information:

MSI PRO Z790-P WiFi Motherboard – Intel 14th / 13th / 12th Gen Support (DDR5)

Description:

▸ SKU: 911-7E06-093
▸ Chipset: Intel® Z790
▸ Socket: LGA 1700
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron®
▸ Form Factor: ATX (243.84 × 304.8 mm)
▸ Memory:
  • 4× DDR5 DIMM, up to 192GB
  • Dual-Channel, Non-ECC, Unbuffered
  • Intel® XMP 3.0 Support
▸ Memory Speeds (OC):
  7000+ / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz
▸ Graphics Outputs:
  • 1× HDMI™ 2.1 (4K@60Hz)
  • 1× DisplayPort 1.4 (4K@60Hz)
▸ Expansion Slots:
  • 1× PCIe 5.0 x16 (Steel Armor)
  • 1× PCIe 4.0 x16 (x4 mode)
  • 1× PCIe 3.0 x16 (x1 mode)
  • 1× PCIe 3.0 x1
▸ Storage:
  • 4× M.2 (PCIe 4.0 x4)
  • 6× SATA 6Gb/s
▸ RAID Support: RAID 0 / 1 / 5 / 10 (SATA & NVMe)
▸ Networking:
  • Intel® 2.5Gbps LAN
  • Intel® Wi-Fi 6E + Bluetooth® 5.3
▸ Audio: Realtek® ALC897, 7.1-Channel HD Audio
▸ USB Ports (Rear):
  • 1× USB 20Gbps Type-C
  • 1× USB 10Gbps Type-A
  • 2× USB 5Gbps Type-A
  • 4× USB 2.0
▸ USB Ports (Front):
  • 1× USB 10Gbps Type-C header
  • 2× USB 5Gbps Type-A
  • 4× USB 2.0
▸ Internal Headers:
  24-pin ATX, 2× 8-pin CPU, CPU Fan, Pump Fan, 6× System Fan, 2× JARGB_V2,
  2× JRGB, TPM 2.0, Front Audio, TBT Connector, Flash BIOS Button
▸ Operating System: Windows® 11 / 10 (64-bit)
▸ Warranty: 1 Year Limited Warranty
