MSI MPG X870E EDGE TI WiFi White ATX Motherboard – AMD Ryzen 9000 / 8000 / 7000 Series Support | DDR5 8400+ MHz

Information:

Built for enthusiasts who want premium AMD AM5 performance wrapped in a stunning white aesthetic, the MSI MPG X870E EDGE TI WiFi delivers cutting-edge connectivity, PCIe 5.0 expansion, ultra-fast DDR5 memory support, AI-powered optimization, and advanced thermal engineering for next-generation gaming and content creation.

Description:

▸ Model: MSI MPG X870E EDGE TI WIFI
▸ Chipset: AMD X870E
▸ Socket: AM5
▸ CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
▸ Form Factor: ATX (243.84×304.8mm)
▸ Memory: 4× DDR5 DIMM Slots
▸ Maximum Memory: 256GB
▸ Memory Speed: Up To DDR5 8400+ MT/s (OC)
▸ Memory Technologies: AMD EXPO™, Memory Boost, Latency Killer Mode
▸ Power Design: 14+2+1 Duet Rail Power System, 80A SPS
▸ CPU Power Connectors: Dual 8-Pin EPS
▸ PCIe Slots: 1× PCIe 5.0 x16, 1× PCIe 4.0 x16, 1× PCIe 3.0 x1
▸ Storage: 2× M.2 Gen5 x4, 2× M.2 Gen4 x4, 4× SATA 6Gb/s
▸ RAID Support: RAID 0/1/5/10
▸ Ethernet: Realtek 5G LAN
▸ Wireless: Wi-Fi 7 (6GHz, Up To 5.8Gbps)
▸ Bluetooth: Bluetooth® 5.4
▸ Rear USB: 2× USB4 40Gbps Type-C, 5× USB 10Gbps Type-A, 1× USB 10Gbps Type-C, 4× USB 2.0
▸ Front USB: 4× USB 5Gbps Type-A, 1× USB 20Gbps Type-C, 4× USB 2.0
▸ Audio: Realtek ALC4080, 7.1-Channel Audio, Optical S/PDIF
▸ Cooling Features: Extended Heatsinks, Heat-Pipe, M.2 Shield Frozr II, AI Cooling
▸ Fan Headers: 1× CPU Fan, 1× Combo Fan, 6× System Fan Headers
▸ RGB Headers: 3× ARGB V2, 1× RGB
▸ Video Output: HDMI 2.1 (Up To 8K@60Hz)

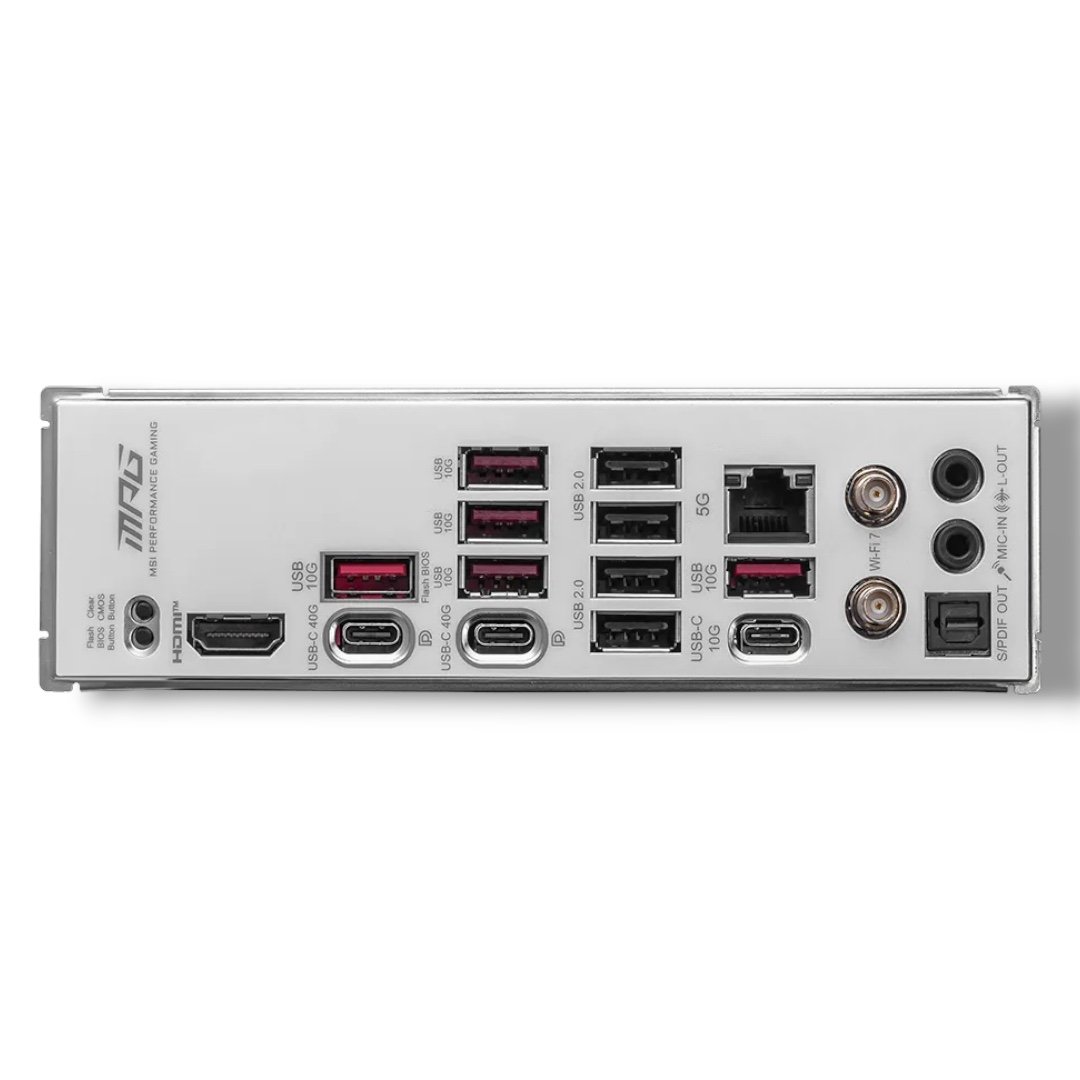

▸ Rear Panel Features: Clear CMOS, Flash BIOS Button, USB4, 5G LAN, Wi-Fi Antenna Connectors
▸ Operating System: Windows 11 64-bit
▸ Software: MSI Center, Mystic Light, Norton 360 Trial, AIDA64 Extreme Trial
