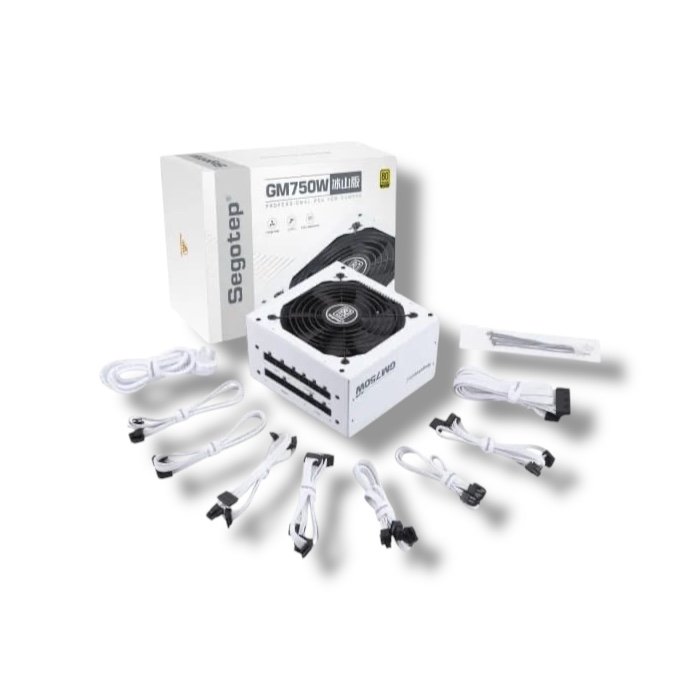

Segotep 750W Power Supply PSU

Properties:

SKU:GM750W-ATX-3.0-WH
📍Description

▸ Type:  ATX12V V2.4, Dimensions: 150x140x86mm (W x L x H)
 ▸ Output Capacity:  750W
 ▸ Efficiency Rating:  80 PLUS Gold (91.8% at typical load)
 ▸ Form Factor:  ATX, ATX12V
 ▸ Cable Design:  Full Modular
 ▸ Cooling:  120mm Hypro Bearing Fan
 ▸...

SKU:GM750W-ATX-3.0-WH
📍Description

▸ Type:  ATX12V V2.4, Dimensions: 150x140x86mm (W x L x H)
 ▸ Output Capacity:  750W
 ▸ Efficiency Rating:  80 PLUS Gold (91.8% at typical load)
 ▸ Form Factor:  ATX, ATX12V
 ▸ Cable Design:  Full Modular
 ▸ Cooling:  120mm Hypro Bearing Fan
 ▸ Topology:  Active PFC + Full Bridge SRC LLC + DC to DC
 ▸ Operating Temperature:  0-40°C
 ▸ MTBF:  100,000 hours

 ▸ Connectors:
  • 1x 20+4-Pin ATX
  • 2x 4+4-Pin EPS CPU
  • 3x 6+2-Pin PCIe
  • 6x 15-Pin SATA
  • 3x 4-Pin Molex

 ▸ Cable Lengths:
  • PCIe: 500mm
  • SATA: 450mm – 690mm
  • ATX: 550mm
  • EPS: 610mm

 ▸ Electrical:
  • +12V Rail: Single (750W, 62.5A)
  • AC Input: 100–240VAC, 50/60Hz at 10A

 ▸ Protections:  OCP, OPP, OTP, OVP, SCP, UVP

 ▸ Certifications:  TUV, CCC, CE, FCC, UKCA, EAC, BIS, RCM, CAN, ICES, ErP
