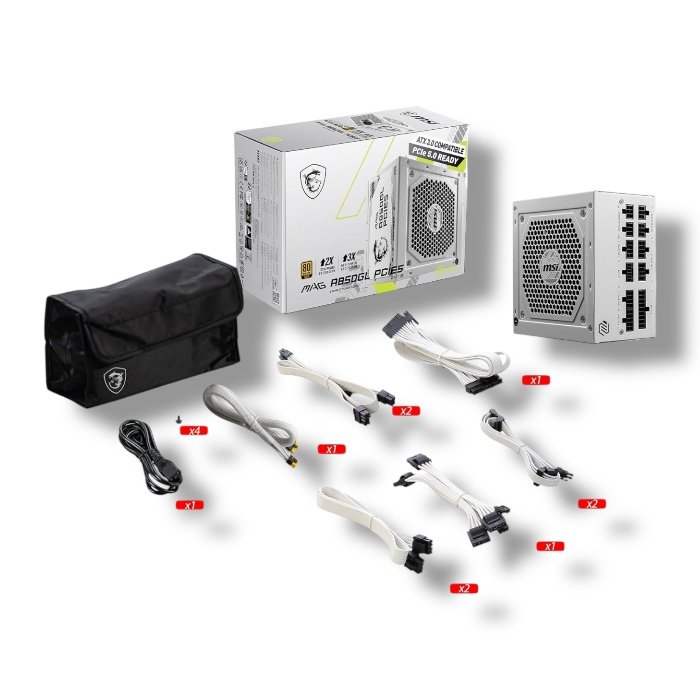

MSI MAG 850W Power Supply PSU
Properties:
SKU: 306-7ZP8A24-CE0 📍Description ▸ Type: ATX12V V3.1 ▸ Output Capacity: 850W ▸ Efficiency Rating: 80 PLUS Gold Certified ▸ Form Factor: ATX ▸ Modularity: Full Modular ▸ Compact Size: 150 x 140 x 86 mm ▸ Cooling System: ▸ 120mm FDB (Fluid Dynamic Bearing...
SKU: 306-7ZP8A24-CE0 📍Description ▸ Type: ATX12V V3.1 ▸ Output Capacity: 850W ▸ Efficiency Rating: 80 PLUS Gold Certified ▸ Form Factor: ATX ▸ Modularity: Full Modular ▸ Compact Size: 150 x 140 x 86 mm ▸ Cooling System: ▸ 120mm FDB (Fluid Dynamic Bearing) Fan ▸ Intelligent Speed Control for Optimal Cooling ▸ High-Quality Components: ▸ Japanese Bulk Capacitor for Enhanced Reliability ▸ Performance & Stability: ▸ Efficiency ≥90% at 50% Load ▸ Hold Up Time ≥16ms (80% Load) ▸ Power Good Signal: 100-150ms ▸ MTBF: 100,000 Hours ▸ Safety & Protection: ▸ OPP (Over Power Protection) ▸ OVP (Over Voltage Protection) ▸ SCP (Short Circuit Protection) ▸ OTP (Over Temperature Protection) ▸ OCP (Over Current Protection) ▸ UVP (Under Voltage Protection) ▸ SIP (Surge & Inrush Protection) ▸ NLO (No Load Operation) ▸ Regulatory Compliance: ▸ CE, FCC, CCC, cTUVus, RCM, EAC, BIS, TUV-RH ▸ ErP 2014 Compliant ▸ Connectors: ▸ 1x 20+4-Pin ATX ▸ 2x 8-Pin (4+4) EPS CPU ▸ 3x 6+2-Pin PCIe ▸ 1x 16-Pin PCIe 5.0 (12V-2×6) ▸ 2x SATA + 1x 4-Pin Molex A powerful and efficient PSU with a compact design, full modular cables, and stable power delivery for high-performance systems!
