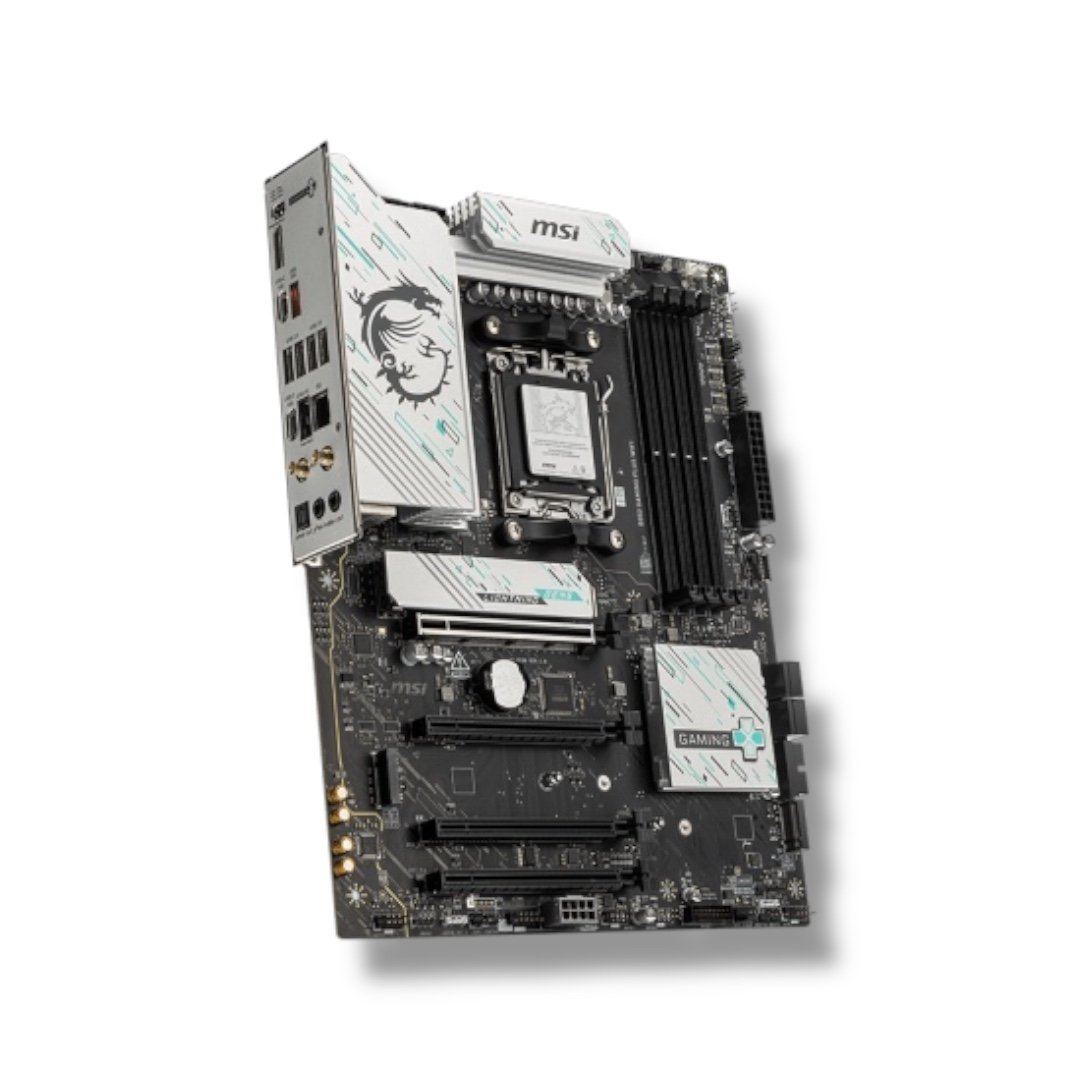

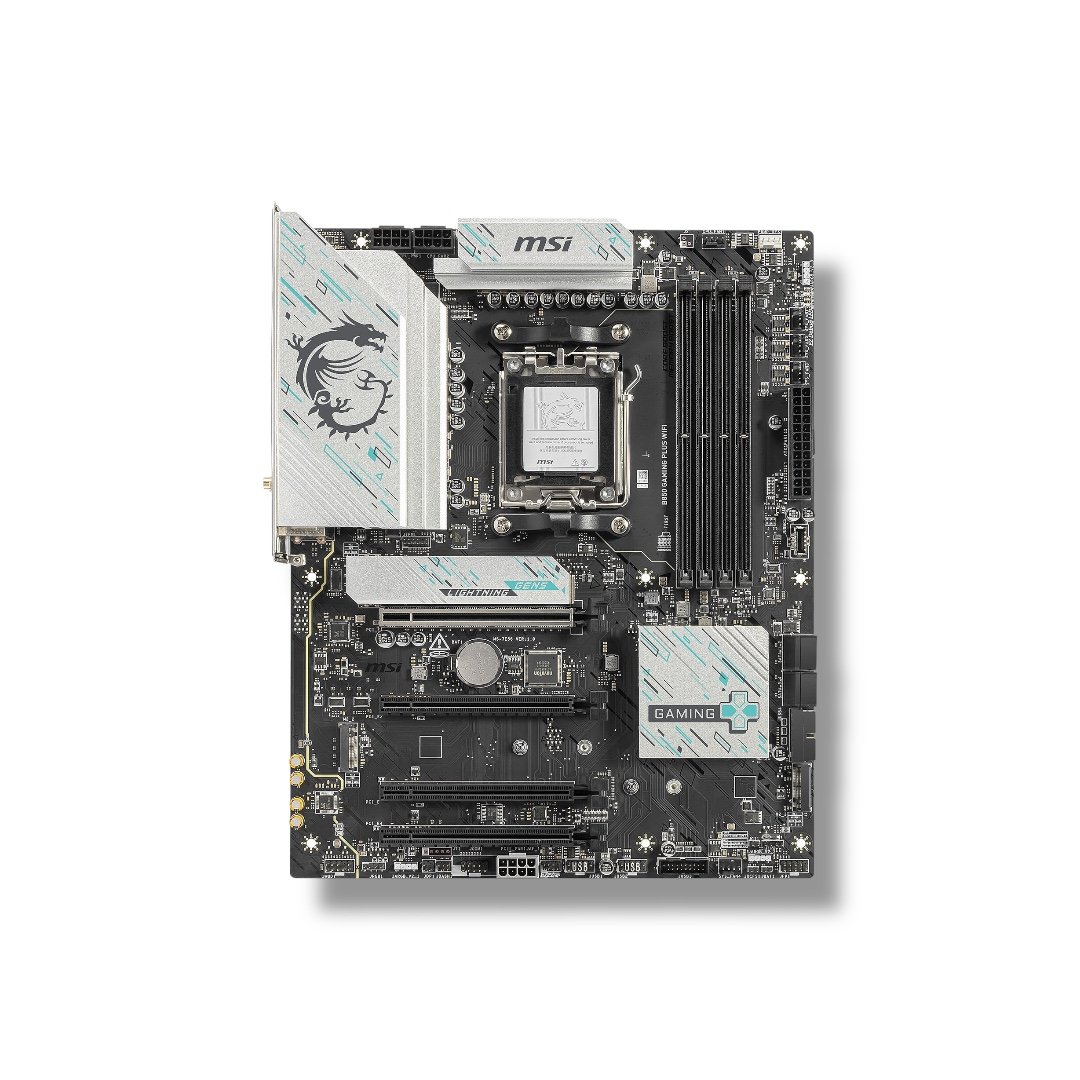

MSI B850 Gaming Plus WiFi – ATX Motherboard

Information:

AM5 | DDR5 | Wi-Fi 7 | PCIe 5.0 | 5G LAN | RGB Sync | DDR5 Support up to 192GB

Description:

SKU: 911-7E56-001
📍Description

Features
✔ AM5 Socket – Full support for AMD Ryzen™ 9000 / 8000 / 7000 Series
 ✔ Wi-Fi 7 + 5G LAN –  Ultra-fast wireless and wired connectivity with ultra-low latency
 ✔ PCIe 5.0 x16 Slot –  Steel Armor reinforced, ready for the next-gen GPUs
 ✔ DDR5 Support up to 192GB –  Optimized for EXPO and A-XMP memory profiles
 ✔ 12+2+1 Power Phases –  Stable power delivery and strong overclocking capability
 ✔ Lightning Gen 5 M.2 – Gen 5 & Gen 4 support for NVMe SSDs
 ✔ Frozr AI Cooling –  Intelligent fan control based on real-time CPU/GPU temps
 ✔ EZ DIY Arsenal –  One-touch GPU release, pre-installed I/O shield, and tool-free antenna setup
 ✔ Mystic Light RGB Sync –  Built-in ARGB headers with full MSI lighting ecosystem support
 ✔ Click BIOS X & MSI Center –  Refined user interfaces for tweaking and monitoring

 Specs

Core Specs

▸ Socket:  AMD AM5
 ▸ Chipset:  AMD B850
 ▸ Form Factor:  ATX
 ▸ CPU Support:  AMD Ryzen™ 9000 / 8000 / 7000 Series

 Memory

▸ Slots:  4x DDR5 DIMM
 ▸ Max Capacity:  Up to 192GB
 ▸ Profiles:  EXPO / A-XMP Ready

 Expansion Slots
▸ 1x PCIe 5.0 x16 (Steel Armor)
▸ 2x PCIe 3.0 x1

 Storage
▸ 1x M.2 PCIe 5.0 x4
▸ 1x M.2 PCIe 4.0 x4
▸ 1x M.2 PCIe 3.0 x4
▸ 4x SATA III

 Networking
 ▸ LAN:  5G LAN (Realtek RTL8125BG)
 ▸ Wi-Fi:  Wi-Fi 7 (802.11be)
 ▸ Bluetooth:  5.4

 USB Connectivity
▸ Rear:  USB-C 20Gbps, USB-A 10Gbps
 ▸ Front:  USB-C 10Gbps

 Audio
▸ Codec:  Realtek ALC897
 ▸ Features:  Isolated analog layers for superior audio clarity

 Lighting
▸ RGB:  Mystic Light RGB, ARGB headers, Mystic Light Extension

 Power Delivery
▸ VRM:  12+2+1 Duet Rail Power
 ▸ Core Boost & Solid Pin Power Connectors
▸ Protections:  TVS (Voltage Spike Protection), OCP (Overcurrent Protection)

 Cooling
▸ Heatsinks:  Extended VRM & chipset
 ▸ Smart Cooling:  Frozr AI Cooling Technology

 BIOS & Software
▸ BIOS:  Click BIOS X
 ▸ Apps:  MSI Center, AI Boost, Latency Killer
 ▸ Utility:  MSI Driver Installer – auto installs drivers post Windows setup
