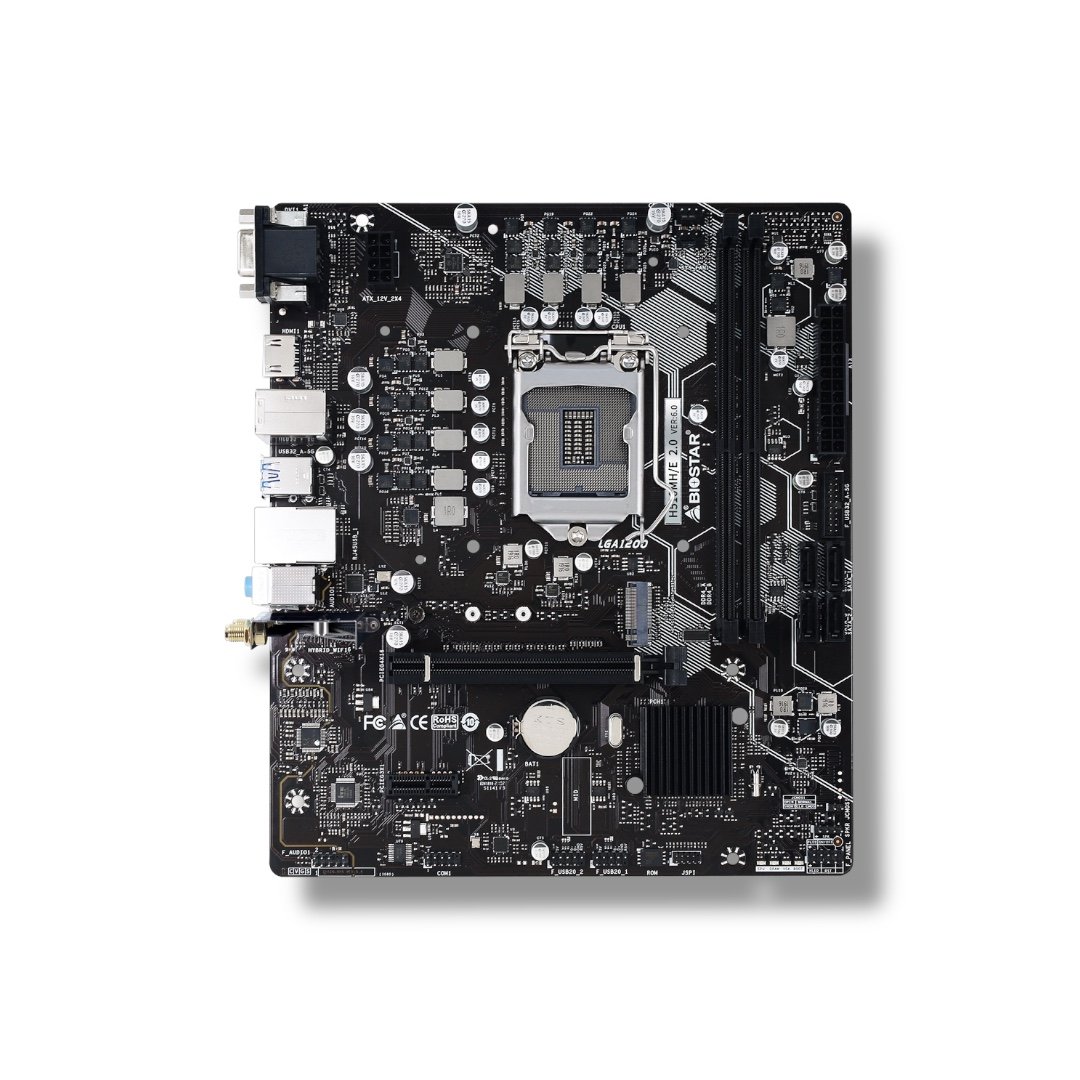

BIOSTAR MOTHERBOARD H510MH
Properties:
SKU: H510MH 📍Description ▸ Memory: Dual Channel DDR4 (1866/2133/2400/2666/3200 MHz) with 2 DIMM slots supporting up to 64GB (non-ECC 4/8/16GB modules) ▸ Integrated Video: Depends on CPU; supports DirectX 12, HDCP, and HDMI 1.4 ▸ Storage: 4 x SATA III (6Gb/s) connectors plus 1 M.2 (M-Key) socket (supports PCIe 3.0 x4 NVMe/AHCI & SATA SSD...

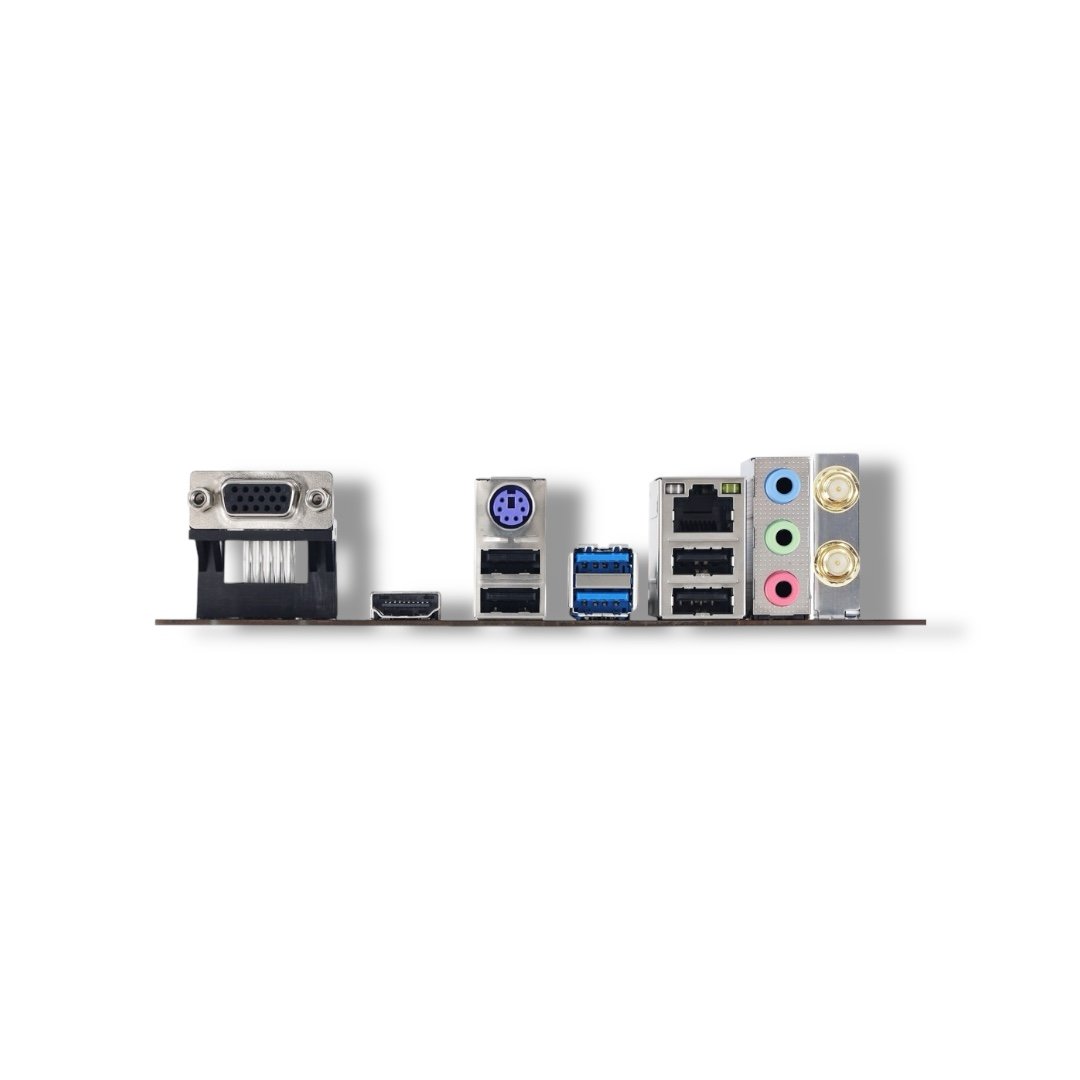

SKU: H510MH 📍Description ▸ Memory: Dual Channel DDR4 (1866/2133/2400/2666/3200 MHz) with 2 DIMM slots supporting up to 64GB (non-ECC 4/8/16GB modules) ▸ Integrated Video: Depends on CPU; supports DirectX 12, HDCP, and HDMI 1.4 ▸ Storage: 4 x SATA III (6Gb/s) connectors plus 1 M.2 (M-Key) socket (supports PCIe 3.0 x4 NVMe/AHCI & SATA SSDs; note: using a SATA SSD in the M.2 slot disables SATA_1) ▸ LAN: Intel I219V Gigabit Ethernet (10/100/1000 Mb/s) ▸ Audio: ALC897 codec delivering 7.1-channel High Definition Audio ▸ USB Ports: 4 x USB 3.2 Gen1 (2 rear, 2 via internal header) and 8 x USB 2.0 (4 rear, 4 via internal headers) ▸ Expansion Slots: 1 x PCIe 3.0 x1 slot and 1 x PCIe 3.0/4.0 x16 slot (PCIe 4.0 support available on Rocket Lake CPUs) ▸ Rear I/O: Includes 2 WiFi antenna ports, PS/2 Keyboard/Mouse port, HDMI, VGA, LAN, 2 x USB 3.2 Gen1, 4 x USB 2.0, and 3 Audio Jacks ▸ Internal I/O: 4 SATA III connectors, 1 M.2 (E-Key) socket for Wi-Fi/Bluetooth (card not included), USB headers, power connectors, fan headers, front panel/audio headers, clear CMOS, and COM port header ▸ Hardware Monitoring: Monitors CPU/system temperature, fan speeds, and voltage ▸ Dimensions: Micro ATX form factor – 20.8 cm x 23.6 cm (W x L) ▸ OS Support: Windows 10 (64-bit) (subject to change) ▸ Bundle Software & Accessories: Includes BullGuard, 2 SATA cables, 1 I/O shield, 1 DVD driver, 1 Quick Guide, and WiFi accessories ▸ Extra Feature: BIOS-Flasher for easy BIOS updates A comprehensive and user-friendly motherboard support list designed for reliable performance and connectivity.
