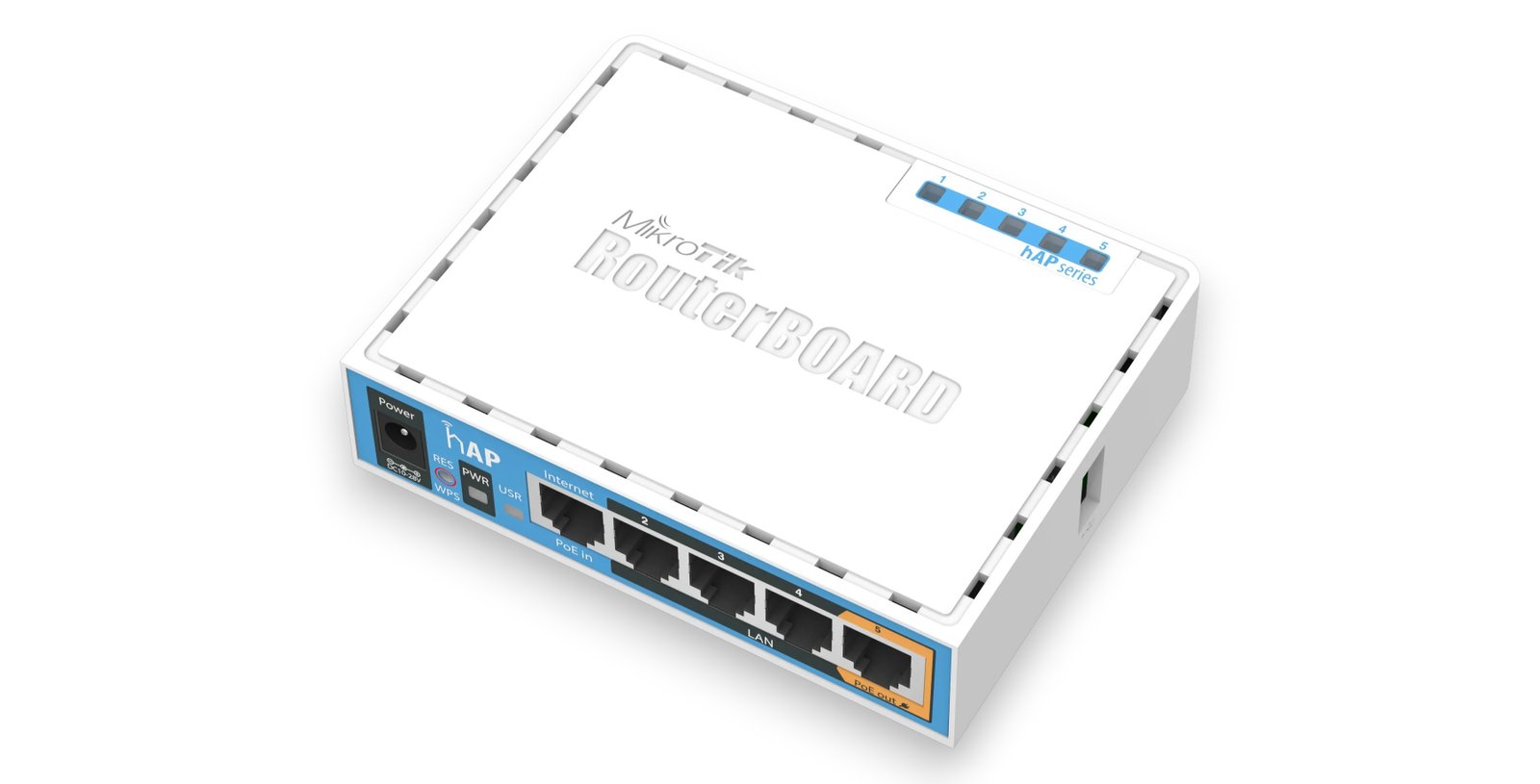

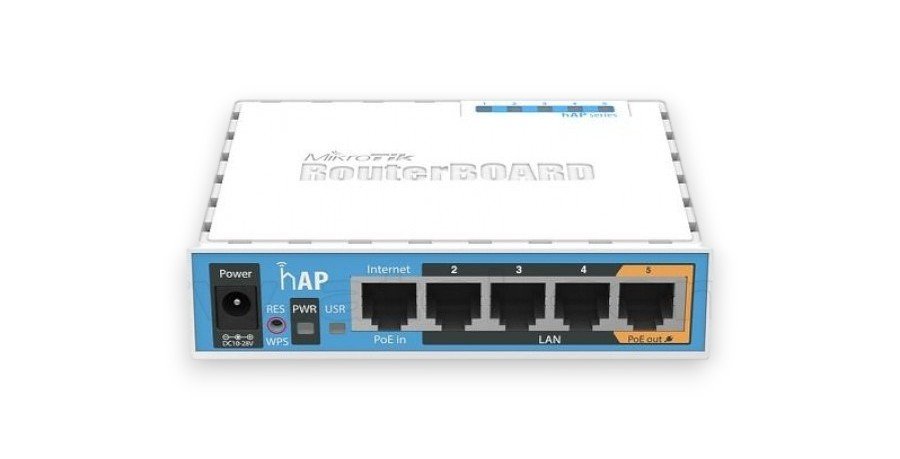

MIKROTIK RB951UI-2ND 2.4GHz ROUTER BOARD

Information:

💡 MIKROTIK RB951UI-2ND 2.4GHz Router Board

Description:

🎯  Features – RB951UI-2ND
✔ 2.4GHz Wi-Fi 4 router board with a maximum wireless speed of 300 Mbps
✔ MIPSBE architecture with QCA9531 CPU, 1 core, 650 MHz
✔ 64 MB RAM and 16 MB FLASH storage for stable performance
✔ 5× 10/100 Ethernet ports for wired connectivity
✔ 1× USB Type-A port with USB-powered reset (max current 1A)
✔ RouterOS license level 4 included for advanced networking features
✔ Compact and durable design (113 × 89 × 28 mm) suitable for small installations
✔ Operating temperature range: -30°C to 70°C, MTBF ~100,000 hours

⸻

📊  Specs – RB951UI-2ND

Hardware Features
▸ CPU: QCA9531, 1-core, 650 MHz
▸ RAM: 64 MB
▸ Storage: 16 MB FLASH
▸ Ethernet: 5× 10/100 ports
▸ USB: 1× Type-A (USB-powered reset, max 1A)
▸ Dimensions: 113 × 89 × 28 mm
▸ RouterOS License: Level 4
▸ MTBF: ~100,000 hours
▸ Tested Ambient Temperature: -30°C to 70°C

Wireless Features
▸ Frequency: 2.4 GHz Wi-Fi 4
▸ Max Data Rate: 300 Mbps
▸ Chains: 2
▸ Standards: 802.11b/g/n
▸ Antenna Gain: 1.5 dBi

Peripherals & Connectivity
▸ USB Slot: Type-A, USB Power Reset
▸ Max USB Current: 1A

📦 Package Contents

MIKROTIK RB951UI-2ND Router Board

Quick Installation Guide

⸻

⚡ Ideal for small home or office setups requiring reliable 2.4 GHz Wi-Fi, RouterOS features, and multiple Ethernet connections.
