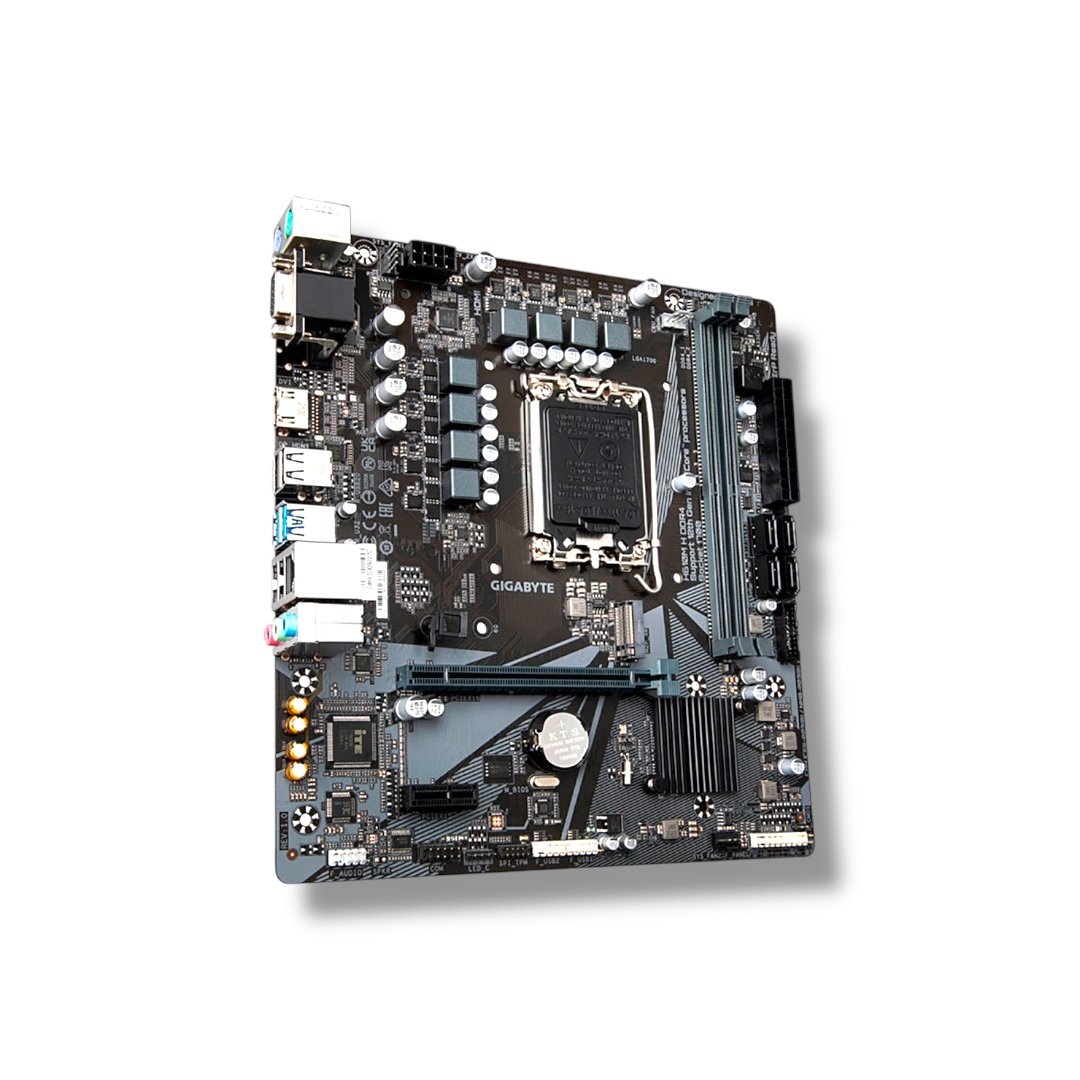

GIGABYTE H610M-H MOTHERBOARD

Information:

Gigabyte H610M-H Support  13th,12 Gen Pentium® Gold and Celeron® Processors DDR4 up to 64GB

Description:

SKU: GIG-H610-H-DDR4
📍Description

▸ Processor:  Supports 13th/12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors (LGA1700)
 ▸ Chipset:  Intel® H610 Express Chipset
 ▸ Memory:  DDR4 up to 3200 MT/s, 64 GB (2 DIMM), Dual Channel, ECC/non-ECC, XMP
 ▸ Onboard Graphics:  Intel® HD Graphics: D-Sub (1920×1200@60 Hz), HDMI (4096×2160@60 Hz)
 ▸ Audio:  Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel
 ▸ LAN:  Intel® GbE LAN (1 Gbps/100 Mbps)
 ▸ Expansion Slots:  PCIe 4.0 x16, PCIe 3.0 x1
 ▸ Storage Interface:  M.2 (PCIe 3.0 x4/x2), 4 x SATA 6Gb/s
 ▸ USB:  4 x USB 3.2 Gen 1 (2 rear, 2 internal), 8 x USB 2.0 (4 rear, 4 internal)
 ▸ Internal I/O:  24-pin ATX, 8-pin ATX 12V, M.2, SATA, fan headers, RGB LED header, front panel, audio, USB headers, TPM, serial port, Clear CMOS
 ▸ Back Panel:  PS/2 keyboard/mouse, D-Sub, HDMI, USB 3.2 Gen 1, USB 2.0, RJ-45, audio jacks
 ▸ I/O Controller:  iTE® I/O Controller Chip
 ▸ H/W Monitoring:  Voltage, temperature, fan speed detection; overheating and fan fail warnings; fan speed control*
 ▸ BIOS:  256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
 ▸ Unique Features:  APP Center, @BIOS, Ambient LED, EasyTune, Smart Backup, System Info Viewer, Q-Flash, Xpress Install
