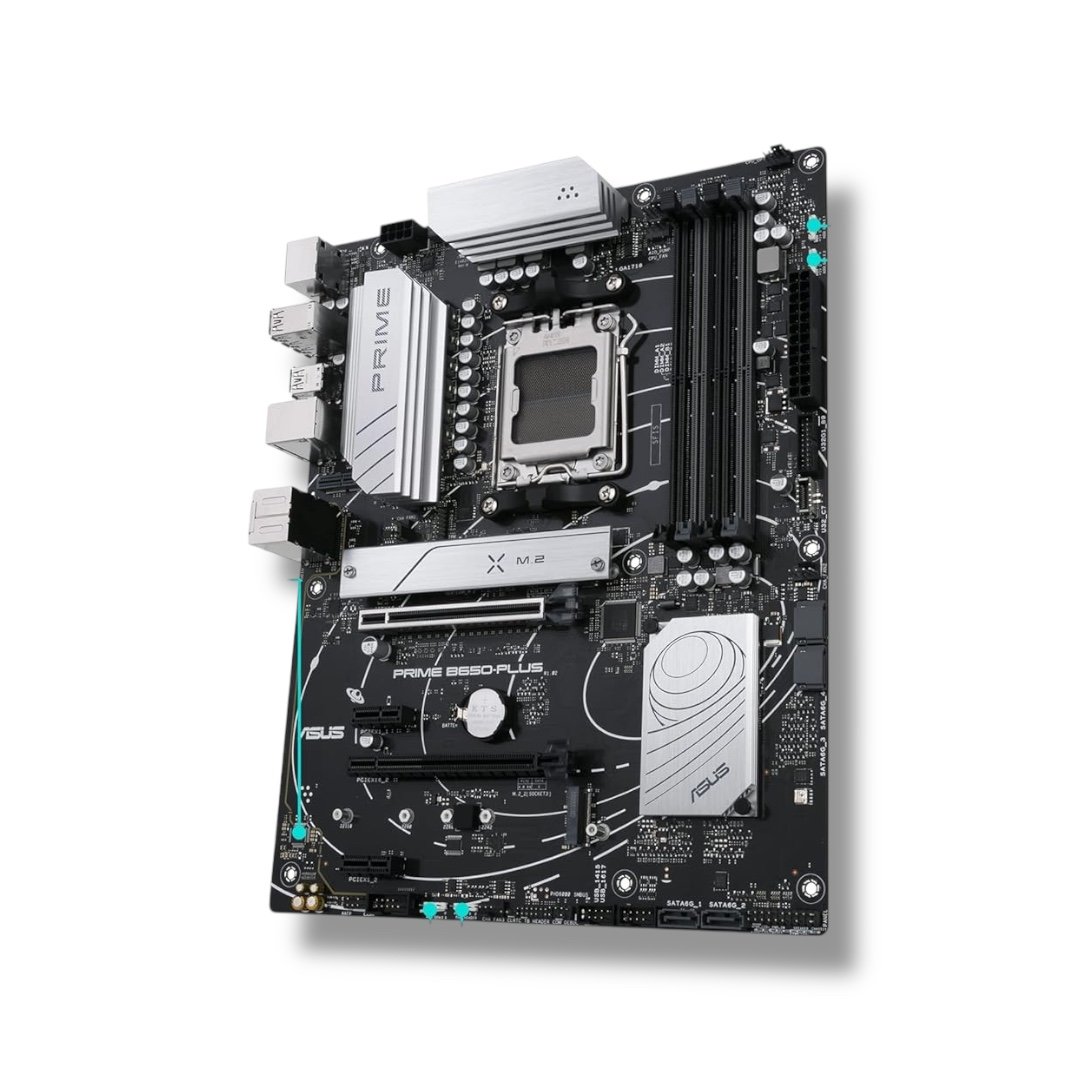

ASUS PRIME B650-PLUS Motherboard
Properties:
SKU: 90MB1BS0-MVAAY0 📍Description ▸ Processor Support: AMD Ryzen™ 7000 Series Desktop Processors via AM5 Socket ▸ Chipset: AMD B650 – delivers robust performance and ultrafast connectivity ▸ Memory: 4 DDR5 DIMM slots supporting up to 256GB; speeds from 4800 MHz up to 6400+(OC) MHz with AMD EXPO and ASUS OptiMem II for superior overcloc...

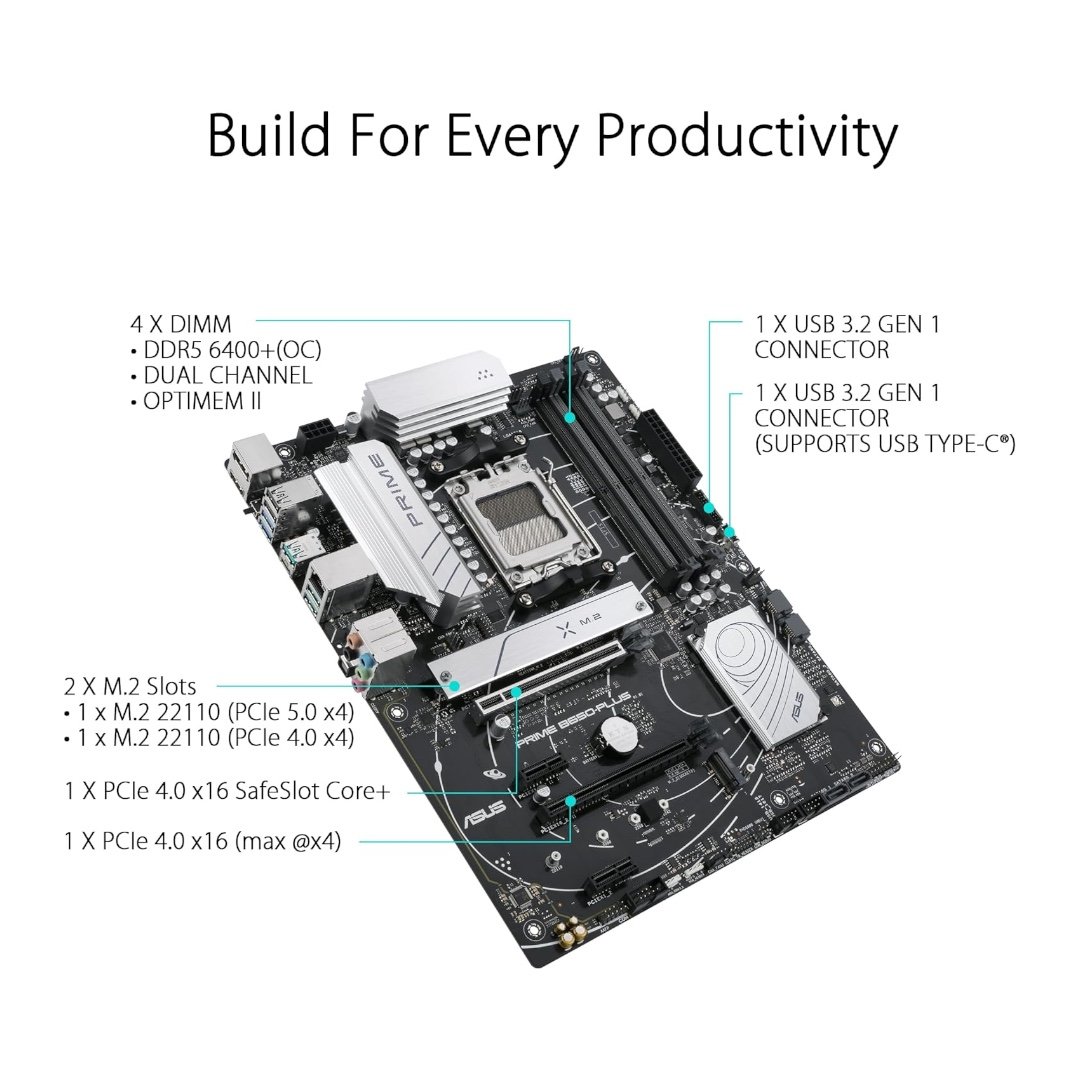

SKU: 90MB1BS0-MVAAY0 📍Description ▸ Processor Support: AMD Ryzen™ 7000 Series Desktop Processors via AM5 Socket ▸ Chipset: AMD B650 – delivers robust performance and ultrafast connectivity ▸ Memory: 4 DDR5 DIMM slots supporting up to 256GB; speeds from 4800 MHz up to 6400+(OC) MHz with AMD EXPO and ASUS OptiMem II for superior overclocking ▸ Expansion & Storage: - 1 PCIe 4.0 x16 slot (supports x16 mode) + 1 PCIe 4.0 x16 slot from the chipset (supports x4 mode) and 2 PCIe 4.0 x1 slots - Dual M.2 slots: M.2_1 supports PCIe 5.0 x4/SATA (2282/2260/2242/22110) and M.2_2 supports PCIe 4.0 x4/SATA mode - 4 SATA 6Gb/s ports with RAID 0/1/10 support via AMD RAIDXpert2 Technology ▸ Connectivity: Ultra-fast networking with Realtek 2.5Gb Ethernet; rear I/O includes 4 USB 3.2 Gen2 ports (3 Type-A, 1 Type-C), plus additional USB 3.2 Gen1 and USB 2.0 ports ▸ Video Outputs: 1 HDMI port (HDMI 2.1) and 1 DisplayPort for high-resolution displays; vertical M.2 slot (Key E) for Wi-Fi module (sold separately) ▸ Audio: Immersive Realtek 7.1 Surround Sound HD Audio CODEC with premium audio shielding and dedicated PCB layers for studio-grade sound ▸ Cooling & Power: Comprehensive cooling with VRM, M.2, and PCH heatsinks, hybrid fan headers with Fan Xpert 2plus; powered by 24-pin and 8-pin +12V connectors ▸ Lighting: Aura Sync RGB Lighting with onboard Addressable Gen 2 and Aura RGB headers for synchronized lighting effects ▸ Additional Features: ASUS 5X PROTECTION III, Q-DESIGN, Thermal Solution, EZ DIY with BIOS FlashBack, plus a Thunderbolt (USB4) header ▸ Form Factor & Dimensions: ATX form factor measuring 12.0″ x 9.6″ for full-sized builds ▸ Accessories: Includes 2 SATA cables, I/O shield, M.2 rubber package, screw package for M.2 SSD, and a user guide A high-performance, feature-rich ATX motherboard engineered for gamers and power users, delivering ultrafast connectivity, immersive audio and RGB lighting, and robust overclocking potential—all backed by ASUS’s premium design and protection features.
