Power supply

Information:

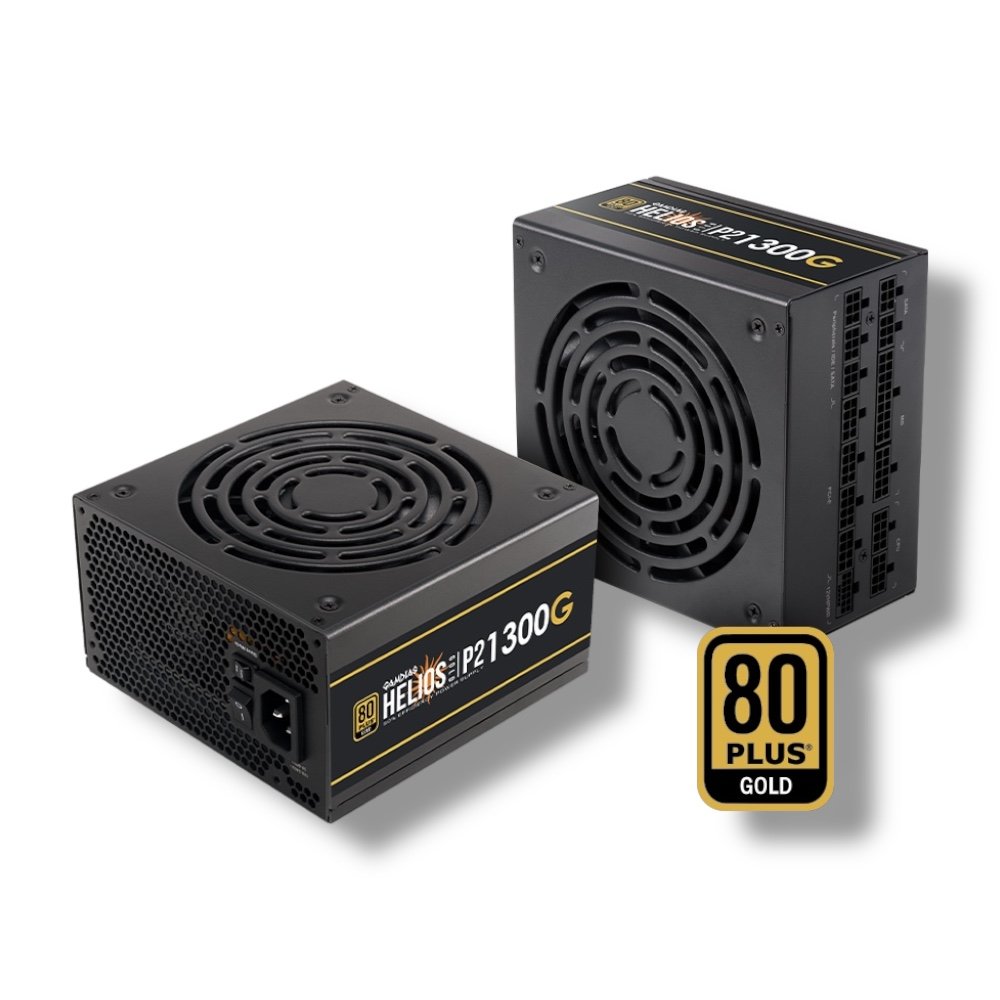

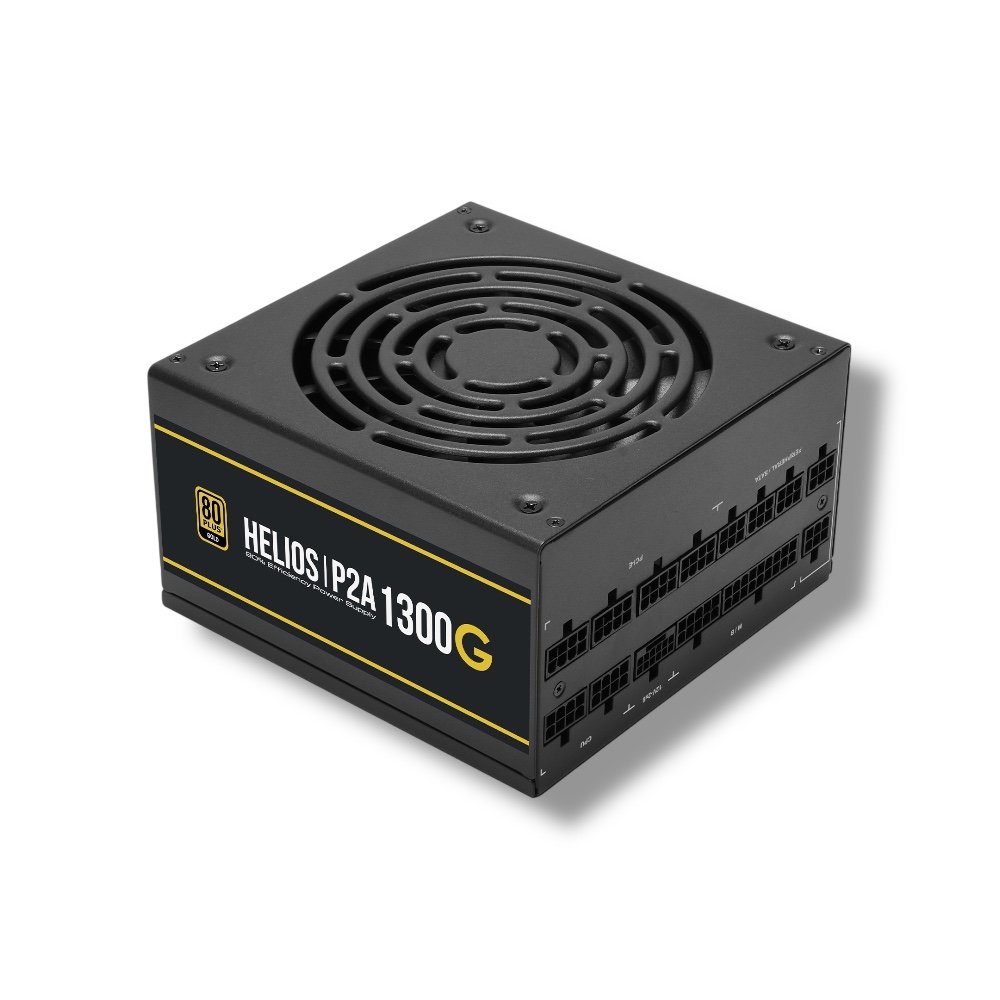

Gamdias Helios P2A-1300G | 1300W Fully Modular | 80 Plus Gold | ATX 3.1 | PCIe 5.1 | Native 12VHPWR | Silent 135mm FDB Fan

Description:

▸ SKU: HELIOS-P2A-1300G
▸ Model: HELIOS P2A-1300G
▸ Form Factor: ATX 3.1
▸ Efficiency: 80 PLUS Gold (Up to 90%)
▸ Total Power Output: 1300W
▸ Peak Power: 1690W
▸ PFC: Active (PF = 0.99)
▸ AC Input: 100–240V~, 15–8A, 50–60Hz
▸ DC Outputs: +3.3V / +5V / +12V / -12V / +5Vsb
▸ Max Output Current: 22A / 22A / 108.3A / 0.3A / 3A
▸ Output Power: 120W (3.3V+5V), 1300W (12V)
▸ Modularity: Fully Modular
▸ Flat Cables: Yes
▸ Fan: 135mm Fluid Dynamic Bearing (FDB)
▸ Silent Mode: Yes (Stops under 20% load)
▸ Dimensions (LxWxH): 150 x 150 x 86 mm
▸ Protections: OVP, UVP, OPP, SCP, OCP, OTP
▸ Main Power (24-pin): 1x
▸ CPU (4+4-pin): 2x
▸ PCIe (6+2-pin): 4x
▸ 12VHPWR (12+4-pin): 1x
▸ SATA (5-pin): 12x
▸ Molex (4-pin): 4x
▸ DC to DC: Yes
▸ Environmental: ErP Lot 6, Supports C6/C7
▸ MB Sync Support: No
