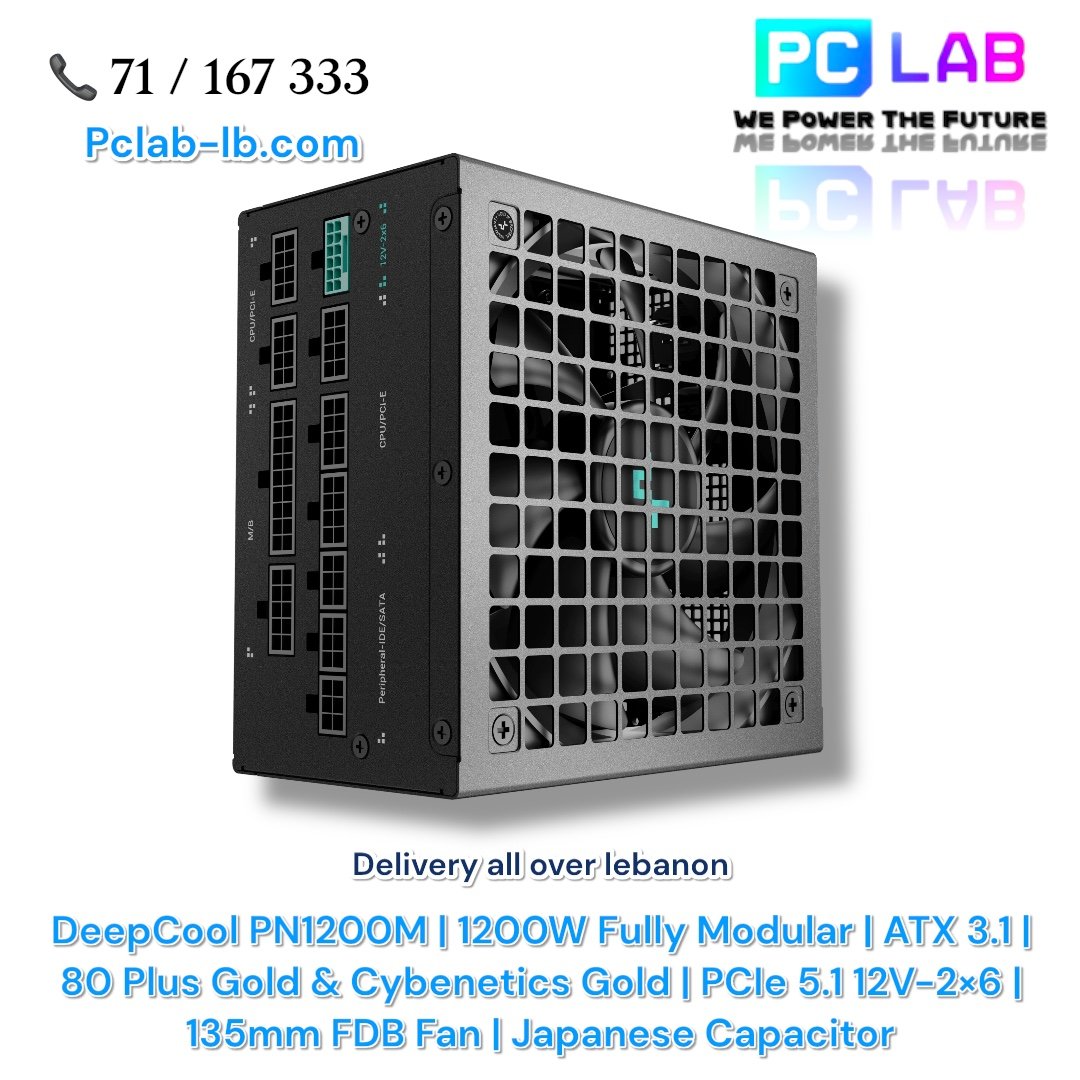

Power supply DeepCool PN1200M | 1200W Fully Modular | ATX 3.1 | 80 Plus Gold

Information:

DeepCool PN1200M | 1200W Fully Modular | ATX 3.1 | 80 Plus Gold & Cybenetics Gold | PCIe 5.1 12V-2×6 | 135mm FDB Fan | Japanese Capacitor

Description:

▸ SKU: R-PNC00M-FC0B-EU
▸ Model: DeepCool PN1200M
▸ Power Output: 1200W
▸ Form Factor: ATX12V v3.1
▸ Efficiency Certification: 80 Plus Gold & Cybenetics Gold
▸ Efficiency: ≥90% at 50% load
▸ PSU Topology: Active PFC + Half Bridge SRC LLC + DC-to-DC
▸ Capacitors: Japanese bulk capacitor

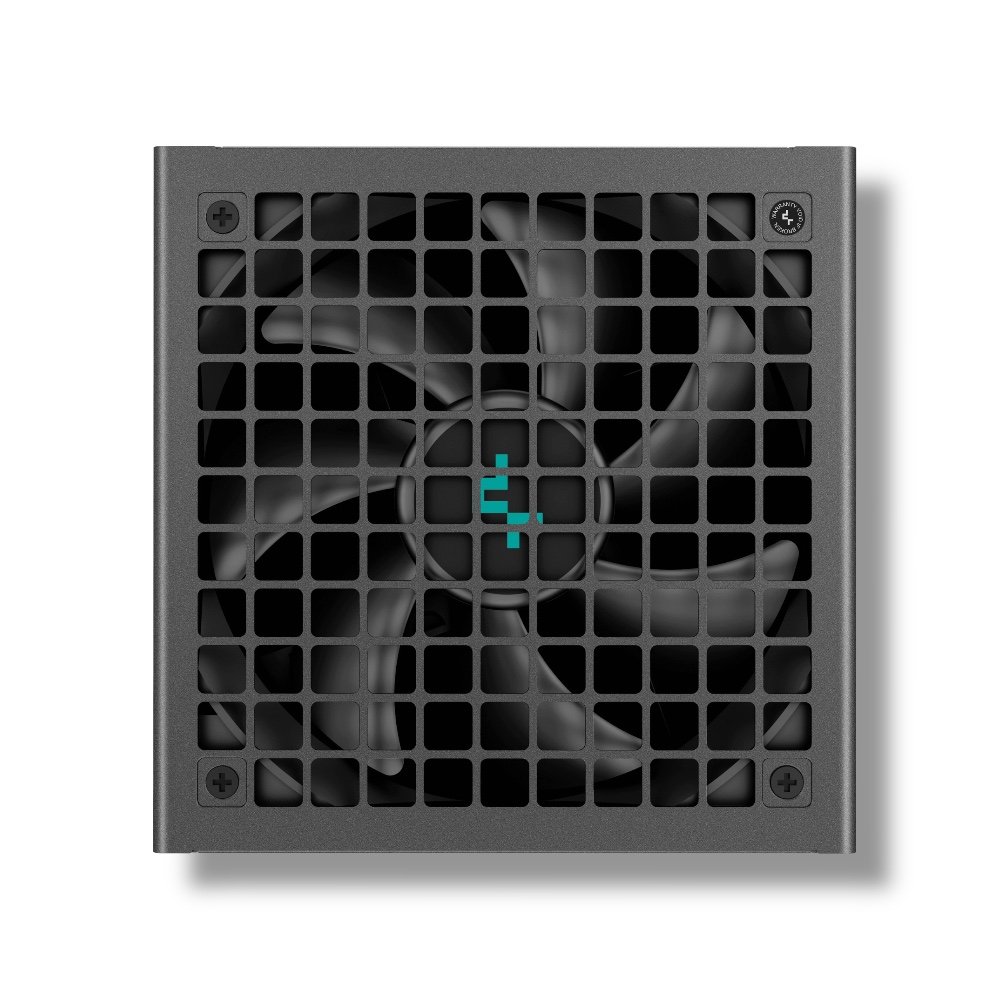

▸ Fan Type: 135mm Fluid Dynamic Bearing
▸ Dimensions: 150 × 150 × 86 mm (W x L x H)
▸ Hold-Up Time: ≥16 ms @ 80% load
▸ Power Good Signal: 100–150 ms
▸ Operating Temperature: 0 – 40°C
▸ MTBF: 100,000 hours

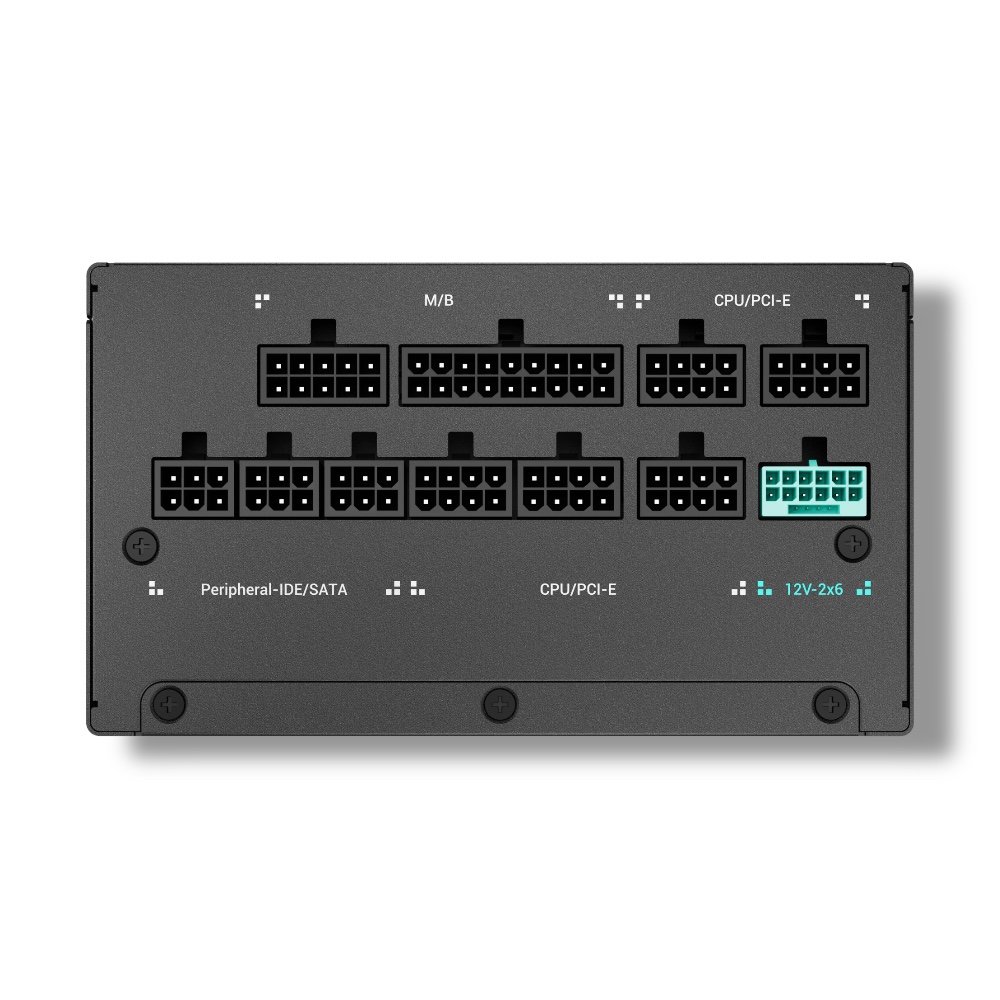

▸ Main Connectors: 24-pin x1, EPS 8-pin x2, PCIe 8-pin x3, 12V-2×6 x1
▸ SATA / Molex: SATA x4 + 4-Pin Peripheral x1 (2 cables)
▸ Protection Features: OVP, OPP, SCP, OTP, OCP, UVP, NLO, SIP
▸ Certifications: CE, FCC, CCC, TUV, cTUVus, RCM, EAC, BISE, RoHS
▸ Warranty: 1 Year
