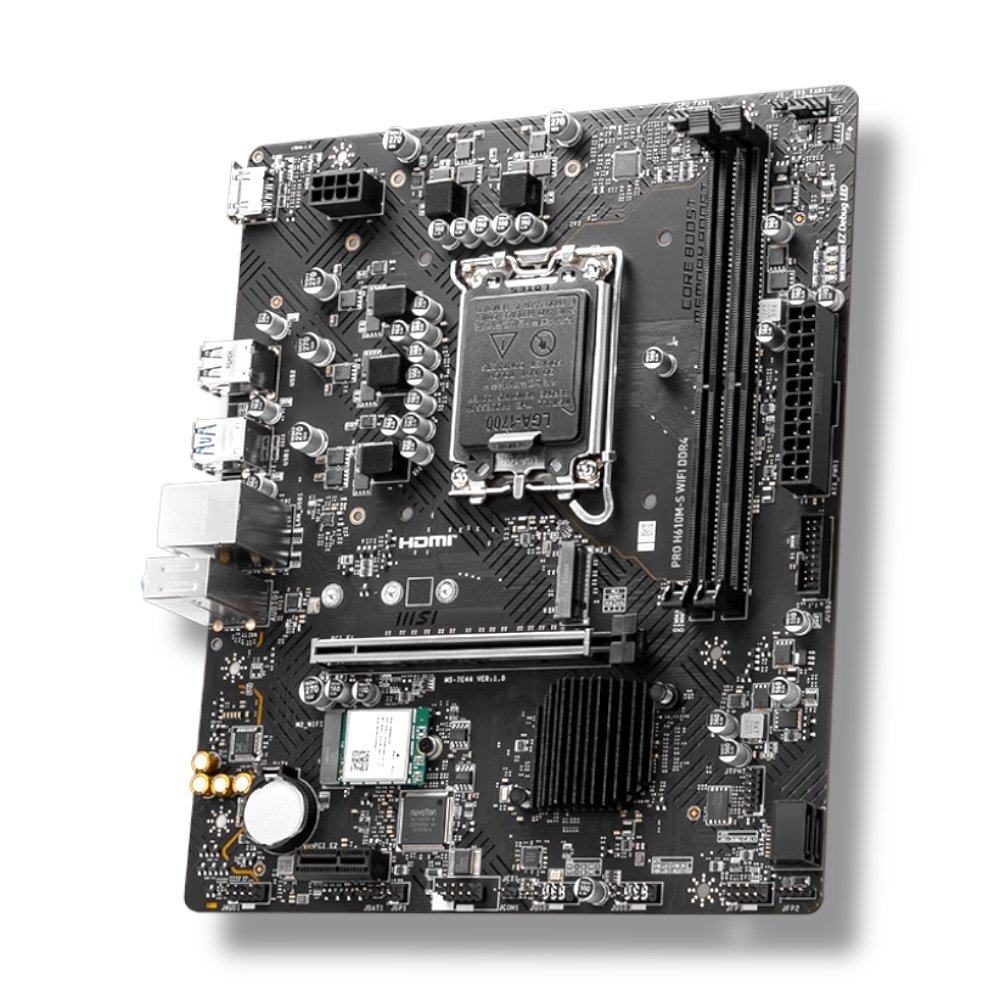

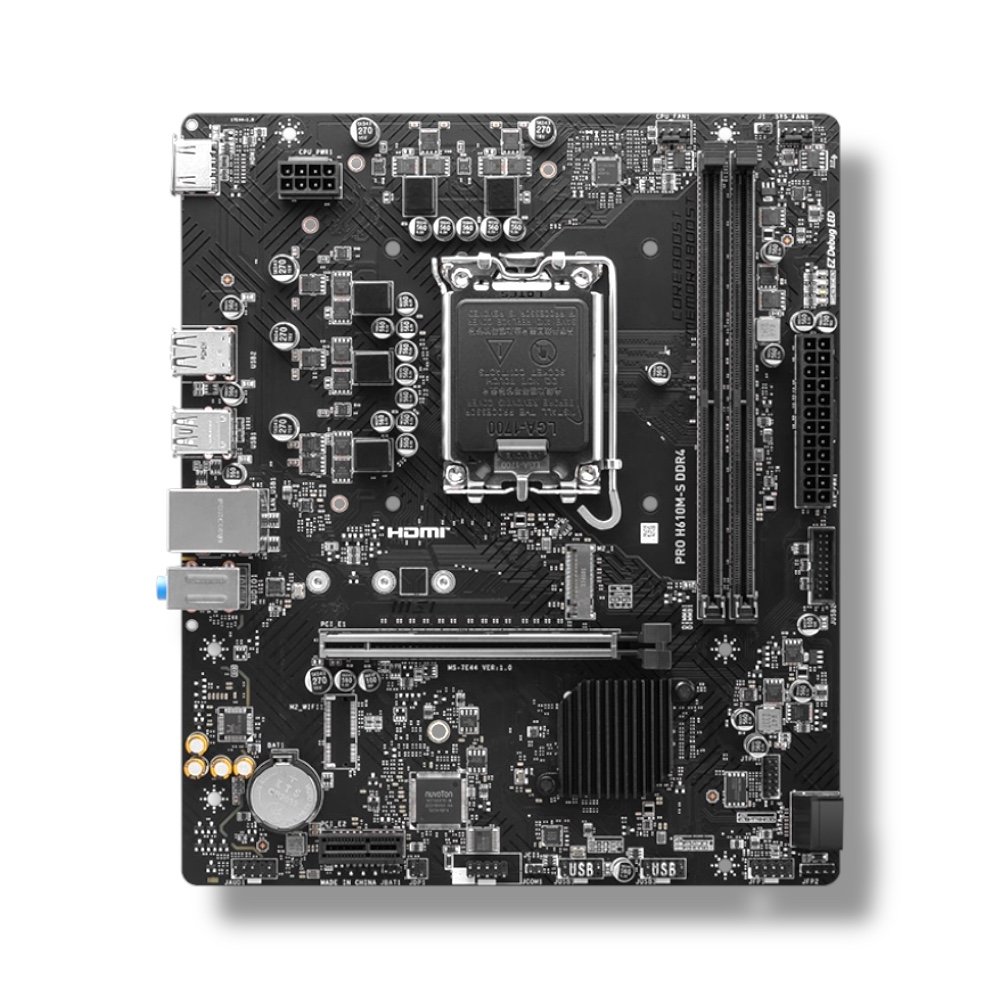

MSI PRO H610M-S DDR4 Motherboard | Micro-ATX lGA 1700

Information:

MSI PRO H610M-S DDR4 Motherboard | Micro-ATX | Supports Intel® 14th/13th/12th Gen CPUs | DDR4 | PCIe 4.0 | 1G LAN | HDMI & VGA | 1-Year Warranty

Description:

▸ SKU: 911-7E44-010
▸ Chipset: Intel® H610
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® (LGA 1700)
▸ Memory: 2× DDR4 slots | Up to 64GB | Dual Channel | 1866–3200MHz (JEDEC) | Non-ECC, unbuffered
▸ Onboard Graphics: 1× HDMI™ 1.4 (4K@30Hz, HDR) — depends on CPU with iGPU
▸ Expansion Slots: 1× PCIe 4.0 x16 | 1× PCIe 3.0 x1
▸ Audio: Realtek® ALC897 | 7.1-Channel High Definition Audio
▸ Storage: 1× M.2 (PCIe 3.0 x4, 2280/2260/2242) | 2× SATA 6Gb/s
▸ USB Ports: Rear — 2× USB 3.2 Gen1, 4× USB 2.0 | Front — 2× USB 3.2 Gen1, 4× USB 2.0
▸ LAN: Realtek® RTL8111H Gigabit LAN
▸ Internal I/O: ATX_PWR, CPU_PWR, CPU Fan, System Fan, JFP, JCI, JAUD, JCOM, TPM 2.0 header, USB 2.0 header
▸ LED Feature: 4× EZ Debug LED
▸ Back Panel Ports: HDMI™, USB 3.2 Gen1, USB 2.0, LAN, Audio Connectors
▸ Operating System: Windows® 11 / 10 (64-bit)
▸ PCB Form Factor: mATX (200mm × 236.16mm)
