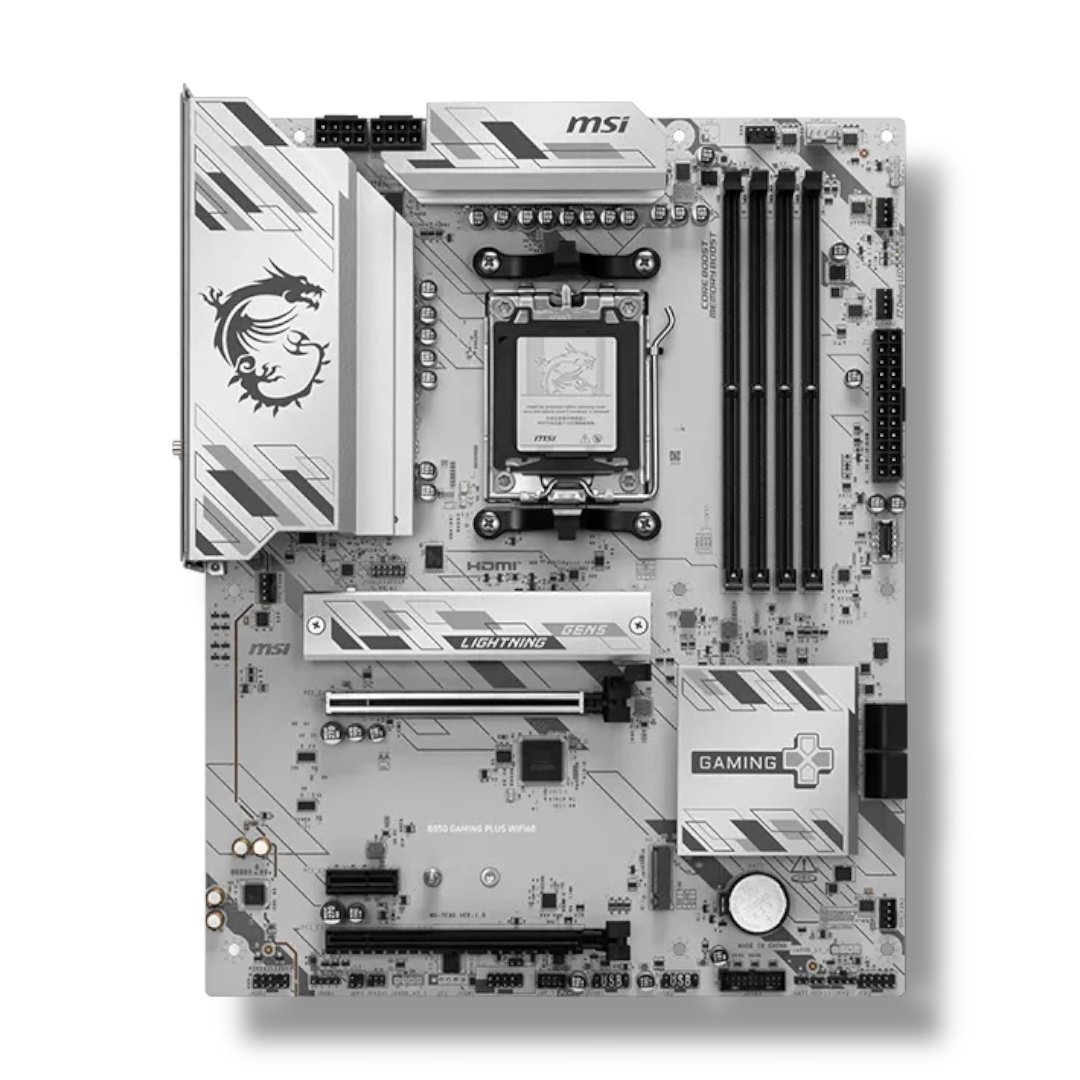

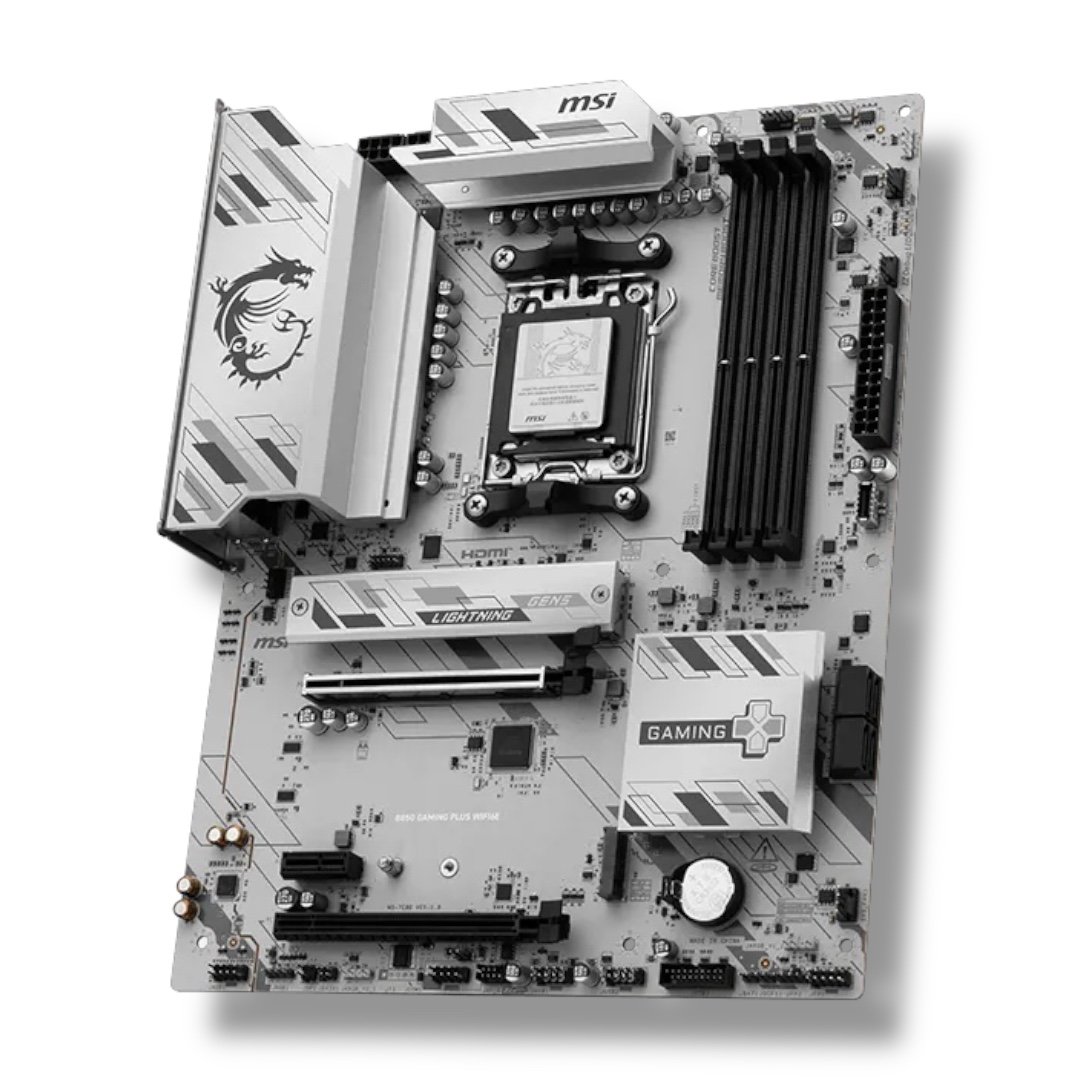

MSI B850 GAMING PLUS WIFI6E – AM5 ATX | DDR5 8200+ | PCIe 5.0 M.2 | 2.5G LAN

Information:

A next-generation AM5 motherboard powered by the AMD B850 chipset, built for Ryzen 9000 / 8000 / 7000 processors with extreme DDR5 speeds, PCIe 5.0 storage, and advanced connectivity for modern gaming builds.

Description:

▸ SKU: 911-7E80-001
▸ Model: MSI B850 GAMING PLUS WIFI6E
▸ Form Factor: ATX
▸ Dimensions: 12.00″ × 9.60″
▸ Socket: AM5
▸ Chipset: AMD B850
▸ CPU Support: Ryzen™ 9000 / 8000 / 7000 Series
▸ Memory: 4× DDR5 DIMMs, Dual Channel, 8200+ MT/s (OC)
▸ Storage:
  • 1× M.2 Gen5 x4 (128Gbps)
  • 1× M.2 Gen4 x4 (64Gbps)
  • 4× SATA 6Gbps
▸ RAID: SATA 0/1/10, NVMe 0/1
▸ Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1
▸ LAN: Realtek® 2.5Gbps
▸ Wireless: Wi-Fi 6E
▸ Bluetooth: 5.3
▸ Graphics Outputs: 1× HDMI™, 1× DisplayPort 1.4
▸ Rear USB: 3× USB 10Gbps Type-A, 1× USB 10Gbps Type-C, 4× USB 5Gbps Type-A
▸ Front USB: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
▸ Audio: 8-Channel (7.1) HD Audio
▸ PCB: 6-Layer, 2oz Copper
▸ OS Support: Windows 11 64-bit
