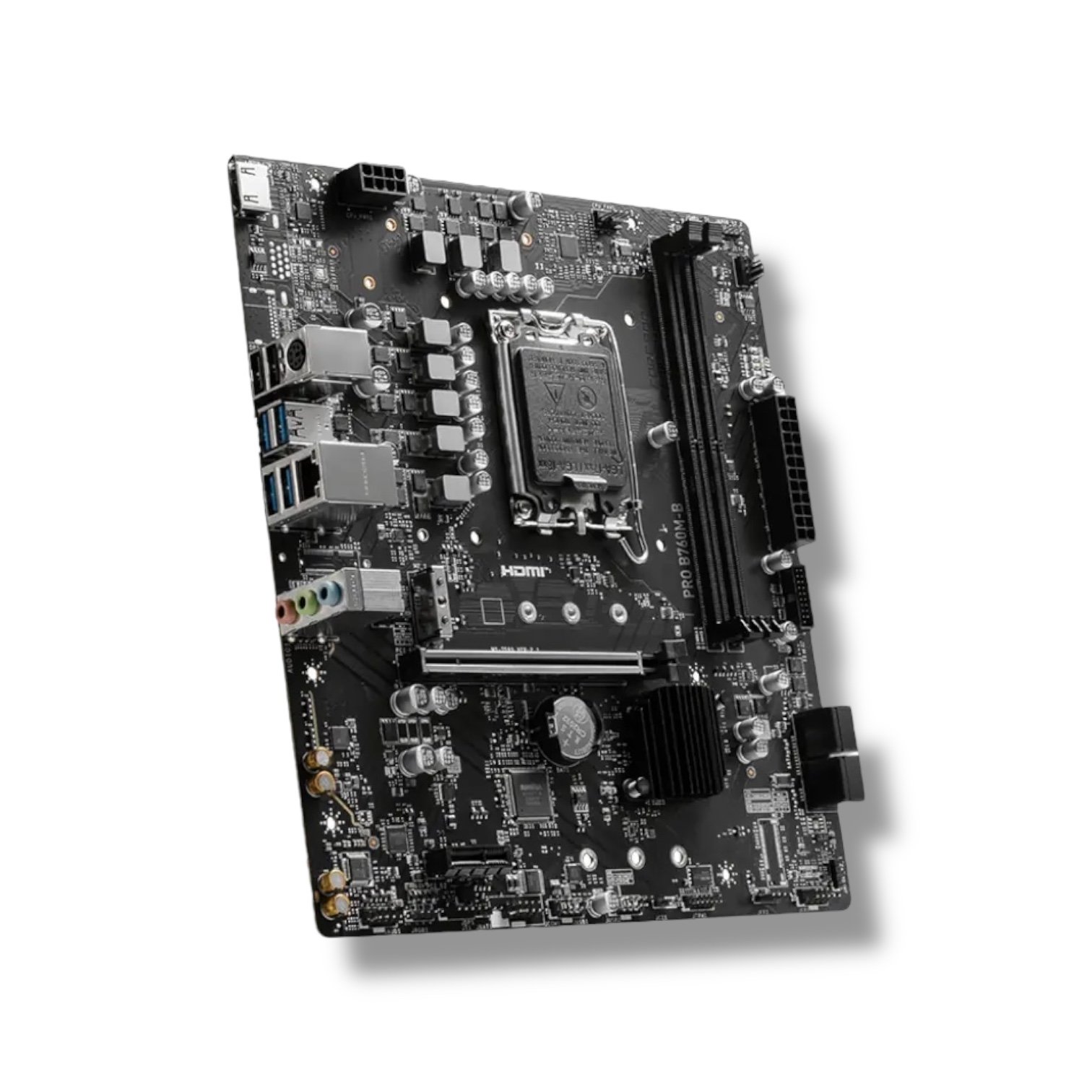

MSI PRO B760M-B DDR5 mATX Motherboard | Intel® LGA 1700

Information:

MSI PRO B760M-B DDR5 mATX Motherboard | Intel® LGA 1700 | DDR5 6400+MHz (OC) | PCIe 4.0 | Lightning Gen4 x4 M.2 | 2.5G LAN | Steel Armor | 1-Year Warranty

Description:

▸ SKU: 911-7D90-018
▸ Chipset: Intel® B760
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® (LGA 1700)
▸ Memory: 2× DDR5 DIMM slots, up to 128GB, Dual Channel
▸ Memory Speed: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 4800(JEDEC)
▸ XMP Support: Intel® XMP 3.0
▸ Graphics Output: HDMI™ 2.1 (4K @ 60Hz with HDR)
▸ Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 4.0 x1
▸ Audio: Realtek® ALC897 Codec (7.1 Channel HD Audio)
▸ Storage: 1× M.2 PCIe 4.0 x4 (2280/2260/2242), 4× SATA 6G ports
▸ RAID Support: RAID 0 / 1 / 5 / 10 for SATA devices
▸ USB Ports:
 • Rear: 2× USB 2.0, 4× USB 5Gbps Type-A
 • Front: 4× USB 2.0, 2× USB 5Gbps Type-A
▸ Networking: Realtek® RTL8125B 2.5Gb LAN
▸ Internal I/O:
 • 1× ATX_PWR, 1× CPU_PWR
 • 1× CPU Fan, 2× System Fan
 • 2× Front Panel (JFP), 1× TPM Header
 • 2× ARGB V2, 1× RGB Header
▸ LED Feature: EZ Debug LED
▸ Back Panel Ports: HDMI™, Keyboard/Mouse, 2.5G LAN, Audio, USB 2.0, USB 3.2 Gen1
▸ Operating System: Windows® 11 / 10 (64-bit)
▸ Form Factor: mATX (220mm × 243.84mm)
▸ Warranty: 1 Year
