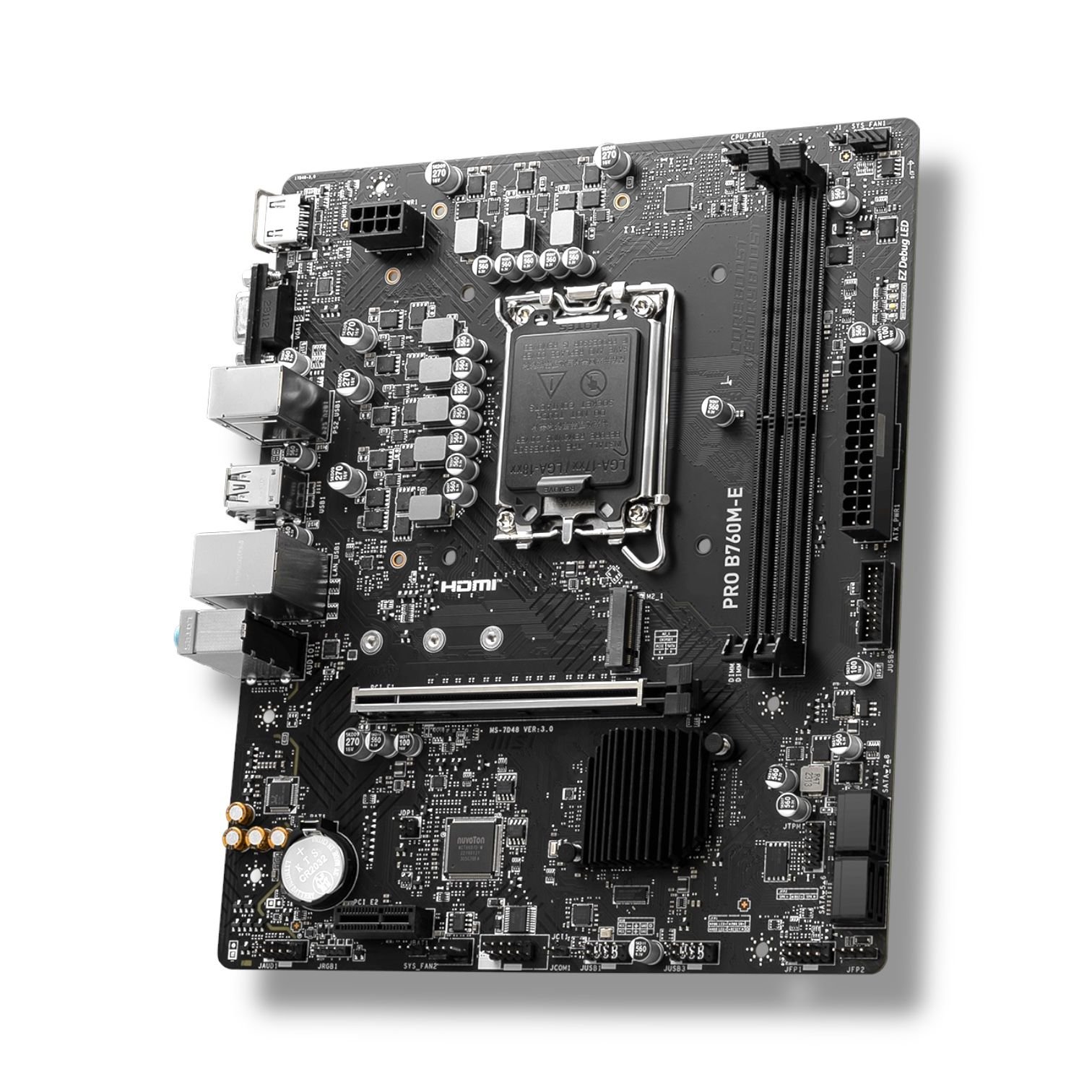

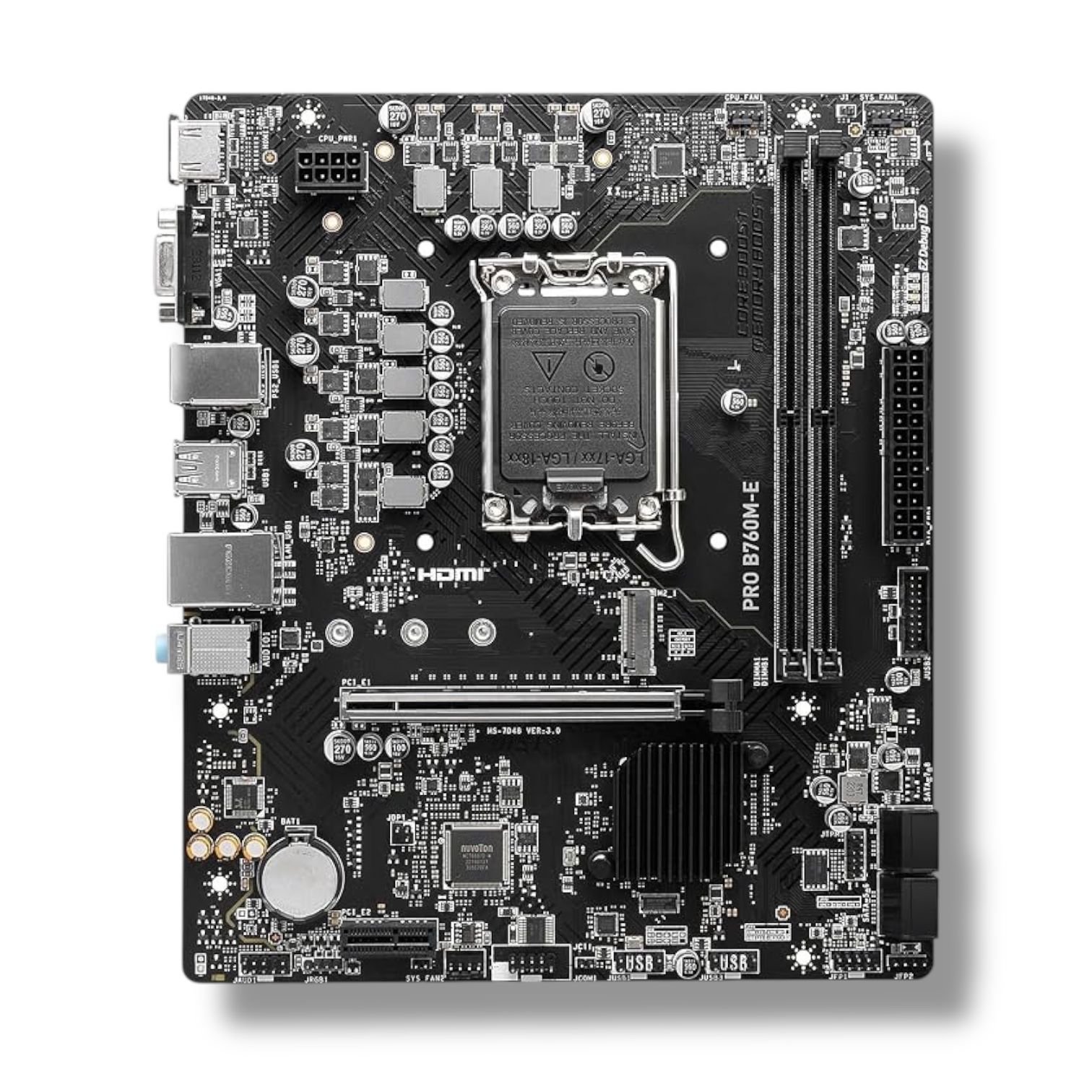

MSI PRO B760M-E DDR5 Motherboard | Intel® 12th–14th Gen | DDR5

Information:

MSI PRO B760M-E DDR5 Motherboard | Intel® 12th–14th Gen | DDR5 6400+MHz | PCIe 4.0 | M.2 Gen4 | mATX | 1 Year Warranty

Description:

▸ SKU: 911-7D48-073
▸ Brand: MSI
▸ Model: PRO B760M-E DDR5
▸ Form Factor: mATX (200 × 236 mm)
▸ Chipset: Intel B760
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® ( LGA 1700 )
▸ Memory Slots: 2× DDR5 DIMM, up to 128 GB
▸ Memory Support: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 (JEDEC) and below
▸ Audio: Realtek® ALC897 7.1-Channel HD Audio
▸ Storage: 1× M.2 (PCIe 4.0 x4 / SATA mode, 2280/2260/2242) + 4× SATA 6 Gb/s
▸ RAID Support: RAID 0 / 1 / 5 / 10 for SATA devices
▸ LAN: Realtek® RTL8111H Gigabit Ethernet
▸ Integrated Graphics: HDMI 1.4 (4K @ 30 Hz) + VGA (2048×1536 @ 50 Hz) (CPU with iGPU required)
▸ Expansion Slots: 1× PCIe 4.0 x16 (From CPU), 1× PCIe 3.0 x1 (From Chipset)
▸ USB Ports: Rear – 4× USB 2.0, 2× USB 5 Gbps Type-A / Front – 4× USB 2.0, 2× USB 5 Gbps Type-A
▸ Internal I/O: ATX_PWR, CPU_PWR, CPU Fan, 2× System Fan, Front Audio, RGB LED (JRGB), TPM 2.0 Header, COM, Front Panel
▸ Back Panel Ports: HDMI, VGA, USB 2.0, USB 5 Gbps Type-A, LAN, Audio Connectors, Keyboard/Mouse
▸ LED Features: 4× EZ Debug LED
▸ Operating System: Windows® 11 / 10 ( 64-bit )
▸ Color: Black

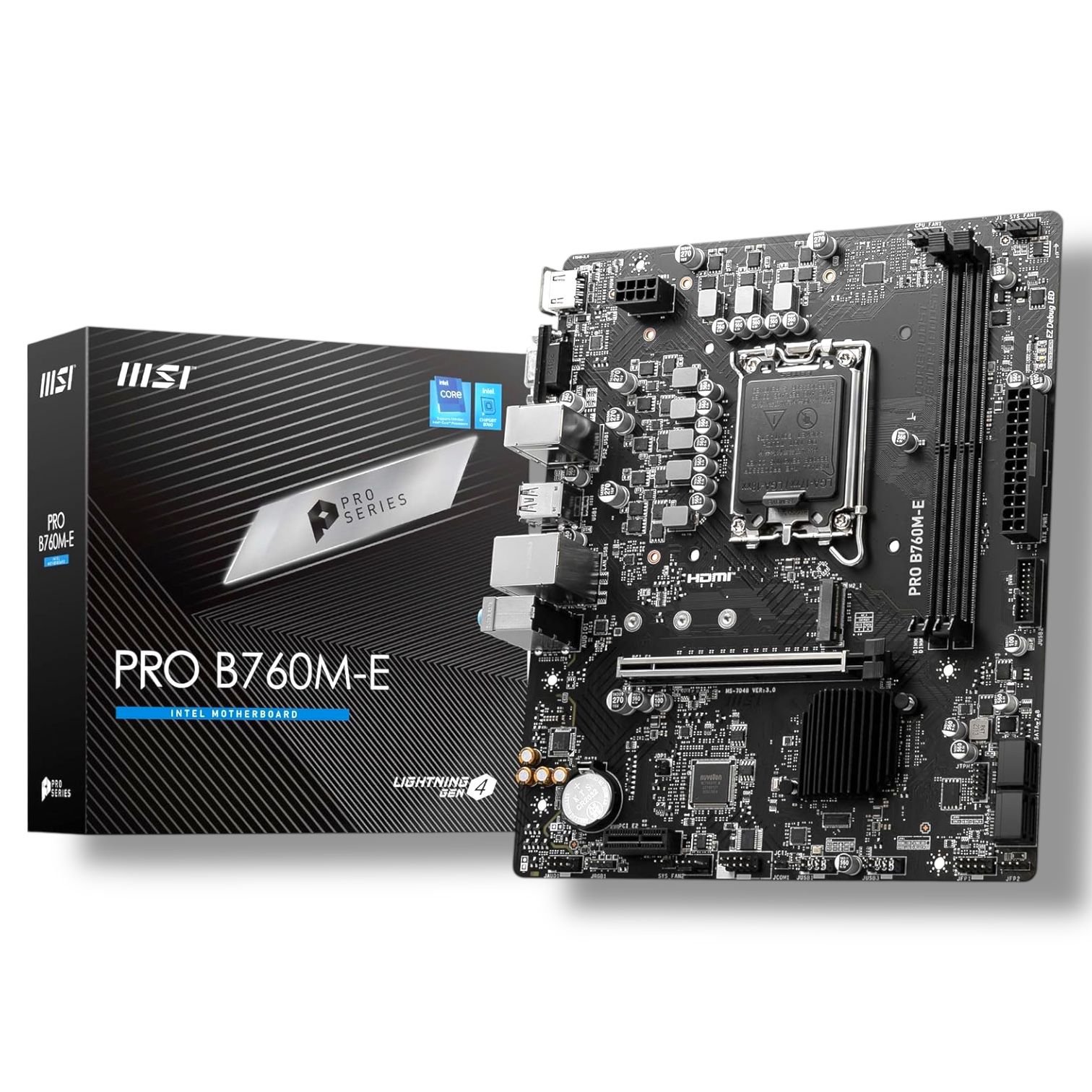

▸ Box Contents: MSI PRO B760M-E DDR5 Motherboard, User Manual, I/O Shield, Cables
▸ Warranty: 1 Year
