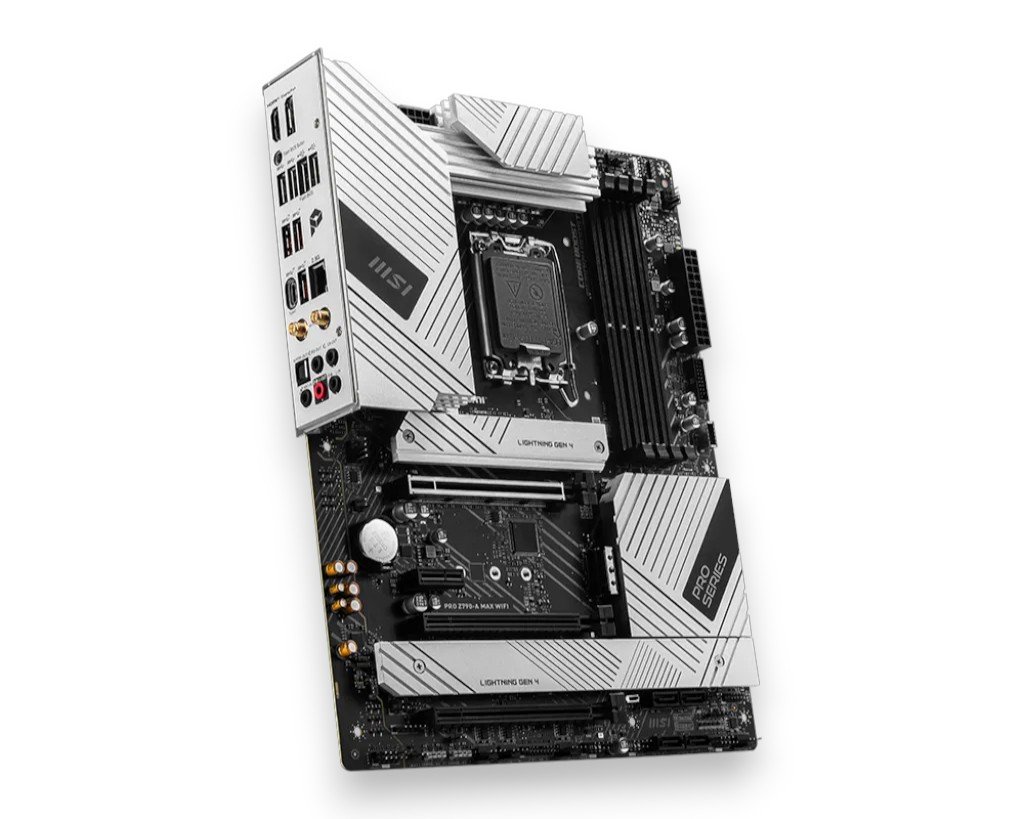

MSI PRO Z790-A MAX WiFi ProSeries Motherboard

Information:

MSI PRO Z790-A MAX WiFi ProSeries Motherboard | ATX | Supports Intel® 12th / 13th / 14th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700) | DDR5 Memory Boost up to 7800+MHz (OC) | PCIe 5.0 x16 | 4× M.2 Slots | SATA 6Gb/s | 2.5Gb LAN | USB 3.2 Gen2 / Gen2x2 | Wi-Fi 7 | Bluetooth 5.4 | Audio Boost | 1-Year WarrantyMSI PRO Z790-A MAX WiFi ProSeries Motherboard | ATX | Supports Intel® 12th / 13th / 14th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700) | DDR5 Memory Boost up to 7800+MHz (OC) | PCIe 5.0 x16 | 4× M.2 Slots | SATA 6Gb/s | 2.5Gb LAN | USB 3.2 Gen2 / Gen2x2 | Wi-Fi 7 | Bluetooth 5.4 | Audio Boost | 1-Year Warranty

Description:

Description:

▸ SKU: 911-7E07-033
▸ Chipset: Intel® Z790
▸ CPU Support: Intel® 12th / 13th / 14th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700 Socket)
▸ Memory: 4× DDR5 UDIMM Slots | Up to 192GB | Dual Channel | 4800–7800+MHz (OC) | Supports Intel® XMP 3.0 | Non-ECC, unbuffered
▸ Audio: Realtek® ALC4080 | 7.1-Channel USB High Performance Audio | S/PDIF Support
▸ Storage: 4× M.2 PCIe 4.0 x4 / SATA (2242/2260/2280/22110) | 6× SATA 6Gb/s | Supports RAID 0/1/5/10 for SATA & NVMe
▸ LAN: Intel® 2.5Gbps Ethernet
▸ Wireless: Wi-Fi 7 (MU-MIMO TX/RX, 2.4/5/6GHz up to 5.8Gbps), Bluetooth 5.4
▸ Onboard Graphics: 1× HDMI™ 2.1 (4K@60Hz, HDR) | 1× DisplayPort 1.4 (8K@60Hz) — depends on CPU with iGPU
▸ Expansion Slots: 3× PCIe x16 (PCIe 5.0 / 4.0) | 1× PCIe x1 (PCIe 3.0)
▸ USB Ports: Rear — 2× USB 2.0, 2× USB 3.2 Gen1 Type-A, 3× USB 3.2 Gen2 Type-A, 1× USB 3.2 Gen2x2 Type-C | Front — 4× USB 2.0, 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen2 Type-C, 1× USB4 Card Connector
▸ Internal I/O: ATX_PWR, 2× CPU_PWR, CPU Fan, Pump Fan, 6× System Fan, Front Panel, Chassis Intrusion, Front Audio, TBT Connector, Tuning Controller, 3× JARGB_V2, 1× JRGB, TPM 2.0 header, USB 2.0 & 3.2 headers, USB4 connector
▸ LED Feature: 4× EZ Debug LED
▸ Back Panel Ports: HDMI™, DisplayPort, USB 2.0, USB 3.2 Gen1 / Gen2 / Gen2x2, 2.5Gb LAN, Wi-Fi / Bluetooth, Audio Connectors, S/PDIF-OUT, Flash BIOS Button
▸ Operating System: Windows® 11 64-bit
▸ PCB Form Factor: ATX (243.84mm × 304.8mm / 9.60″ × 12.0″)
