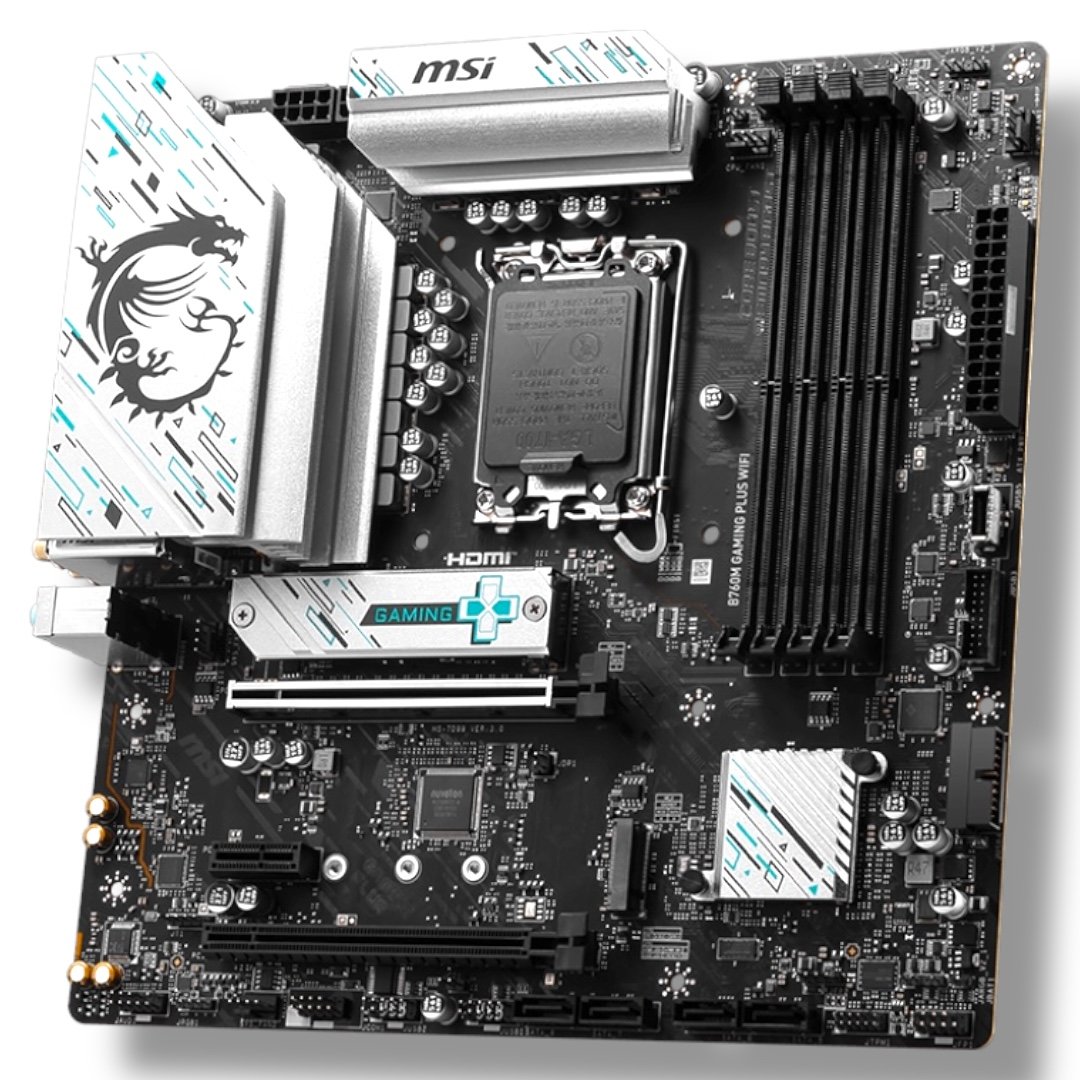

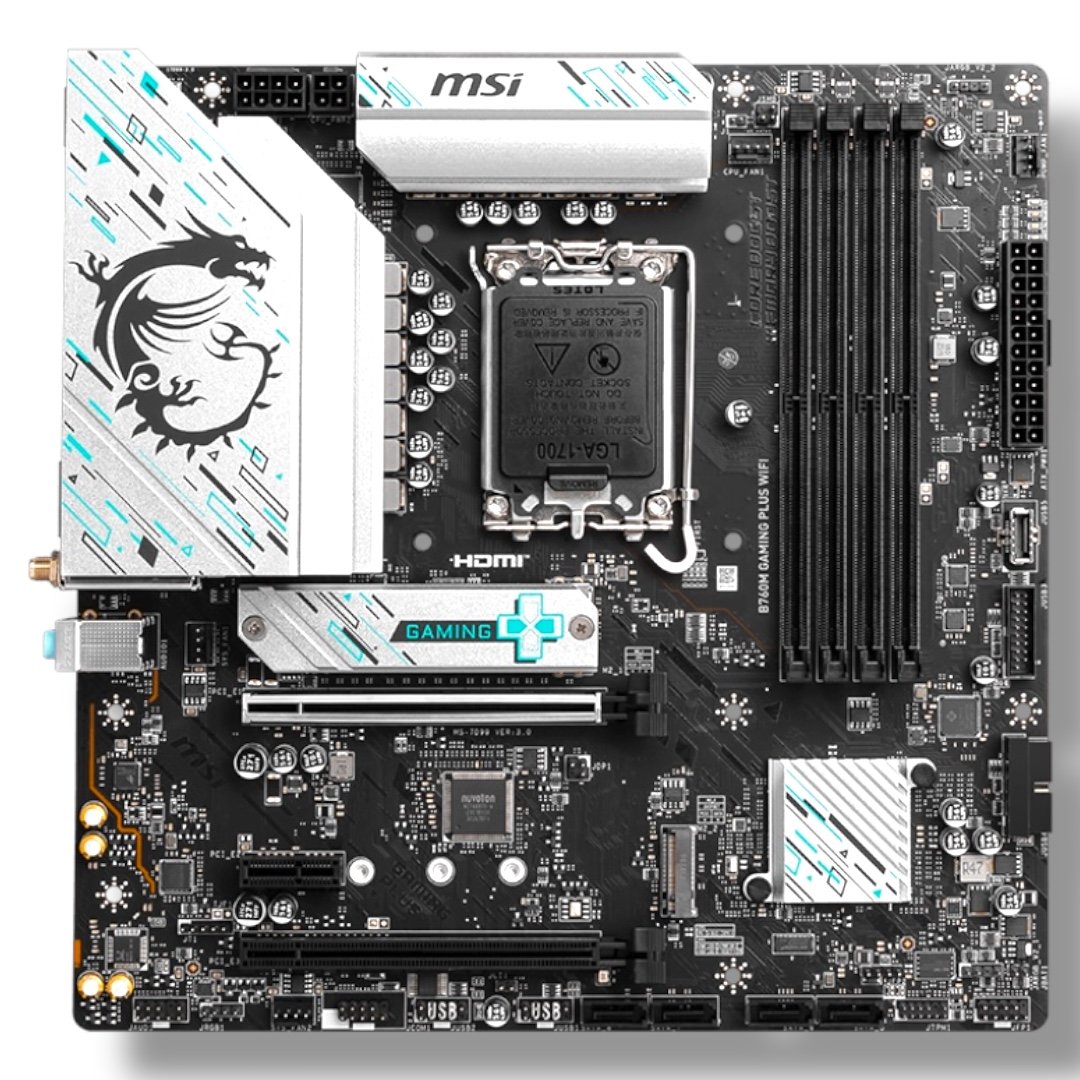

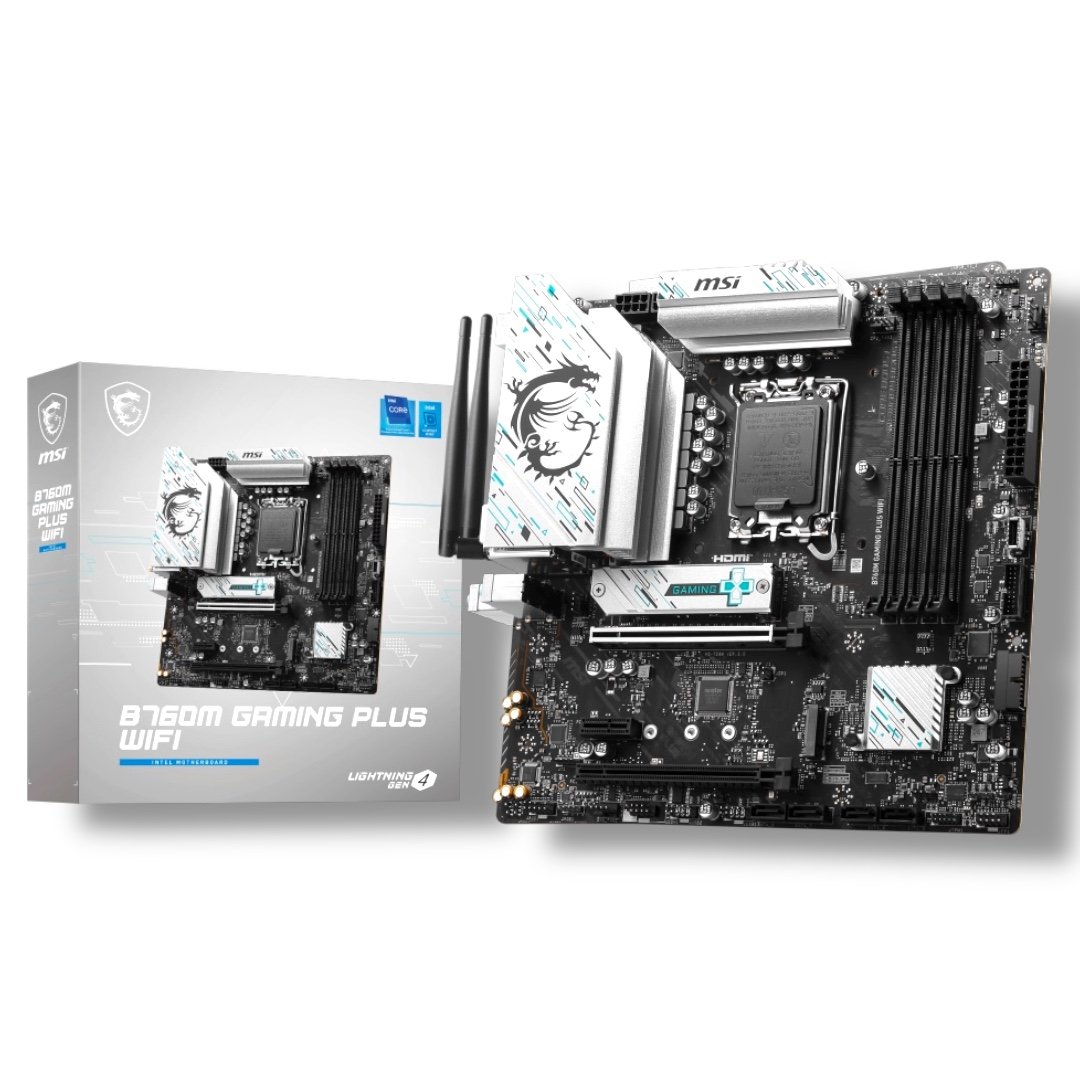

MSI B760M Gaming WiFi DDR5 mATX Motherboard

Information:

MSI B760M Gaming WiFi DDR5 mATX Motherboard – LGA1700 | Wi-Fi 6E | DDR5 8000MHz OC | PCIe 4.0

Description:

▸ SKU: 911-7D90-063
▸ Chipset: Intel® B760
▸ CPU Socket: LGA 1700
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron®
▸ Form Factor: mATX (220 × 243.84 mm)
▸ Memory: 2× DDR5 DIMM, Dual Channel, up to 128GB
▸ Memory Speed: DDR5 8000+(OC) / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz
▸ Memory Features: Intel® XMP 3.0, Non-ECC, Unbuffered
▸ Expansion Slots:
  • 1× PCIe 4.0 x16 (Steel Armor)
  • 1× PCIe 4.0 x1
▸ Storage:
  • 2× M.2 PCIe 4.0 x4 (with Shield Frozr)
  • 4× SATA 6Gb/s
▸ RAID: RAID 0 / 1 / 5 / 10 (SATA)
▸ Graphics Outputs: HDMI™ 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), VGA
▸ Networking: Realtek® RTL8125B 2.5G LAN
▸ Wireless: Intel® Wi-Fi 6E (2.4 / 5 / 6GHz) + Bluetooth® 5.3
▸ Audio: Realtek® ALC897, 7.1-Channel HD Audio
▸ USB (Rear): 2× USB 2.0, 4× USB 3.2 Gen1 Type-A
▸ USB (Front): 4× USB 2.0, 2× USB 3.2 Gen1
▸ Internal I/O: RGB & ARGB headers, TPM 2.0, Fan headers, Front panel
▸ Diagnostics: 4× EZ Debug LED
▸ OS Support: Windows® 11 / Windows® 10 (64-bit)
▸ Warranty: 1 Year
