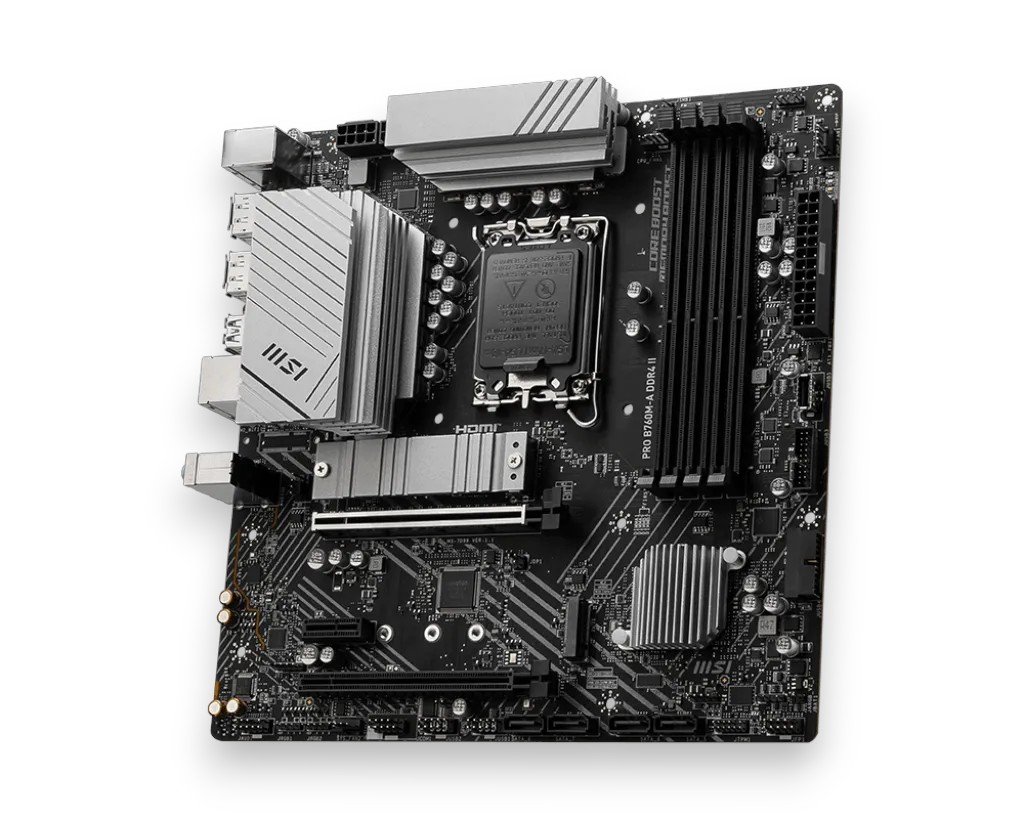

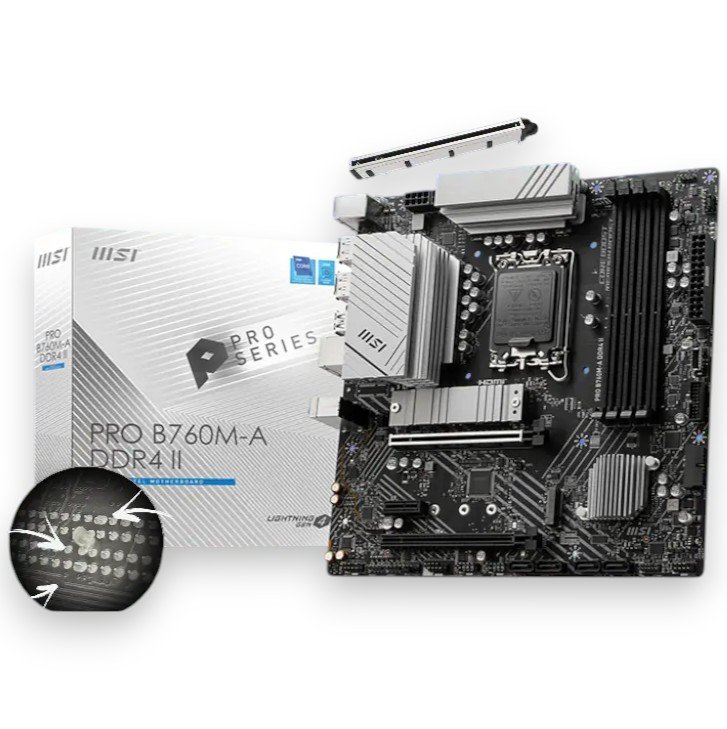

MSI PRO B760M-A DDR4 II

Information:

MSI PRO B760M-A DDR4 II Motherboard | mATX | Supports Intel® 12th/13th/14th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA 1700) | DDR4 Memory up to 5333+ MHz (OC) | PCIe 4.0 x16 | Lightning Gen 4 x4 M.2 | 2.5Gb LAN | Intel Turbo USB 3.2 Gen2 | Realtek® ALC897 Audio | 1-Year Warranty

Description:

Description:

▸ SKU: 911-7D99-062
▸ Chipset: Intel® B760
▸ CPU Support: Intel® 12th/13th/14th Gen Core™, Pentium® Gold, Celeron® Processors (LGA 1700)
▸ Memory: 4× DDR4 | Up to 128GB | Dual Channel | 5333+ MHz (OC) | Supports Intel® XMP | Non-ECC, unbuffered
▸ Audio: Realtek® ALC897 | 7.1-Channel HD Audio | Audio Boost
▸ Storage: 2× M.2 (PCIe 4.0 x4 / SATA) | 4× SATA 6Gb/s | Supports RAID 0/1/5/10
▸ LAN: Realtek® RTL8125BG 2.5Gb LAN
▸ USB Ports: Rear — USB 3.2 Gen2 Type-A, USB 3.2 Gen1 Type-A, USB 2.0 | Front — USB 3.2 Gen1 Type-A, USB 3.2 Gen1 Type-C, USB 2.0
▸ Onboard Graphics Outputs: 2× HDMI™ 2.1 (4K@60Hz) | 2× DisplayPort 1.4 (4K@60Hz)
▸ Expansion Slots: 2× PCIe x16 (1× PCIe 4.0 x16, 1× PCIe 4.0 x4) | 1× PCIe x1
▸ Internal I/O: ATX_PWR, CPU_PWR, CPU Fan, Pump Fan, System Fans, Front Panel, Chassis Intrusion, Front Audio, COM, RGB/ARGB headers, TPM 2.0 header, USB headers
▸ LED Feature: 4× EZ Debug LED
▸ Back Panel Ports: Keyboard/Mouse, DisplayPort, HDMI™, USB 3.2 Gen1 5Gbps (Type-A), USB 3.2 Gen2 10Gbps (Type-A), USB 2.0, 2.5G LAN, Audio Connectors
▸ Operating System: Windows® 11 64-bit / Windows® 10 64-bit
▸ PCB Form Factor: mATX (243.84mm × 243.84mm)
