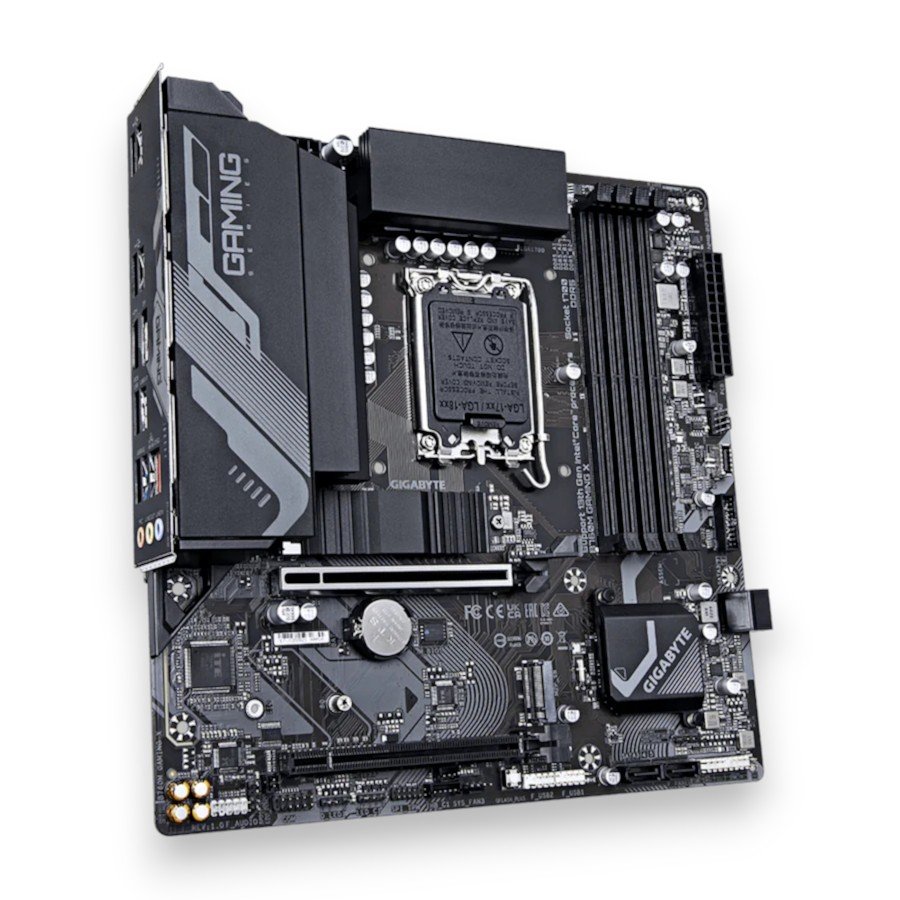

Gigabyte B760M Gaming X Rev. 1.0

Information:

Gigabyte B760M Gaming X (Rev. 1.0) mATX Motherboard | Intel® B760 Chipset | Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® Processors | 4× DDR5 DIMM up to 256GB, 7600MHz (OC) | 1× PCIe 4.0 x16 + 1× PCIe 3.0 x4 | 2× PCIe 4.0 x4 M.2 + 4× SATA 6Gb/s | Realtek® 2.5GbE LAN | USB-C 10Gb/s Internal | Smart Fan 6 | Q-Flash Plus | RGB Fusion | HDMI 2.1 + DisplayPort 1.2 | 1-Year Warranty

Description:

Description:
SKU: 9MB76MGX5-00-G10
▸ CPU Socket: LGA1700 (Supports Intel® 14th/13th/12th Gen)
▸ Chipset: Intel® B760 Express
▸ Memory: 4× DDR5 DIMM | Up to 256GB | 7600MHz OC | Dual-Channel | XMP Ready
▸ Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6Gb/s
▸ Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x4
▸ USB Ports: 1× USB-C 10Gb/s (internal), 5× USB 3.2 Gen1, 9× USB 2.0
▸ LAN: Realtek® 2.5GbE (2.5G/1G/100M)
▸ Audio: Realtek® Audio CODEC, 7.1-Channel, S/PDIF Out
▸ Graphics Outputs: 1× HDMI 2.1, 1× DisplayPort 1.2 (Up to 4K@60Hz)
▸ Cooling: Fully Covered VRM Heatsink, M.2 Thermal Guard, Smart Fan 6
▸ RGB Support: 2× Addressable LED Headers, 2× RGB LED Headers
▸ Form Factor: Micro ATX (24.4cm × 24.4cm)
▸ BIOS: AMI UEFI BIOS, Q-Flash & Q-Flash Plus Supported
▸ OS Compatibility: Windows 11 64-bit, Windows 10 64-bit
▸ Software: GIGABYTE Control Center, Norton Security (OEM), Bandwidth Manager
