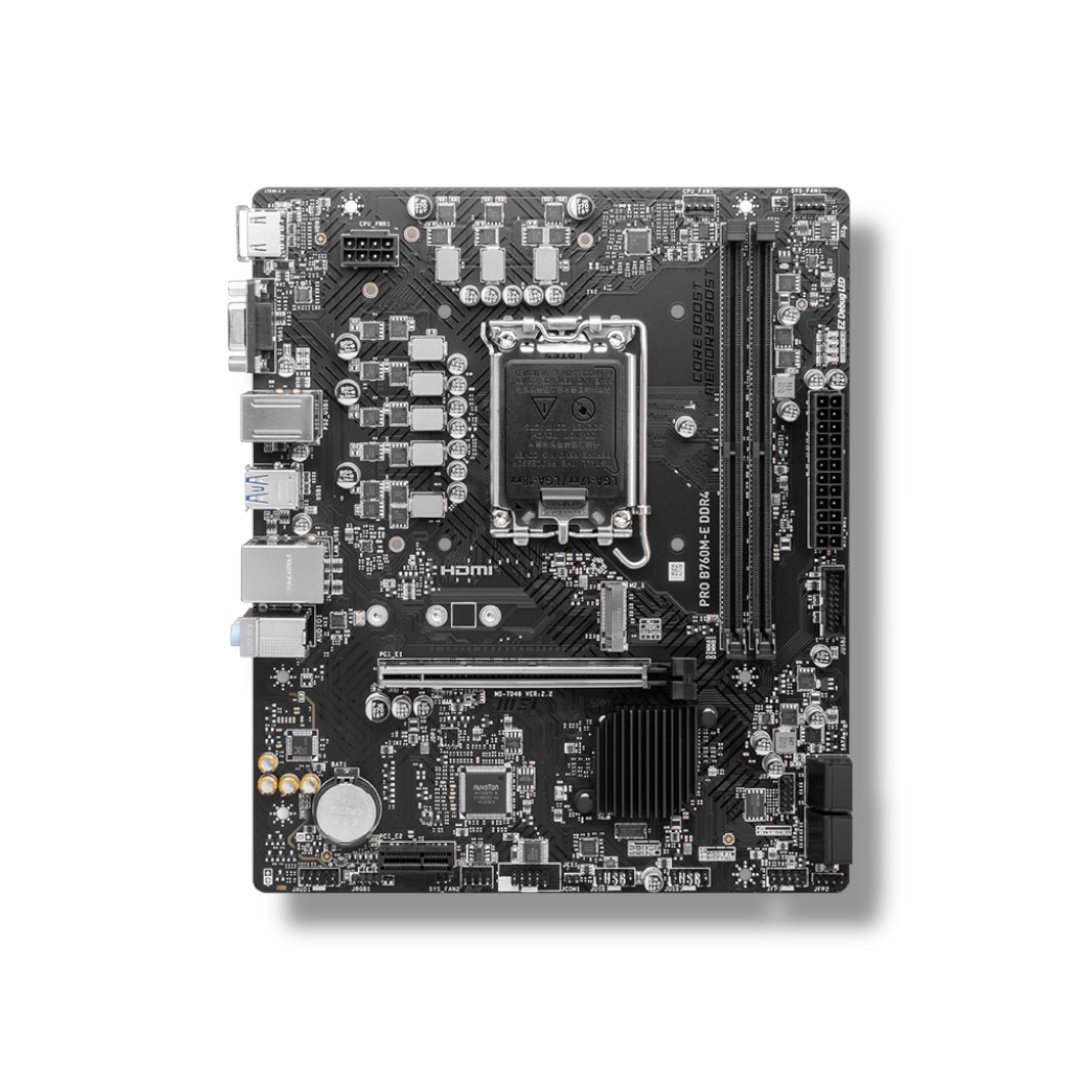

MSI PRO B760M-E Motherboard
Properties:
SKU:911-7D48-042 📍Description ▸ Processor Support: Compatible with 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for LGA 1700 ▸ Memory: Dual-channel DDR4 (2 DIMM slots, up to 64GB) with speeds from 4800(OC) down to 2133 MHz; supports Intel® XMP for overclocking ▸ Onboard Graphics: 1x HDMI (HDMI 1.4 with HDR, up to ...
SKU:911-7D48-042 📍Description ▸ Processor Support: Compatible with 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for LGA 1700 ▸ Memory: Dual-channel DDR4 (2 DIMM slots, up to 64GB) with speeds from 4800(OC) down to 2133 MHz; supports Intel® XMP for overclocking ▸ Onboard Graphics: 1x HDMI (HDMI 1.4 with HDR, up to 4K@30Hz) and 1x VGA (up to 2048×1536 @50Hz) – available on processors with integrated graphics ▸ Expansion Slots: 1 PCIe x16 slot (PCIe 4.0 from CPU) and 1 PCIe x1 slot (PCIe 3.0 from chipset) ▸ Storage: 1 M.2 slot (supports PCIe 4.0 x4 / SATA, 2280/2260/2242) plus 4 SATA 6G ports (Note: SATA5 is unavailable when an M.2 SATA SSD is installed) ▸ RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices ▸ USB: Rear I/O includes 4 USB 2.0 and 2 USB 3.2 Gen1 Type-A ports; Front I/O provides 4 USB 2.0 and 2 USB 3.2 Gen1 Type-A ports ▸ LAN: Realtek® RTL8111H Gigabit LAN for reliable network connectivity ▸ Audio: Realtek® ALC897 codec delivering immersive 7.1-channel high-definition audio ▸ Internal I/O: Includes headers for power, CPU/system fans, front panel, audio, clear CMOS, COM port, RGB LED, TPM (supports TPM 2.0), plus 2 USB 2.0 and 1 USB 3.2 Gen1 header ▸ LED Feature: 4 EZ Debug LEDs for easy troubleshooting A high-performance motherboard engineered for robust connectivity, efficient storage options, and immersive multimedia, all in a sleek design.
