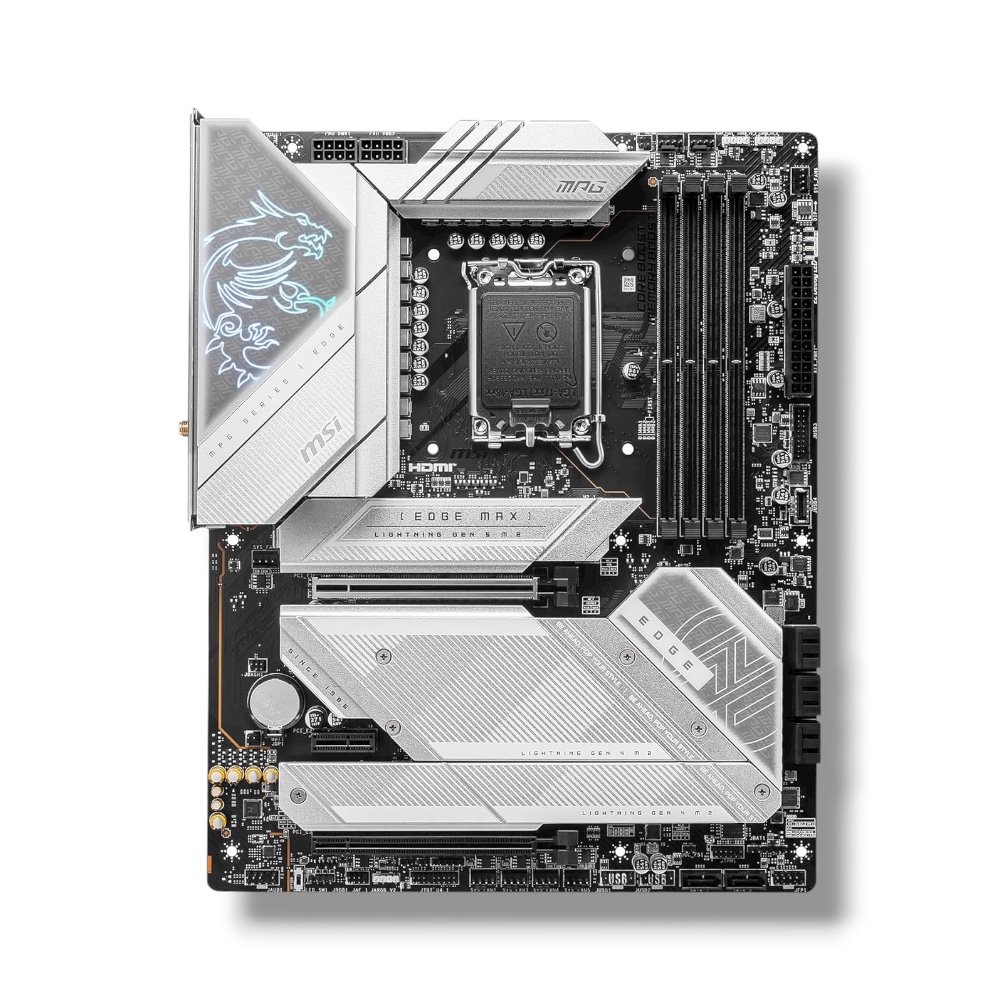

MSI MPG Z790 EDGE TI MAX WIFI

Information:

MSI MPG Z790 EDGE TI MAX WIFI | Intel 14th/13th/12th Gen DDR5 Gaming Motherboard | PCIe 5.0 | Wi-Fi 7 | ATX

Description:

▸ SKU: 911-7E25-019
▸ Chipset: Intel Z790
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® (LGA 1700)
▸ Memory: 4× DDR5 DIMM, up to 256GB, speeds up to 7800+ MHz (OC), Dual Channel, XMP 3.0
▸ Audio: Realtek® ALC4080, 7.1-Channel USB Audio, 32-bit/384 kHz playback
▸ Storage:
 • 5× M.2 Slots (1× PCIe 5.0, 4× PCIe 4.0 / SATA)
 • 8× SATA 6Gb/s Ports
 • Supports RAID 0/1/5/10
▸ LAN: Intel® 2.5Gbps Ethernet
▸ Wireless: Wi-Fi 7 + Bluetooth® 5.4 (MU-MIMO, 2.4GHz/5GHz/6GHz, up to 5.8Gbps)
▸ Expansion Slots:
 • 1× PCIe 5.0 x16 (CPU)
 • 1× PCIe 4.0 x4 (Chipset)
 • 1× PCIe 3.0 x1 (Chipset)
▸ Graphics Output:
 • 1× HDMI™ 2.1 (4K@60Hz)
 • 1× DisplayPort 1.4 (8K@60Hz)
▸ USB Ports:
 • Rear: 4× USB 10Gbps Type-A, 1× USB 20Gbps Type-C, 4× USB 5Gbps Type-A
 • Front: USB 10Gbps Type-C, USB 5Gbps, USB 2.0 Headers
▸ Internal Headers:
 • 3× Addressable RGB (JARGB_V2)
 • 1× RGB (JRGB)
 • 1× ARGB + FAN (JAF_1)
 • 1× Pump Fan, 6× System Fan, Front Audio, TPM 2.0
▸ Back Panel:
 • DP / HDMI™ / 2.5G LAN / Wi-Fi 7 Antennas
 • USB-C (20Gbps + 10Gbps), Multiple Type-A Ports
 • Clear CMOS / Flash BIOS Buttons
 • Optical S/PDIF Out, Audio Jacks
▸ Form Factor: ATX (243.84 × 304.8 mm)
▸ Operating System: Windows® 10 / 11 (64-bit)
▸ Warranty: 1 Year
