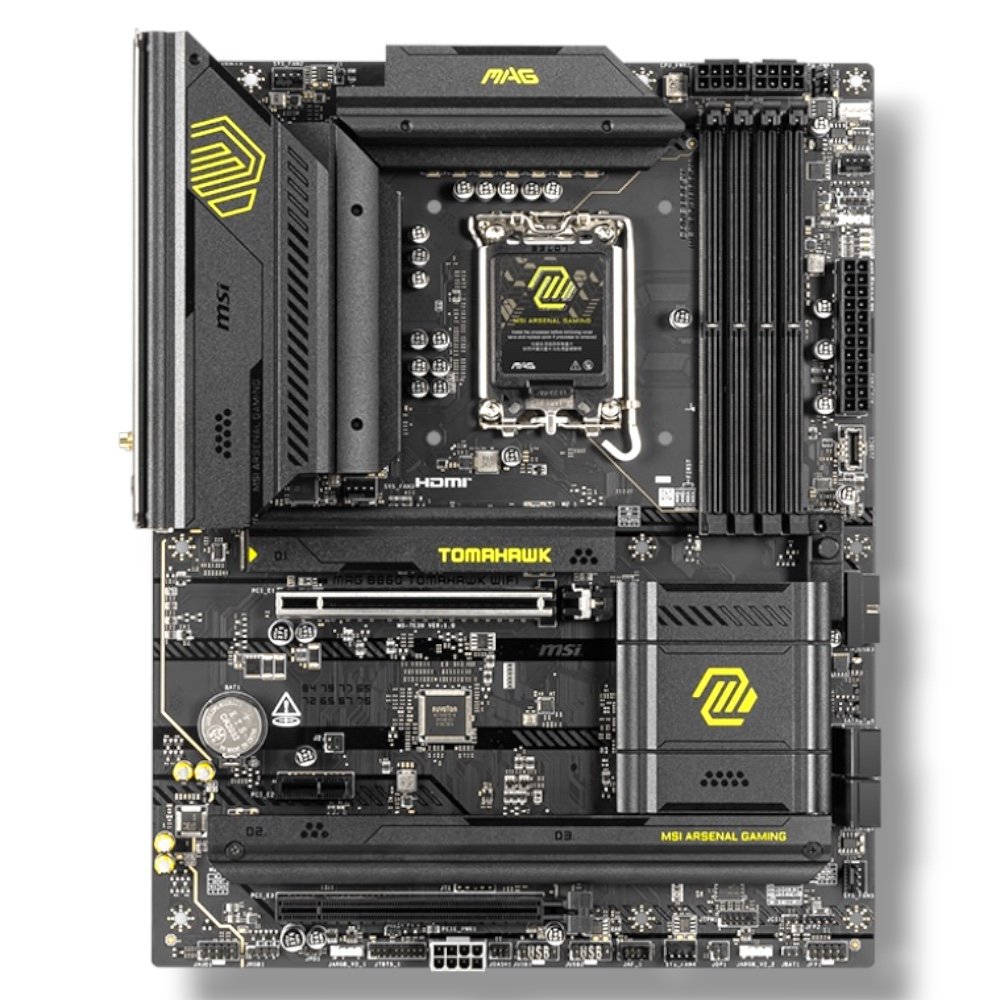

MSI MAG B860 TOMAHAWK WIFI | ATX Motherboard

Information:

MSI MAG B860 TOMAHAWK WIFI | ATX Motherboard | Wi-Fi 7, 5G LAN, Thunderbolt 4, PCIe 5.0, DDR5 9200+ OC, EZ DIY | Supports LGA 1851 Intel® Core™ Ultra (Series 2)

Description:

▸ SKU: 911-7E39-003
▸ Model: MSI MAG B860 TOMAHAWK WIFI
▸ Form Factor: ATX (12.0″ × 9.6″)
▸ Operating System: Windows® 11 64-bit
▸ CPU Support: Intel® Core™ Ultra Processors (Series 2)
▸ Socket: LGA 1851
▸ Chipset: Intel B860
▸ Memory: 4× DDR5 UDIMM, up to 256GB
▸ Memory Speed (OC): 9200+ / 7200 / 6400 / 5600 MT/s
▸ JEDEC Support: 6400–4800 MT/s
▸ Memory Features: Dual Channel, XMP 3.0, Non-ECC, Unbuffered
▸ Power Design: 12+1+1+1 Duet Rail, 60A SPS, Dual 8-pin CPU
▸ PCB: 6-Layer, 2oz Thickened Copper
▸ Cooling: Frozr Guard Heatsinks, EZ M.2 Shield Frozr II, 7W/mK Pads
▸ LAN: Intel® Killer™ E5000 5G LAN
▸ Wireless: Intel® Killer™ BE1750x Wi-Fi 7 (2.4 / 5 / 6 GHz up to 5.8 Gbps)
▸ Bluetooth: 5.4, MLO, 4KQAM
▸ Audio: Realtek® ALC897 7.1-Channel HD Audio + S/PDIF
▸ Storage: 1× M.2 Gen5 x4 (128 Gbps), 2× M.2 Gen4 x4 (64 Gbps), 4× SATA 6 Gbps
▸ RAID Support: RAID 0 / 1 / 5 / 10 (SATA)
▸ Expansion Slots: 2× PCIe x16, 1× PCIe x1
▸ PCI_E1: PCIe 5.0 x16 (CPU)
▸ PCI_E2: PCIe 4.0 x1 (Chipset)
▸ PCI_E3: PCIe 4.0 x4 (Chipset)
▸ Onboard Graphics: HDMI™ 2.1 (8K 60Hz), DP 1.4 (4K 60Hz), Thunderbolt™ 4 Type-C (DP 2.1 8K 60Hz)
▸ Thunderbolt: Thunderbolt™ 4 (40 Gbps, DP 2.1, Daisy Chain Support)
▸ Rear I/O: Thunderbolt 4 Type-C, HDMI™, DP, 4× USB 10 Gbps Type-A, USB 10 Gbps Type-C, 4× USB 2.0, 5G LAN, Wi-Fi/BT, Audio Jacks, CMOS, Flash BIOS
▸ Front USB: 2× USB 5 Gbps Type-A, 1× USB 10 Gbps Type-C, 4× USB 2.0
▸ Internal Headers: Thunderbolt 5 Card, ATX_PWR, Dual CPU_PWR, PCIe_PWR 8-Pin, Fan Headers, 3× ARGB, 2× RGB, TPM 2.0, Audio, Front Panel, JCI, JDASH
▸ RGB Control: 3× Addressable Gen 2 (JARGB_V2), 2× RGB (JRGB)
▸ EZ DIY Tools: EZ PCIe Release, EZ M.2 Clip II, EZ Antenna, EZ Shield Frozr II
▸ Connectivity: Thunderbolt™ 4, Wi-Fi 7, Killer 5G LAN, USB 40 Gbps Type-C
▸ Audio Software: Audio Boost, Nahimic Support
▸ Dimensions: 12.0″ × 9.6″
