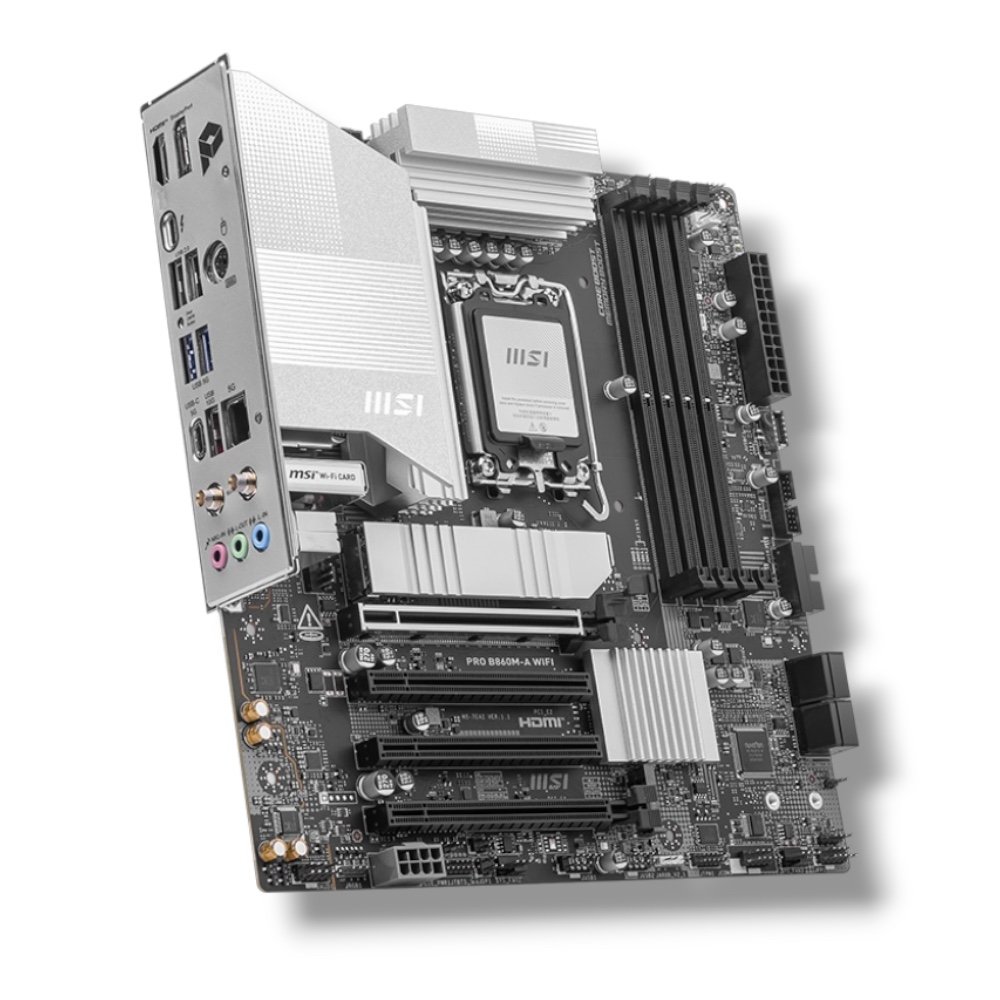

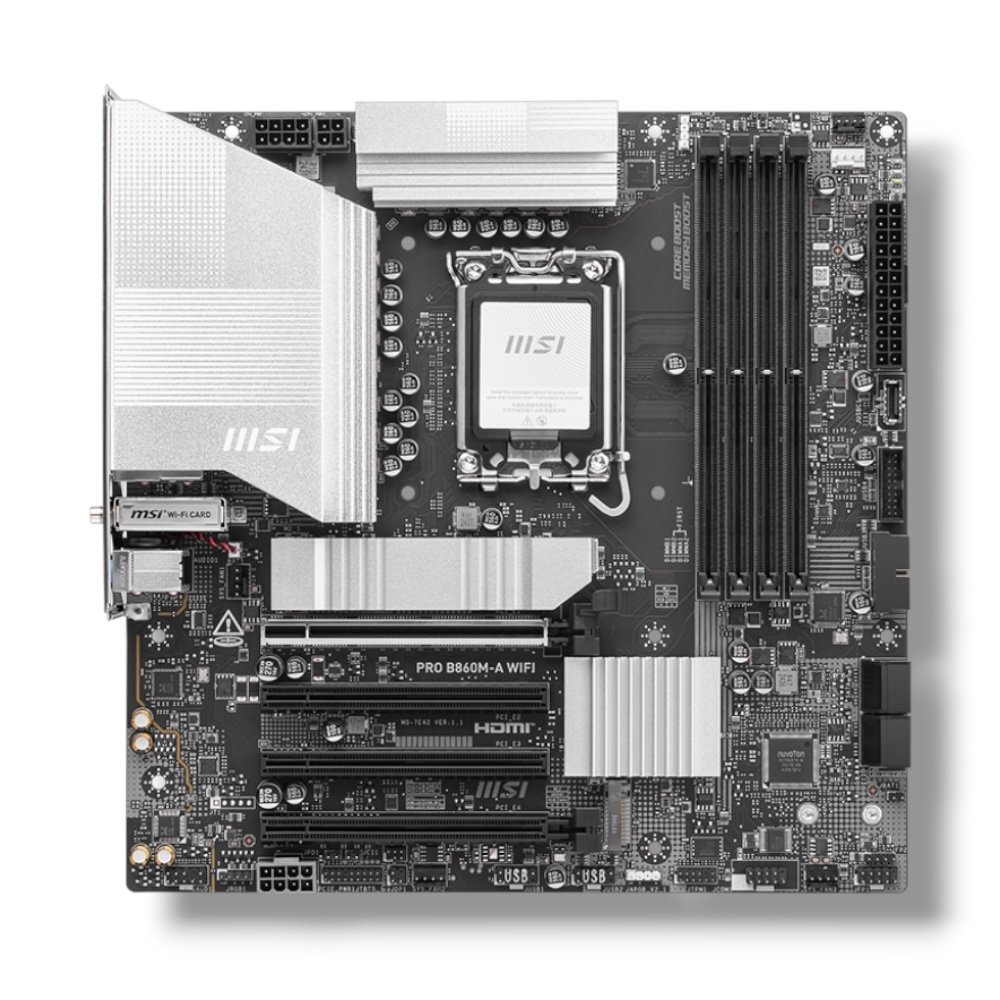

MSI PRO B860M-A WIFI Intel B860 mATX Motherboard

Information:

MSI PRO B860M-A WIFI Intel B860 mATX Motherboard – LGA1851 | DDR5 8600+ | Wi-Fi 7 | Thunderbolt 4 | PCIe 5.0 | Core Ultra Ready

Description:

▸ SKU: 911-7E42-007
▸ Chipset: Intel® B860
▸ CPU Support: Intel® Core™ Ultra (Series 2) for LGA1851 socket
▸ Form Factor: mATX (243.84 × 243.84 mm)
▸ Memory: 4× DDR5 UDIMM, Max 256GB, 8800–4800 MT/s (OC/JEDEC), Dual-Channel, Non-ECC, XMP 3.0
▸ Memory Boost: Isolated DDR circuit, MSI OC Lab tuning
▸ Expansion Slots: 1× PCIe 5.0 x16 (Steel Armor, EZ Clip II), 1× PCIe 4.0 x16, 2× PCIe 4.0 x1
▸ Storage: 3× M.2 (Gen 5 x4 / Gen 4 x4 / Gen 4 x2), 4× SATA 6Gb/s, RAID 0/1/5/10
▸ Graphics Outputs: HDMI 2.1 (4K@60Hz), DP 1.4 (4K@60Hz), Thunderbolt 4 Type-C (8K@60Hz / 4K@120Hz)
▸ Thunderbolt Support: Thunderbolt 4 (40Gbps, 8K, USB4, PD 5V/3A, Daisy-chain up to 5 devices)
▸ USB Ports: Rear – 2× USB 2.0, 2× USB 5Gbps-A, 1× USB 5Gbps-C, 1× USB 10Gbps-A / Front – 4× USB 2.0, 4× USB 5Gbps-A, 1× USB 10Gbps-C
▸ Networking: Realtek 8126 5G LAN, Intel Wi-Fi 7 (6GHz/320MHz/Up to 5.8Gbps), Bluetooth 5.4
▸ Audio: Realtek ALC897, 7.1-Channel HD Audio with Audio Boost
▸ Cooling System: Extended Heatsinks, 7 W/mK Pads, EZ M.2 Shield Frozr II
▸ Fan Headers: 1× CPU, 1× Pump/Combo, 3× System
▸ Internal I/O: ATX 24-pin, 8+4 CPU Power, RGB/ARGB, Thunderbolt 5, TPM, JCOM, JAUD, JFP, JDASH
▸ Back Panel I/O: DP, HDMI, TB4 Type-C, USB 10Gbps-A, USB 5Gbps-C, 5G LAN, Wi-Fi 7 Antenna, Audio, Clear CMOS
▸ LED Indicators: 4× EZ Debug + 1× EZ Memory LED
▸ Power Design: 12+1+1+1 (P-PAK, Digital PWM, 1-Phase SA, 1-Phase GT, 1-Phase VNNAON)
▸ Operating System: Windows 11 64-bit
▸ Box Contents: Motherboard, Wi-Fi EZ Antenna, SATA Cables, User Guide, Accessories
▸ Aesthetics: Silver-accented mATX design – professional and stylish
