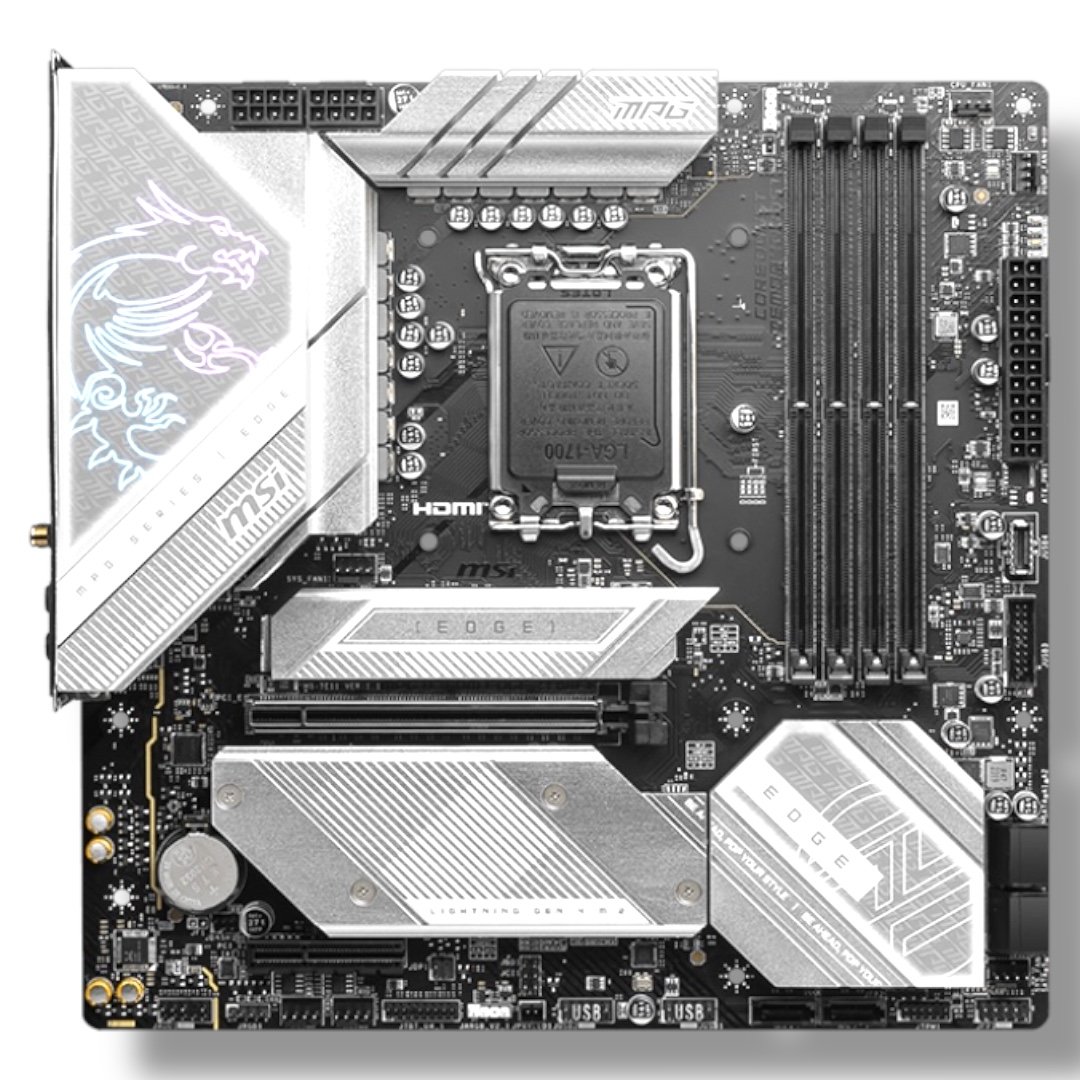

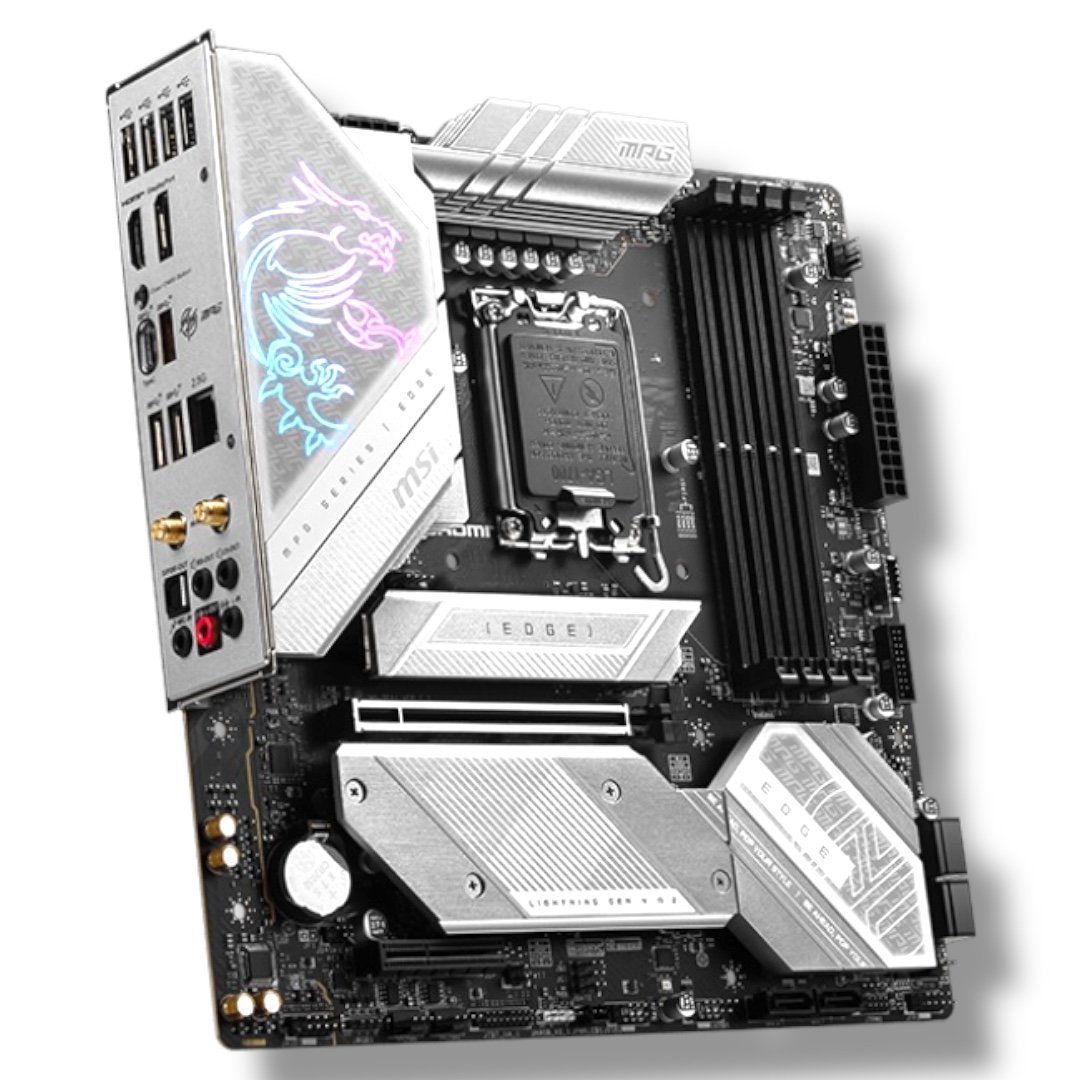

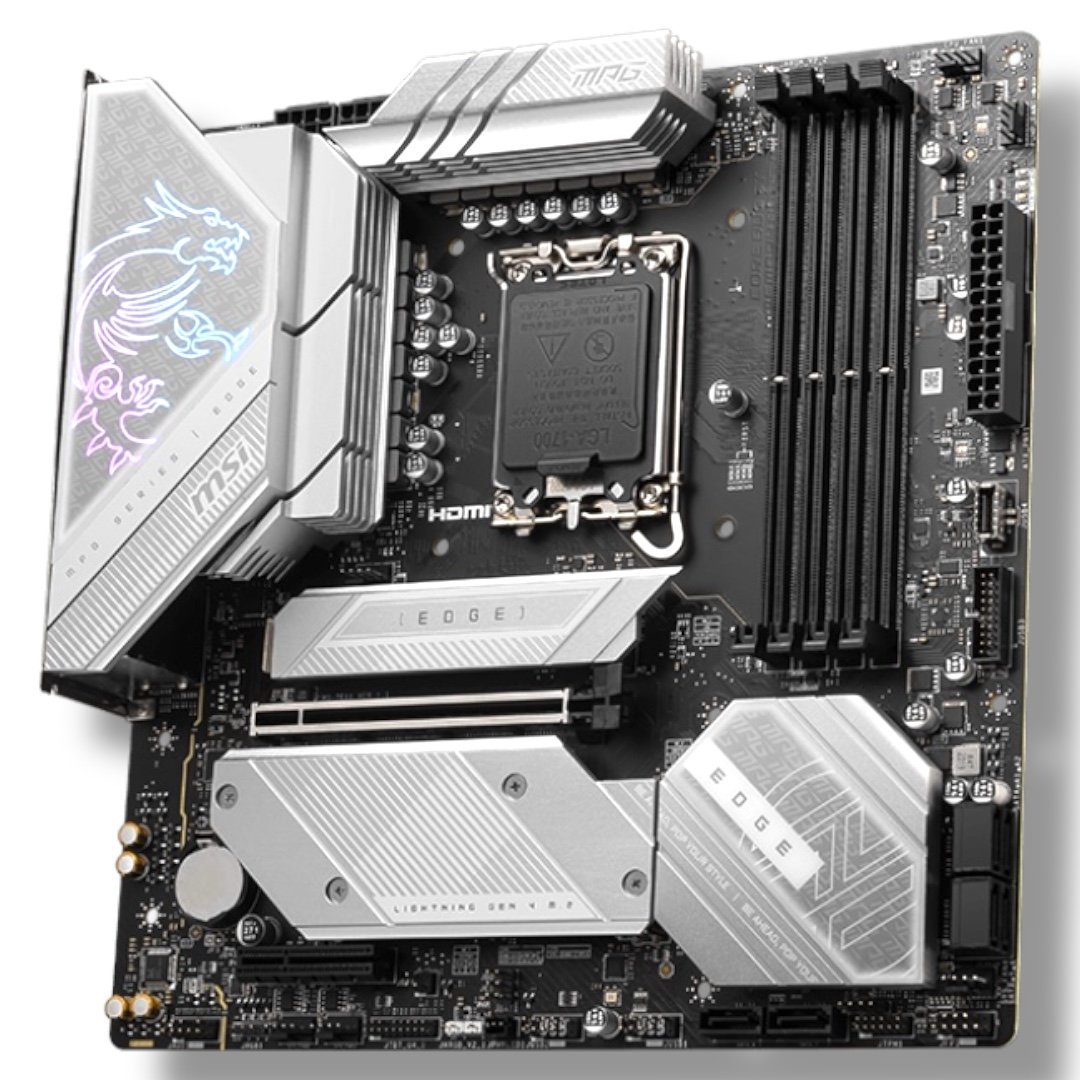

MSI MPG B760M Edge Ti WiFi DDR5 mATX Motherboard

Information:

MSI MPG B760M Edge Ti WiFi DDR5 mATX Motherboard – Intel 14th / 13th / 12th Gen Support

Description:

▸ SKU: 911-7E11-002
▸ Chipset: Intel® B760
▸ Socket: LGA 1700
▸ CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron®
▸ Form Factor: Micro-ATX (243.84 × 243.84 mm)
▸ Memory:
  • 4× DDR5 DIMM, up to 256GB
  • Dual-Channel, Non-ECC, Unbuffered
  • Intel® XMP 3.0 Support
▸ Memory Speeds (OC):
  7800+ / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 4800 MHz
▸ Graphics Outputs:
  • 1× HDMI™ 2.1 (4K@60Hz)
  • 1× DisplayPort 1.4 (8K@60Hz)
▸ Expansion Slots:
  • 1× PCIe 5.0 x16 (Steel Armor)
  • 1× PCIe 3.0 x4
▸ Storage:
  • 3× M.2 (PCIe 4.0 x4)
  • 6× SATA 6Gb/s
▸ RAID Support: RAID 0 / 1 / 5 / 10 (SATA)
▸ Networking:
  • Realtek® 2.5Gbps LAN
  • Intel® Wi-Fi 6E + Bluetooth® 5.3
▸ Audio: Realtek® ALC897, 7.1-Channel HD Audio (S/PDIF Out)
▸ USB Ports (Rear):
  • 1× USB 20Gbps Type-C
  • 3× USB 10Gbps Type-A
  • 4× USB 2.0
▸ USB Ports (Front):
  • 1× USB 10Gbps Type-C
  • 2× USB 5Gbps Type-A
  • 4× USB 2.0
▸ Internal Headers:
  1× 24-pin ATX, 2× 8-pin CPU, 1× CPU Fan, 1× Pump Fan, 4× System Fan,
  2× JARGB_V2, 1× JRGB, TPM 2.0, Front Audio, Clear CMOS
▸ Special Features: Screwless M.2 Shield Frozr, EZ M.2 Clip, EZ Debug LED
▸ Operating System: Windows® 11 / 10 (64-bit)
▸ Warranty: 1 Year Limited Warranty
