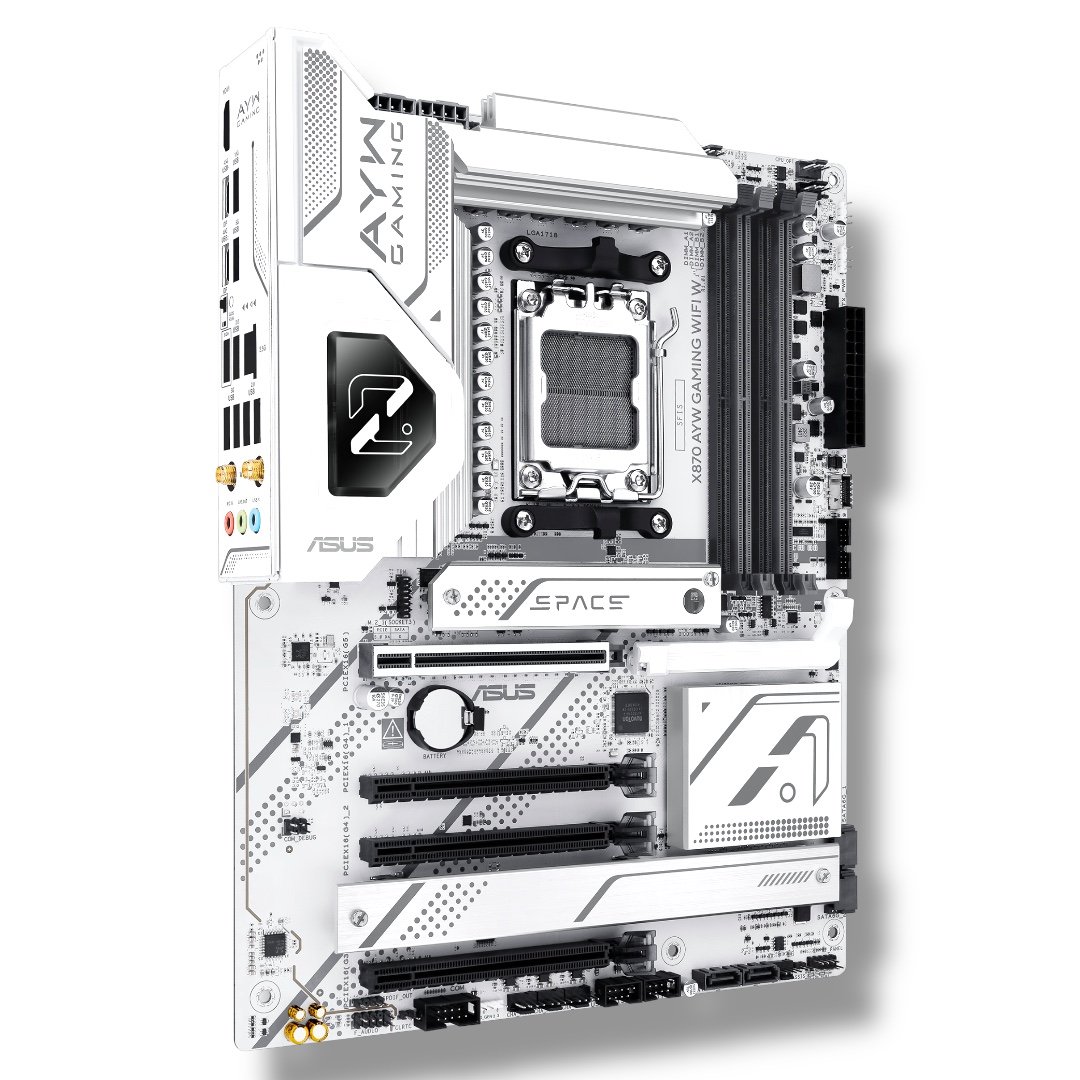

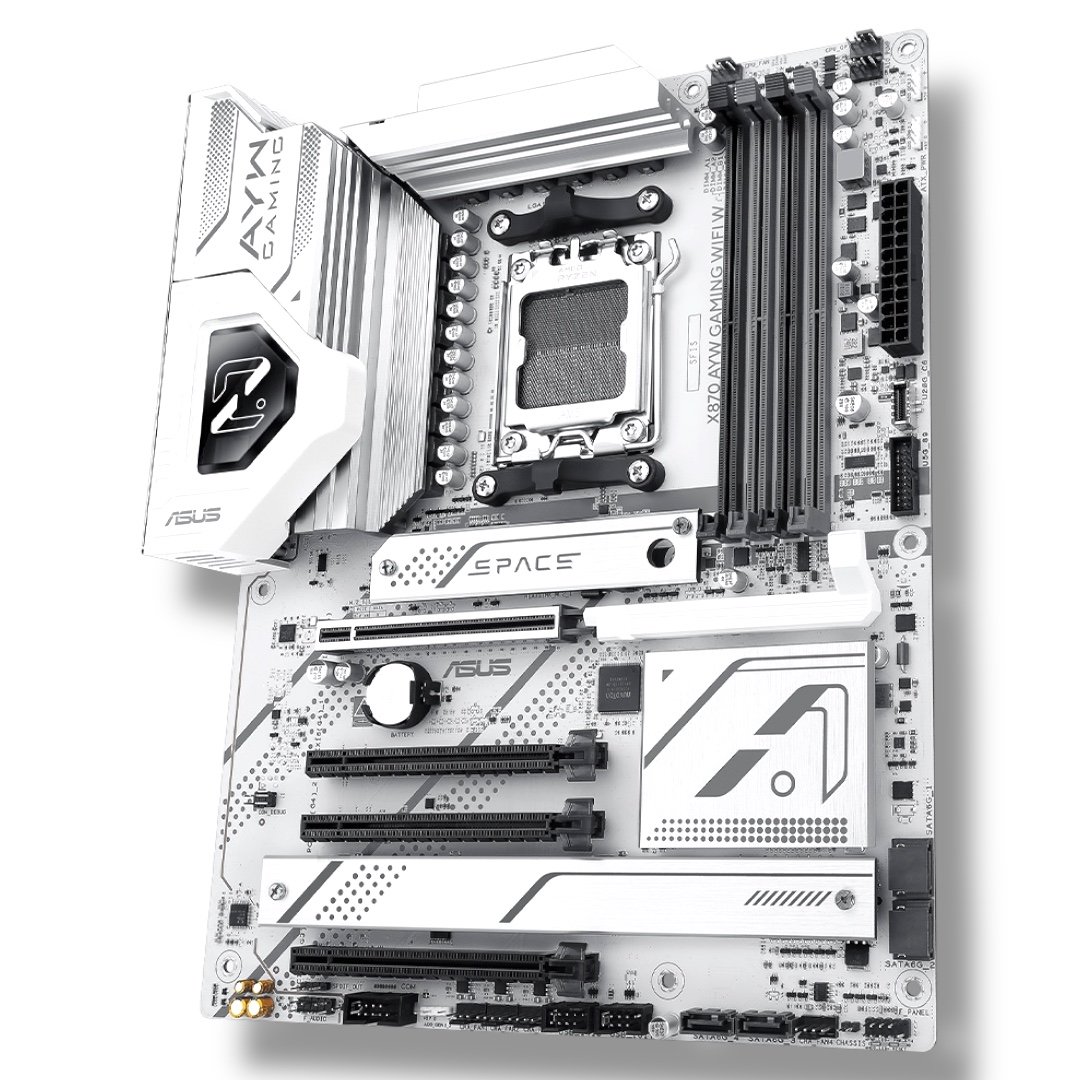

ASUS X870 AYW GAMING WIFI W AM5 Motherboard

Information:

ASUS X870 AYW GAMING WIFI W AM5 Motherboard – Ryzen 9000 / 8000 / 7000 Series Support

Description:

▸ SKU: 90MB1LA0-MVAAY0
▸ Chipset: AMD X870
▸ Socket: AM5
▸ CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
▸ Form Factor: ATX (30.5 cm x 24.4 cm)
▸ Memory:
  • 4× DDR5 DIMM, up to 256GB
  • Dual-Channel, ECC/Non-ECC, Unbuffered
  • AMD EXPO™ & AEMP Support
▸ Memory Speeds (OC):
  8000+ / 7800 / 7600 / 7200 / 7000 / 6800 / 6400 / 6000 / 5600 / 5200 / 4800 MT/s
▸ Graphics Outputs:
  • 2× USB4® ports (Support DisplayPort 1.4a over Type-C)
  • 1× HDMI™ 2.1 (4K@60Hz)
▸ Expansion Slots:
  • 1× PCIe 5.0 x16 (SafeSlot Core+)
  • 2× PCIe 4.0 x16 (x1 mode)
  • 1× PCIe 3.0 x16 (x1 mode)
▸ Storage:
  • 1× M.2_1 (CPU) PCIe 5.0 x4
  • 1× M.2_2 (CPU) PCIe 4.0 x4
  • 1× M.2_3 (Chipset) PCIe 4.0 x4
  • 4× SATA 6Gb/s
▸ Networking:
  • Realtek 2.5Gb Ethernet (ASUS LANGuard)
  • Wi-Fi 6 (802.11ax) + Bluetooth® 5.2
▸ Audio: Realtek 7.1 Surround Sound High Definition Audio
▸ USB Ports (Rear):
  • 2× USB4® (40Gbps) Type-C
  • 1× USB 10Gbps Type-A
  • 3× USB 5Gbps Type-A
  • 4× USB 2.0
▸ USB Ports (Front):
  • 1× USB 20Gbps Type-C (Supports PD 30W)
  • 2× USB 5Gbps Type-A
  • 4× USB 2.0
▸ Internal Headers:
  24-pin Main, 8+4 pin CPU, CPU Fan, Pump Fan, 4× System Fan,
  3× Gen2 ARGB headers, TPM header, Front Audio
▸ Special Features: Q-Release, M.2 Q-Latch, BIOS FlashBack™, Q-LED (CPU, DRAM, VGA, Boot)
▸ Operating System: Windows® 11 / 10 (64-bit)
