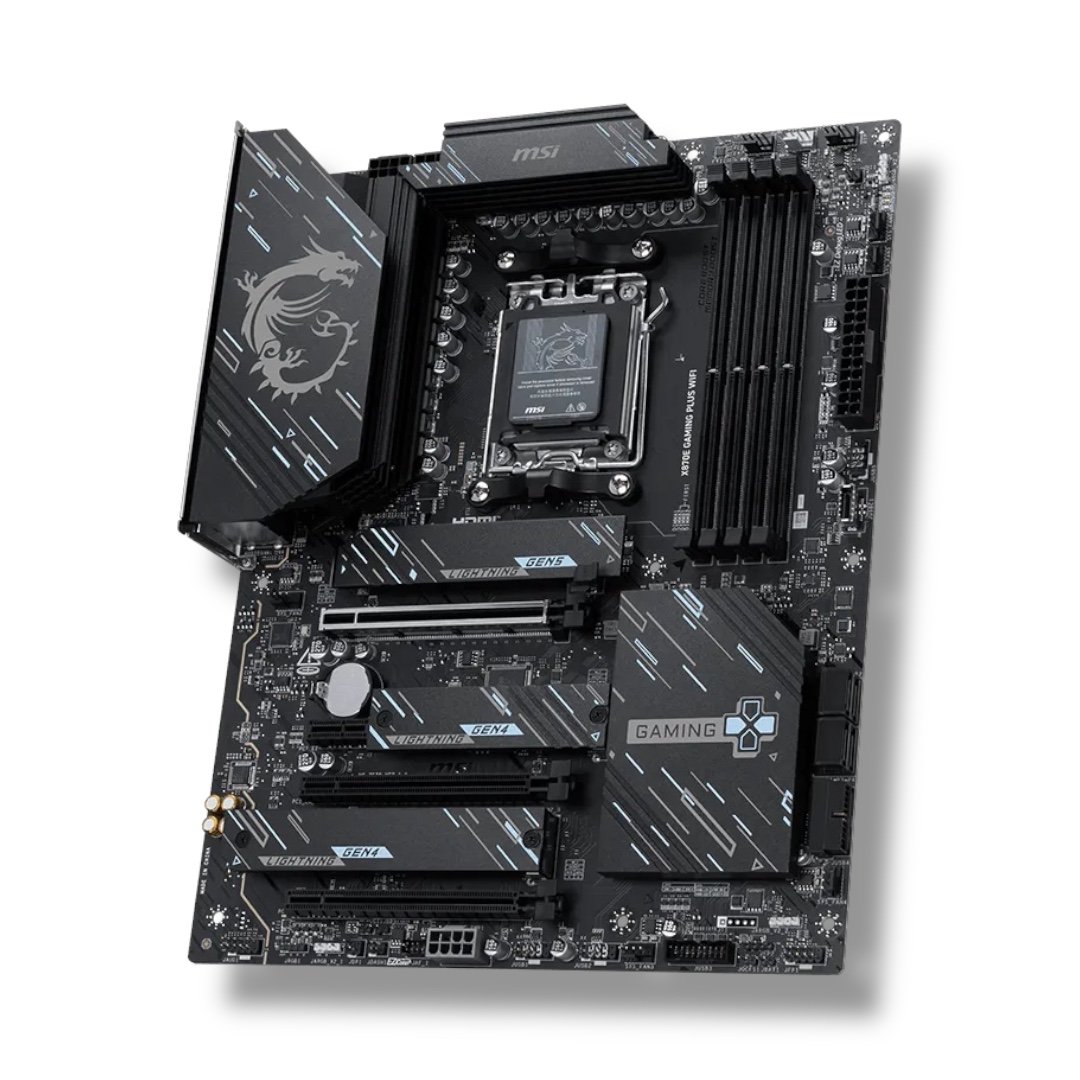

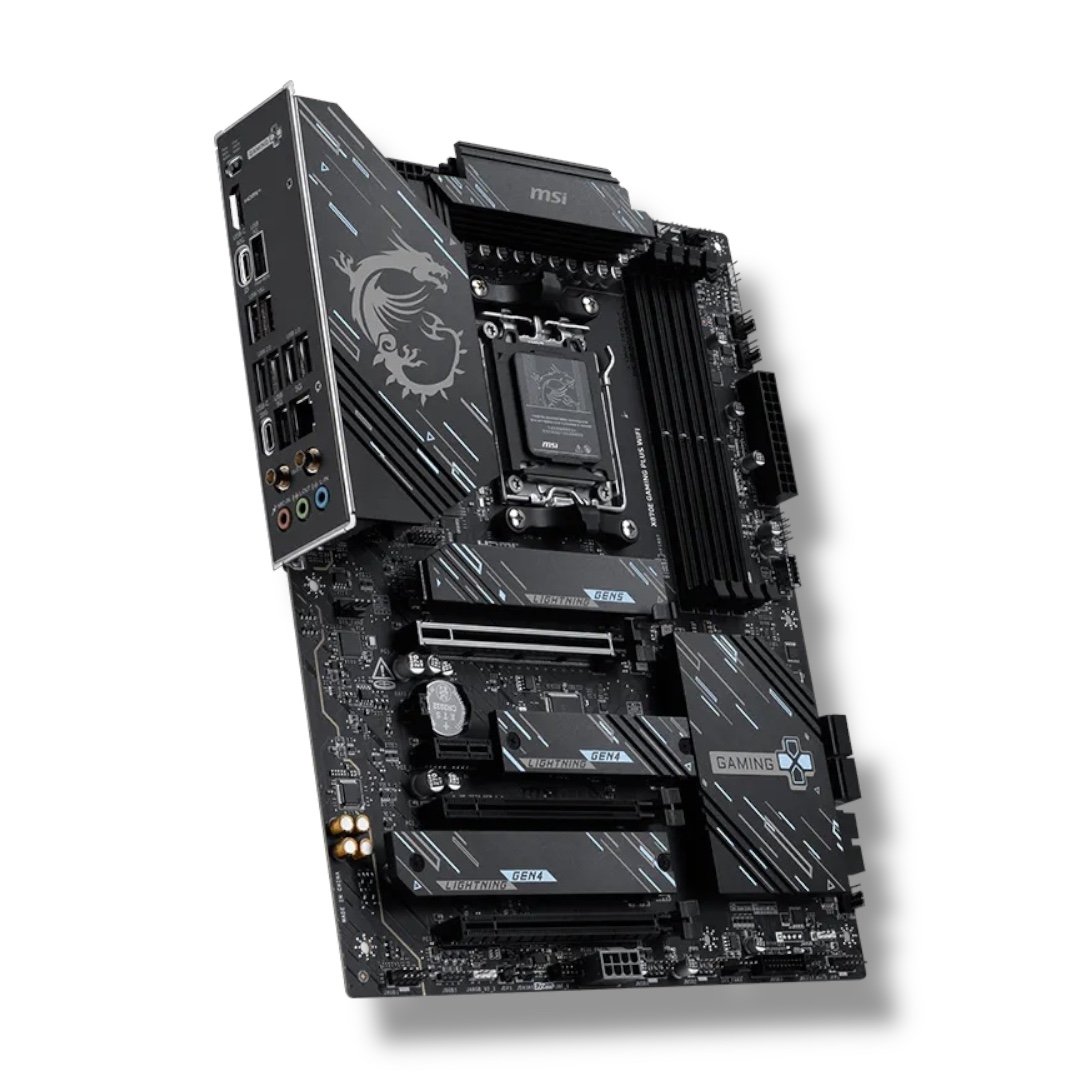

MSI X870E GAMING PLUS WIFI – AM5 | PCIe 5.0 | USB4 | WiFi 7 | 5G LAN

Information:

A powerful ATX motherboard built on the AMD X870E chipset, designed to fully support Ryzen™ 9000, 8000, and 7000 Series processors. Featuring PCIe 5.0, DDR5 8200+ MT/s support, USB4, WiFi 7, and a robust 14+2+1 power design — perfect for high-performance gaming and productivity builds.

Description:

▸ Chipset: AMD X870E
▸ Socket: AM5
▸ Form Factor: ATX (243.84 × 304.8 mm)
▸ PCB: 8-Layer, 2oz Thickened Copper
▸ CPU Support: Ryzen™ 9000 / 8000 / 7000 Series
▸ Memory: 4× DDR5 UDIMM, Dual Channel
▸ Max Capacity: 256GB
▸ Memory Speed:
  • JEDEC: 4800–5600 MT/s
  • OC: Up to 8200+ MT/s
▸ ECC Support: Non-ECC, Un-buffered

🔌 Expansion Slots

  • 1× PCIe 5.0 x16 (CPU)
  • 2× PCIe x16 (Secondary)
  • 1× PCIe x1

💾 Storage

  • 1× M.2 PCIe 5.0 x4 (CPU)
  • 2× M.2 PCIe 4.0 x4 (Chipset)
  • 4× SATA 6Gb/s
  • RAID 0/1/10 (SATA)
  • RAID 0/1/5 (NVMe – Ryzen 9000 only)

🌐 Networking

  • Realtek 8126VB 5G LAN
  • WiFi 7 (802.11be)
  • Bluetooth 5.4

🔌 Rear I/O Highlights

  • 1× USB4 40Gbps Type-C
  • USB 2.0 / 5G / 10G / 20G ports
  • HDMI 2.1
  • USB-C DisplayPort 1.4

🔊 Audio

  • Realtek ALC897
  • 7.1-Channel HD Audio

✨ Extras

  • Mystic Light RGB + ARGB Gen2
  • EZ Debug LED
  • EZ Memory Detection LED
  • Windows® 11 64-bit Support
