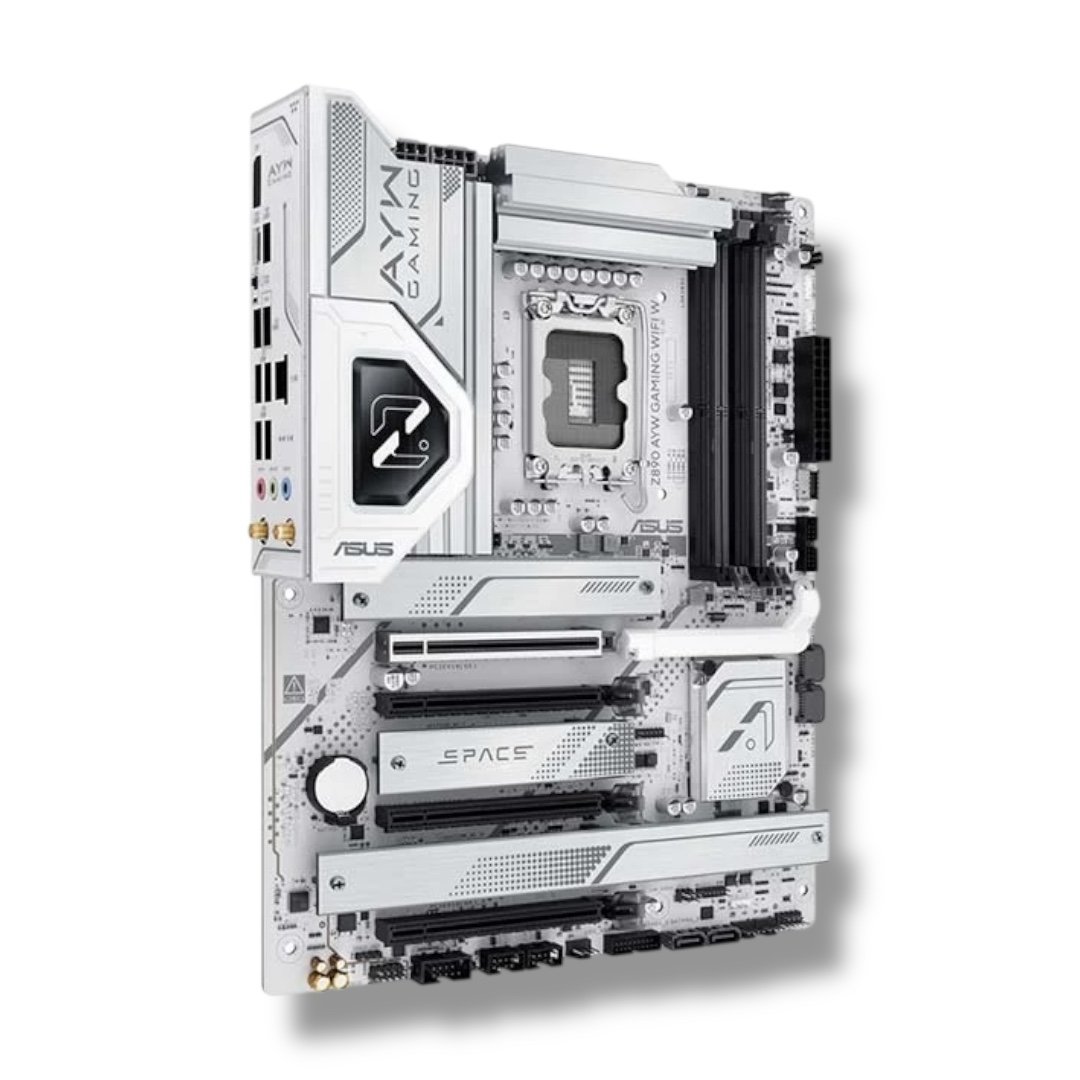

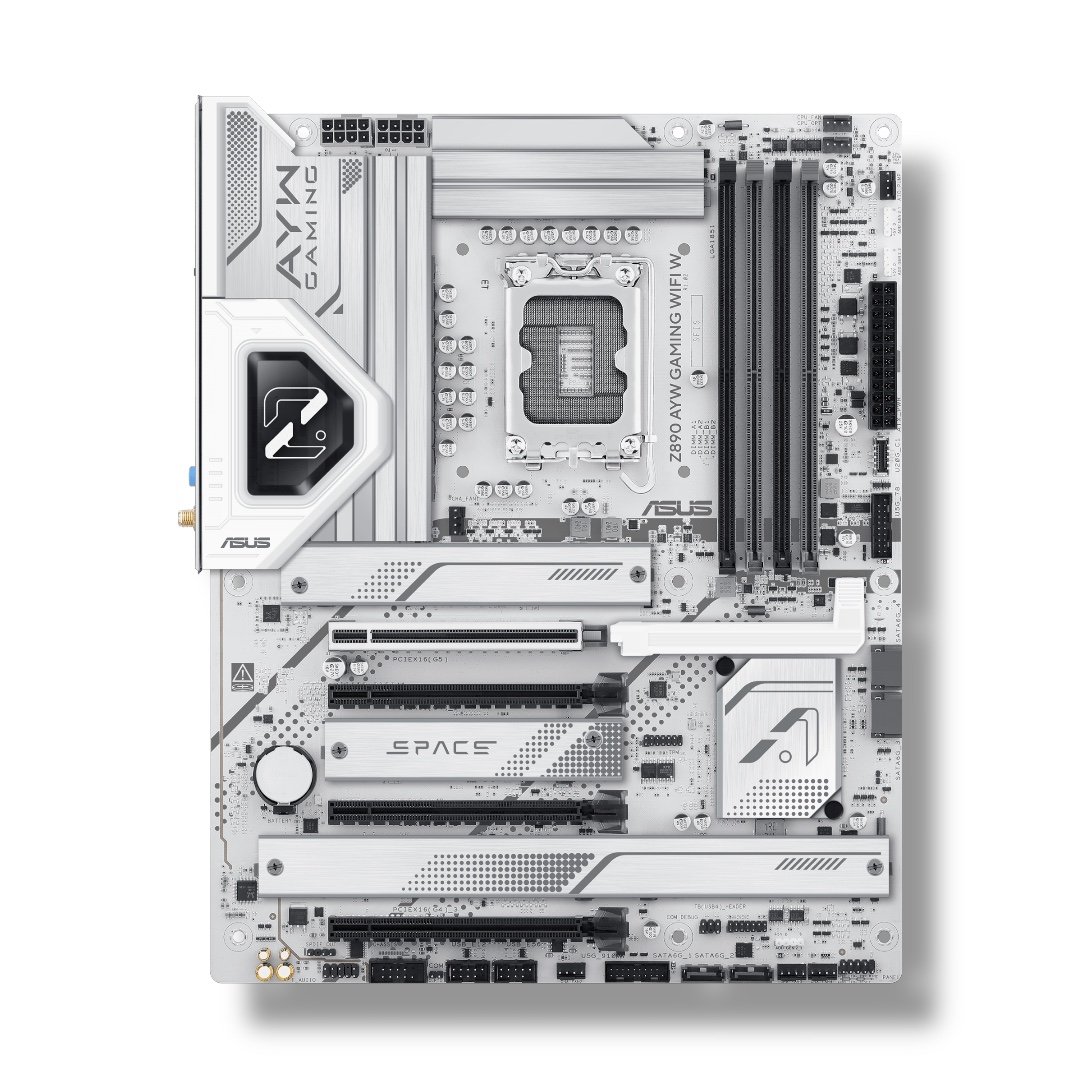

ASUS AYW Gaming WiFi W Z890 – LGA1851 | Z890 | DDR5 | PCIe 5.0 | Wi-Fi 6

Information:

Built for next-gen AI-ready systems, this ATX motherboard is powered by Intel Z890 and supports Intel® Core™ Ultra Processors (Series 2) on the new LGA1851 socket. Featuring PCIe 5.0, DDR5 up to 9066+ MT/s (OC), Wi-Fi 6, USB 20Gbps Type-C, and Thunderbolt (USB4) header support — it’s ready for high-performance gaming and productivity builds.

Description:

▸ Chipset: Intel Z890
▸ Socket: LGA1851
▸ Form Factor: ATX (12″ × 9.6″)

⸻

⚡ Power Design

▸ VRM: 12+1+2+1 Phase
▸ Power Stage: 80A DrMOS
▸ Power Connector: ProCool

⸻

💾 Memory

▸ Type: DDR5
▸ Slots: 4× DIMM
▸ Max Capacity: 256GB
▸ Speed: Up to 9066+ MT/s (OC)
▸ Channel: Dual Channel

⸻

🚀 Expansion Slots

▸ 1× PCIe 5.0 x16
▸ 2× PCIe 4.0 x16
▸ 1× PCIe 4.0 x1

⸻

💽 Storage

▸ 4× M.2 Slots
  • 1× PCIe 5.0 x4
  • 3× PCIe 4.0 x4
▸ 4× SATA 6Gb/s Ports

⸻

🌐 Networking

▸ LAN: Realtek 2.5Gb Ethernet
▸ Wireless: Wi-Fi 6
▸ Bluetooth: 5.3

⸻

🔊 Audio

▸ Codec: Realtek 7.1 Surround HD Audio
▸ Digital Output: S/PDIF Header

⸻

🔌 Rear I/O Ports

▸ 1× USB 20Gbps Type-C
▸ 3× USB 10Gbps Type-A
▸ 4× USB 2.0
▸ 1× 2.5Gb LAN
▸ Audio Ports
