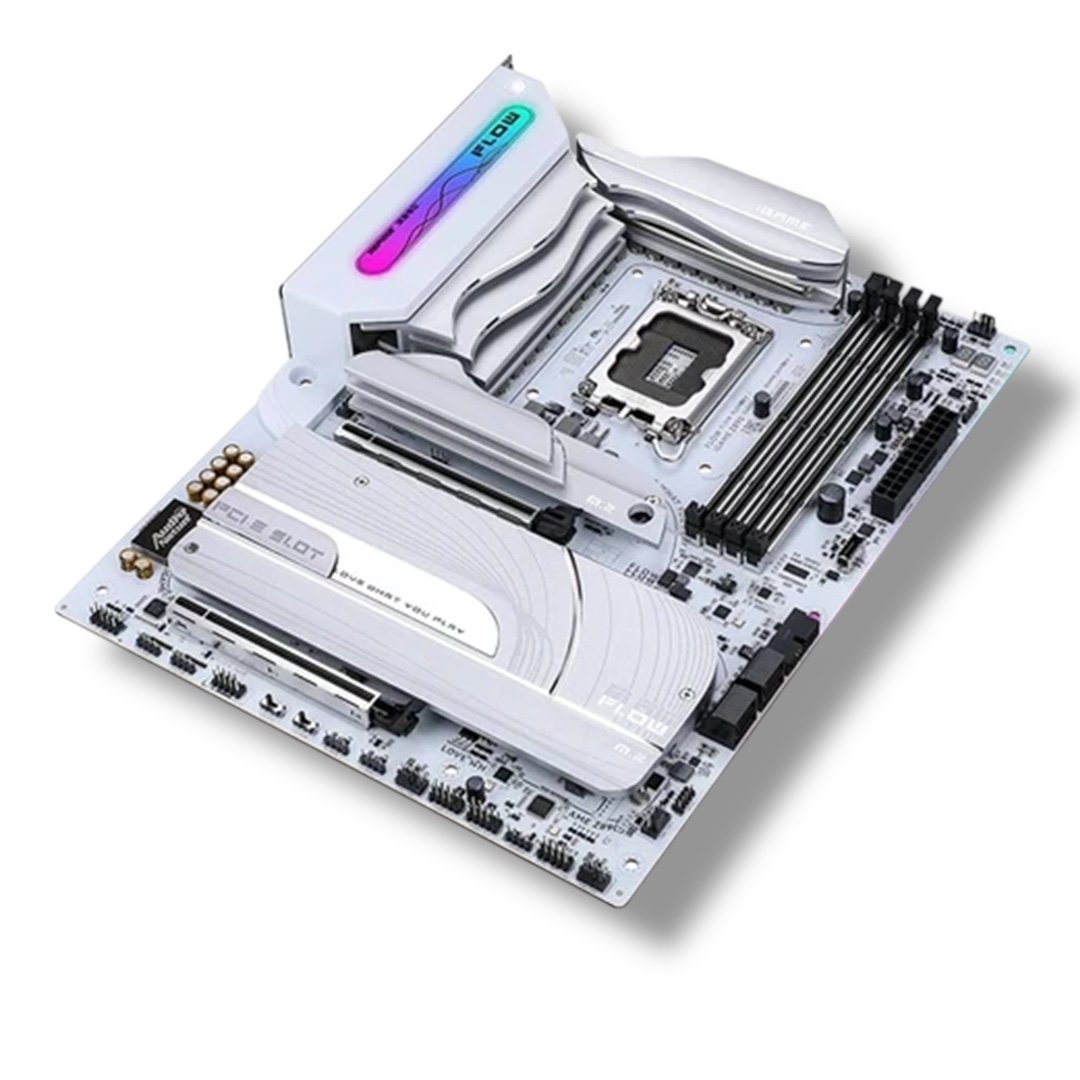

Colorful iGame Z790D5 FLOW V20 – LGA1700 | Z790 | DDR5 7800 OC | PCIe 5.0

Information:

A high-performance ATX motherboard built on Intel Z790, engineered for 14th / 13th / 12th Gen Intel CPUs. Featuring an 18+1+1 phase 90A VRM, DDR5 7800MHz OC support, PCIe 5.0 GPU slot, quad M.2 storage, and premium networking — perfect for high-end gaming and creator builds.

Description:

▸ Chipset: Intel Z790
▸ Socket: LGA1700
▸ Form Factor: ATX
▸ Dimensions: 305 × 244 mm

⚡ Power Design

▸ VRM: 18+1+1 Phase
▸ Power Stage: 90A Dr.MOS

💾 Memory

▸ Type: DDR5
▸ Slots: 4× DIMM
▸ Max Capacity: 192GB
▸ Channel: Dual Channel
▸ Speed Support:
7800(OC) down to 4800MHz
▸ XMP: Intel XMP Supported

⸻

🚀 Expansion Slots

▸ 1× PCIe 5.0 x16
▸ 1× PCIe 4.0 x4 (x16 size)
▸ 1× PCIe 4.0 x4
▸ 1× PCIe 3.0 x1

⸻

💽 Storage

▸ 4× M.2 Slots (PCIe 4.0 x4)
  • M.2_4 supports PCIe or SATA
▸ 6× SATA 6Gb/s
▸ RAID 0 / 1 / 5 / 10 (SATA & NVMe*)

⸻

🌐 Networking

▸ LAN: Realtek RTL8125BG 2.5G
▸ WiFi: AX211 / AX210 WiFi 6E
▸ Bluetooth: 5.3

⸻

🔊 Audio

▸ Codec: Realtek ALC1220
▸ Channels: 7.1 HD Audio
▸ Digital: S/PDIF

⸻

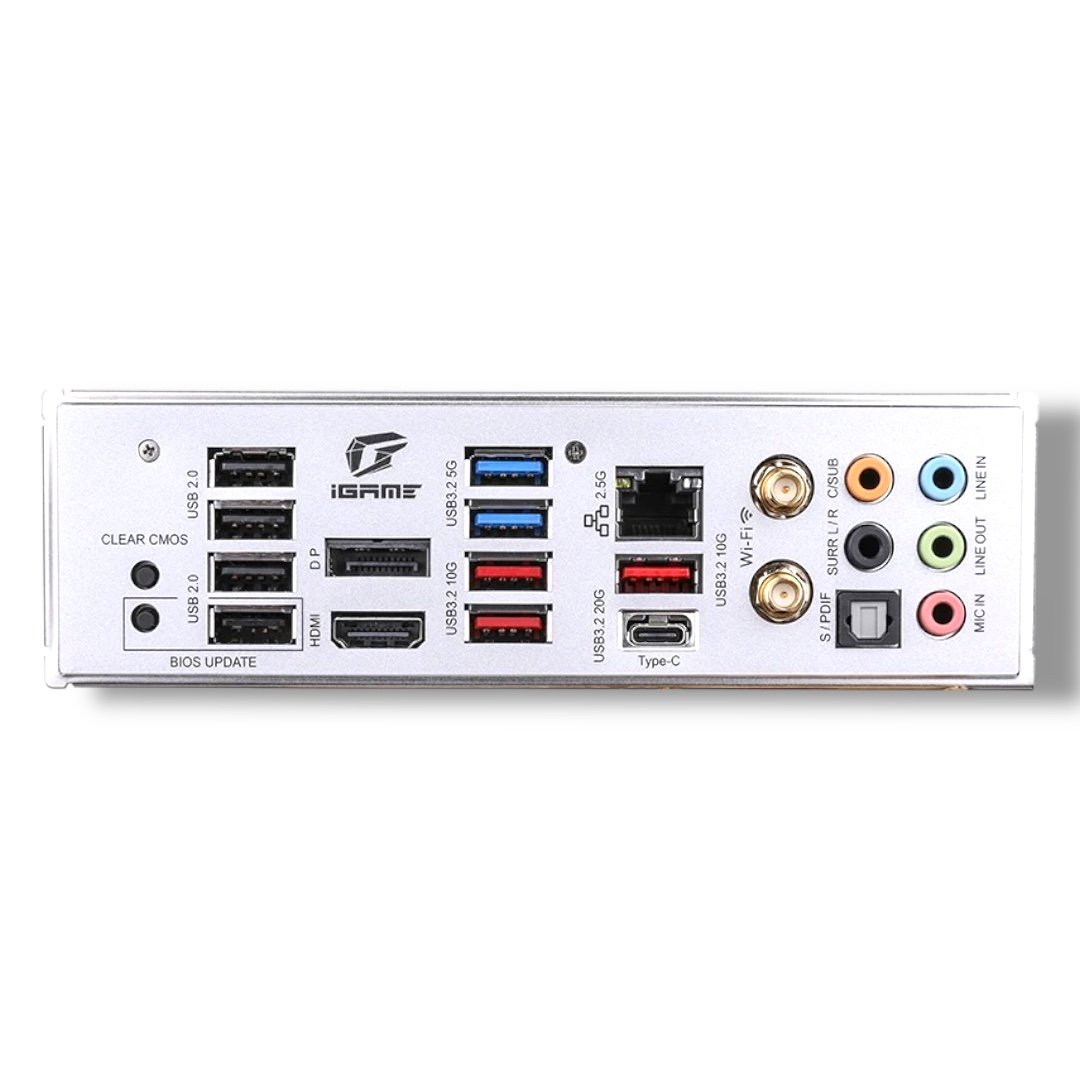

🔌 Rear I/O Highlights

▸ 1× USB 3.2 Gen 2×2 Type-C (20Gbps)
▸ 3× USB 3.2 Gen 2 Type-A
▸ 2× USB 3.2 Gen 1
▸ 4× USB 2.0
▸ 1× DisplayPort 1.2 (4K 60Hz)
▸ 1× HDMI 2.0 (4K 60Hz)
▸ 1× 2.5G LAN
▸ 5× Audio Jacks + 1× S/PDIF
▸ BIOS Flash Button + CMOS Clear

⸻

🔧 Internal Headers

▸ USB 2.0 / USB 3.2 Gen1 / Gen2×2 Type-C
▸ 2× CPU Fan Headers
▸ 3× System Fan Headers
▸ 1× Pump Header
▸ 5V ARGB + 12V RGB Headers
▸ Front Audio + Front Panel Header
