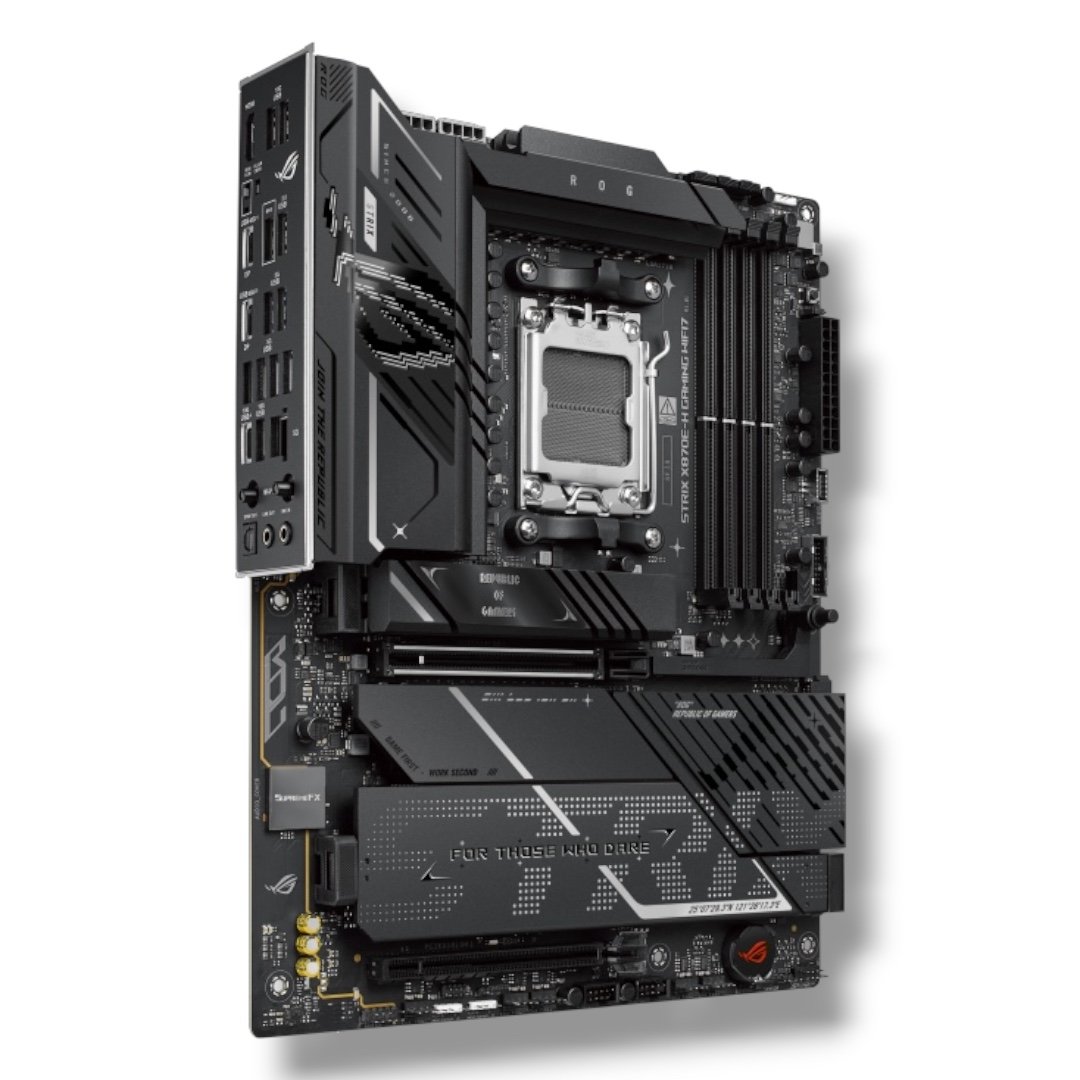

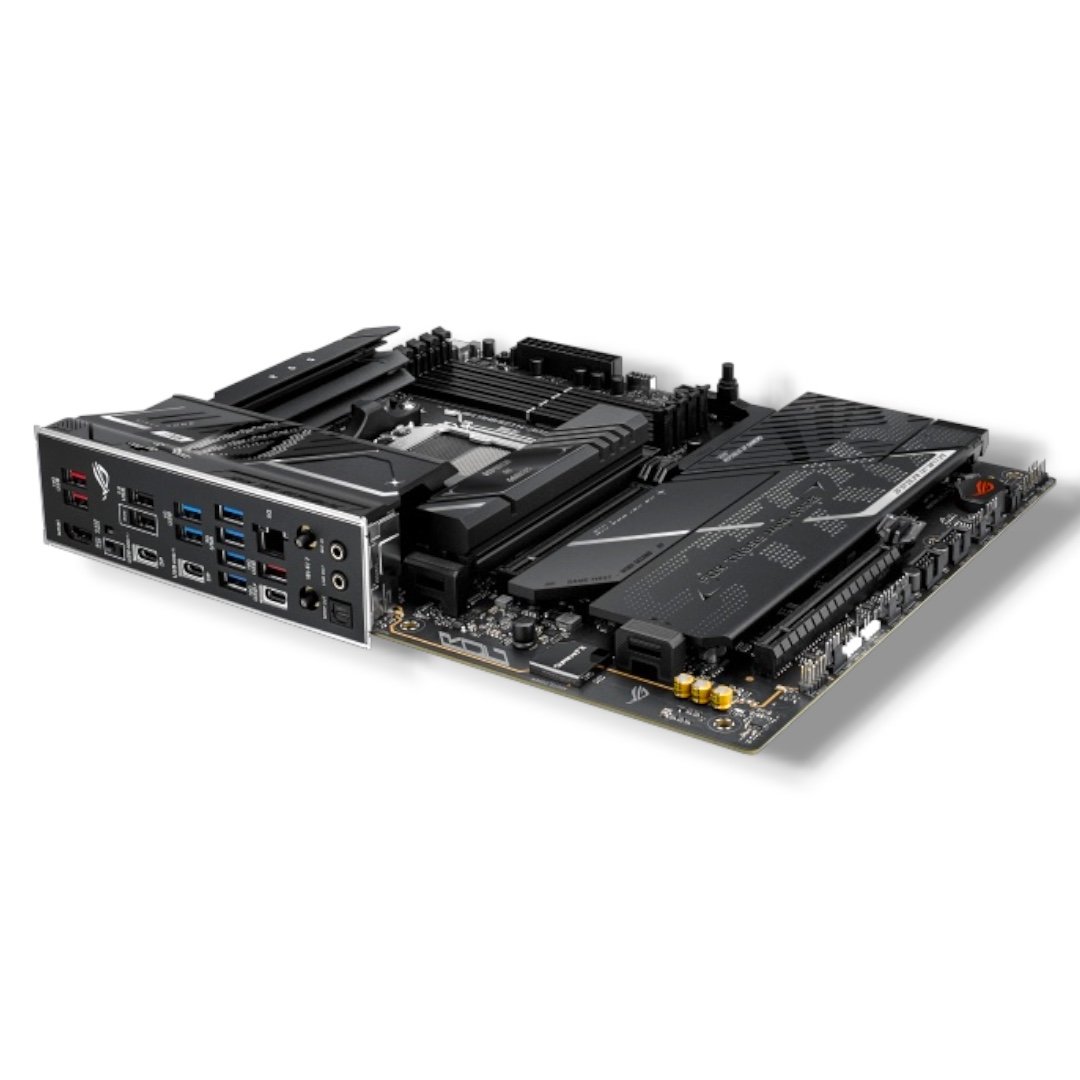

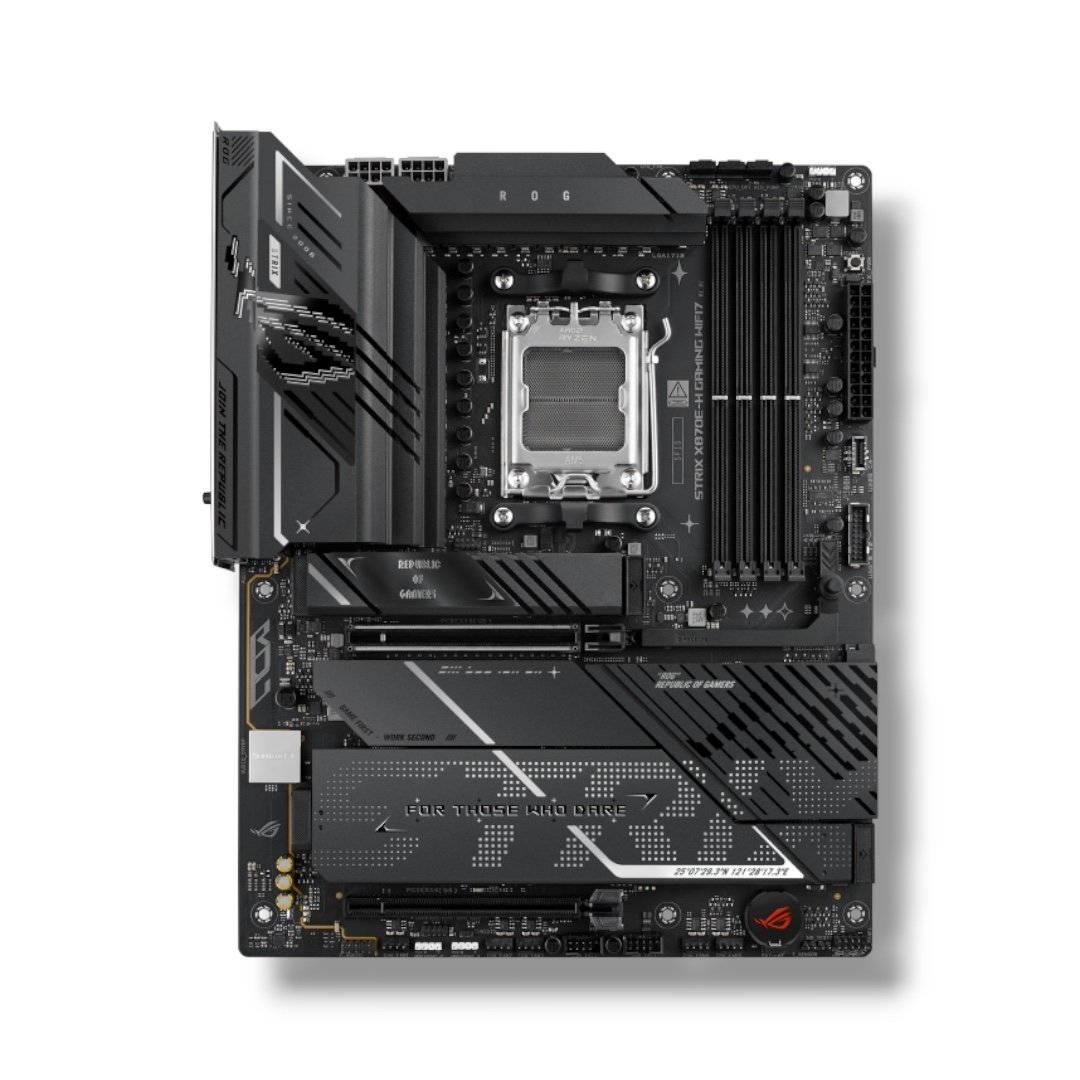

ASUS ROG STRIX X870E-H GAMING WIFI7 AM5 ATX Motherboard | DDR5 8000+ | PCIe 5.0 | USB4 | WiFi 7 | 5Gb LAN

Information:

Built for AMD Ryzen™ 9000, 8000, and 7000 Series processors, the ROG STRIX X870E-H GAMING WIFI7 delivers elite-level performance with robust power delivery, PCIe 5.0 expansion, dual USB4 connectivity, WiFi 7 networking, advanced AI tuning technologies, and premium ROG engineering for gamers, creators, and AI enthusiasts.

Description:

▸ Model: ROG STRIX X870E-H GAMING WIFI7
▸ Chipset: AMD X870E
▸ Socket: AM5
▸ CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
▸ Form Factor: ATX
▸ Dimensions: 305 × 244 mm
▸ VRM Design: 16+2+1 Power Stages (80A)
▸ Memory Slots: 4 × DDR5 DIMM
▸ Maximum Memory: 256GB
▸ Memory Speed: Up To DDR5-8000+ MT/s (OC)
▸ Memory Features: EXPO™, AEMP, DIMM Fit, DIMM Fit Pro, On-Die ECC
▸ Memory Channels: Dual Channel
▸ PCIe Slot 1: 1 × PCIe 5.0 x16
▸ PCIe Slot 2: 1 × PCIe 4.0 x16 (CPU Dependent)
▸ PCIe Slot 3: 1 × PCIe 4.0 x16 (x4 Chipset Mode)
▸ M.2 Slots: 4
▸ PCIe 5.0 M.2 Slots: 2
▸ PCIe 4.0 M.2 Slots: 2
▸ SATA Ports: 4 × SATA 6Gb/s
▸ RAID Support: RAID 0 / 1 / 5 / 10
▸ Graphics Output: 1 × HDMI 2.1 (Up To 4K@60Hz)
▸ USB4 Display Support: Yes
▸ Rear USB: 2 × USB4 40Gbps Type-C, 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0
▸ Front USB: 1 × USB-C 20Gbps, USB 5Gbps Headers, USB 2.0 Headers
▸ Ethernet: Realtek 5Gb Ethernet
▸ Network Protection: ASUS LANGuard
▸ Wireless: WiFi 7 (802.11be, 2×2)
▸ WiFi Bands: 2.4GHz / 5GHz / 6GHz
▸ Bluetooth: Bluetooth 5.4
▸ Audio Codec: SupremeFX ALC1220P
▸ Audio Channels: 7.1 Surround Sound
▸ Audio Resolution: 32-bit / 192kHz
▸ Audio Output: Optical S/PDIF
▸ Cooling Headers: CPU Fan, CPU OPT, AIO Pump, 5 × Chassis Fan Headers
▸ Power Connectors: 24-Pin ATX, 2 × 8-Pin CPU EPS
▸ RGB Headers: 3 × Addressable Gen 2 RGB Headers
▸ Special Features: AI Overclocking, AI Cooling II, AI Cache Boost, Dynamic OC Switcher, Core Flex
▸ BIOS: 256Mb UEFI AMI BIOS
▸ Operating System: Windows 11
▸ Included Accessories: WiFi Q-Antenna, SATA Cables, M.2 Kits, ROG Accessories
