COLORFUL BATTLE-AX H610M-E WIFI V21 M-ATX Motherboard | LGA1700 | WiFi 6 | Bluetooth 5.2

Information:

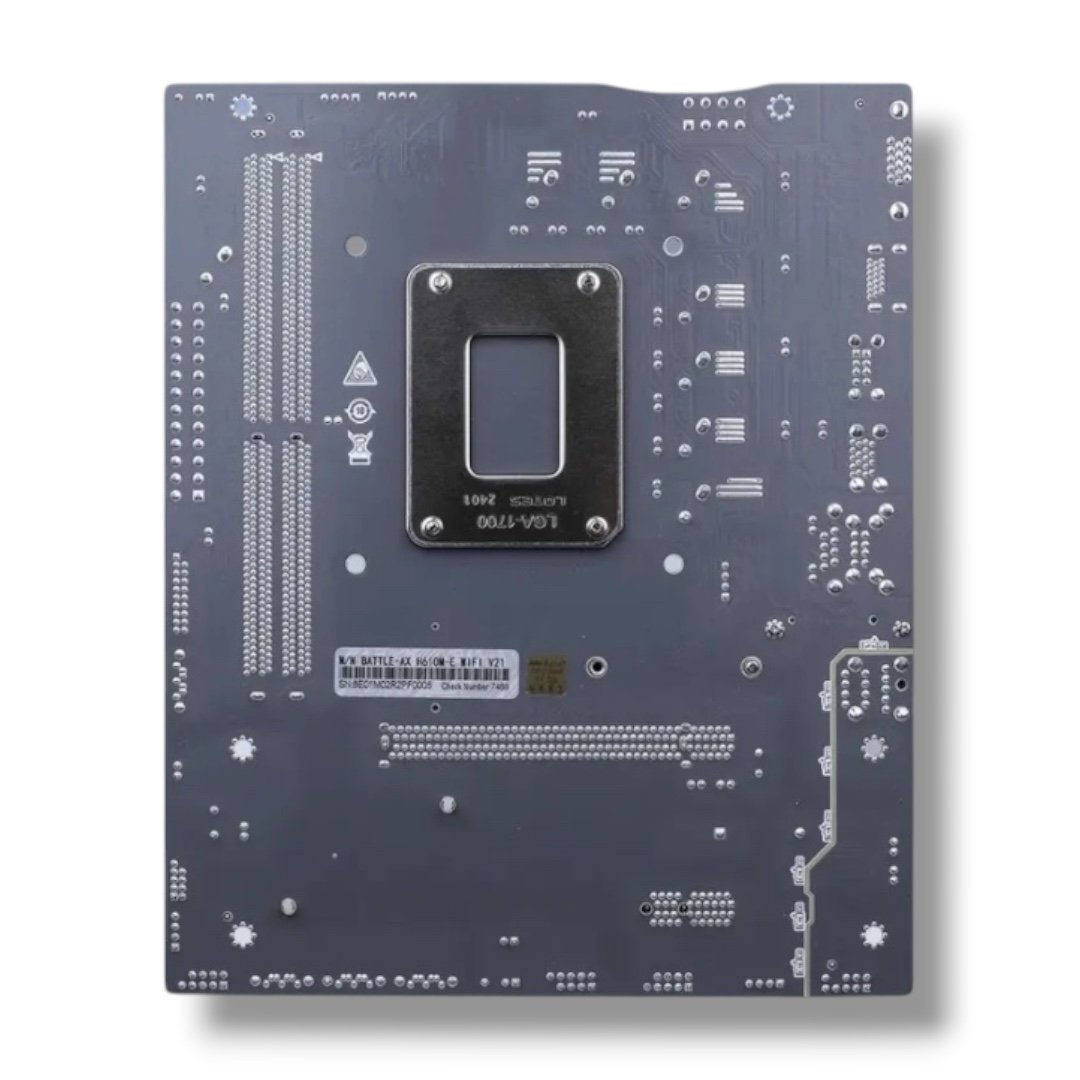

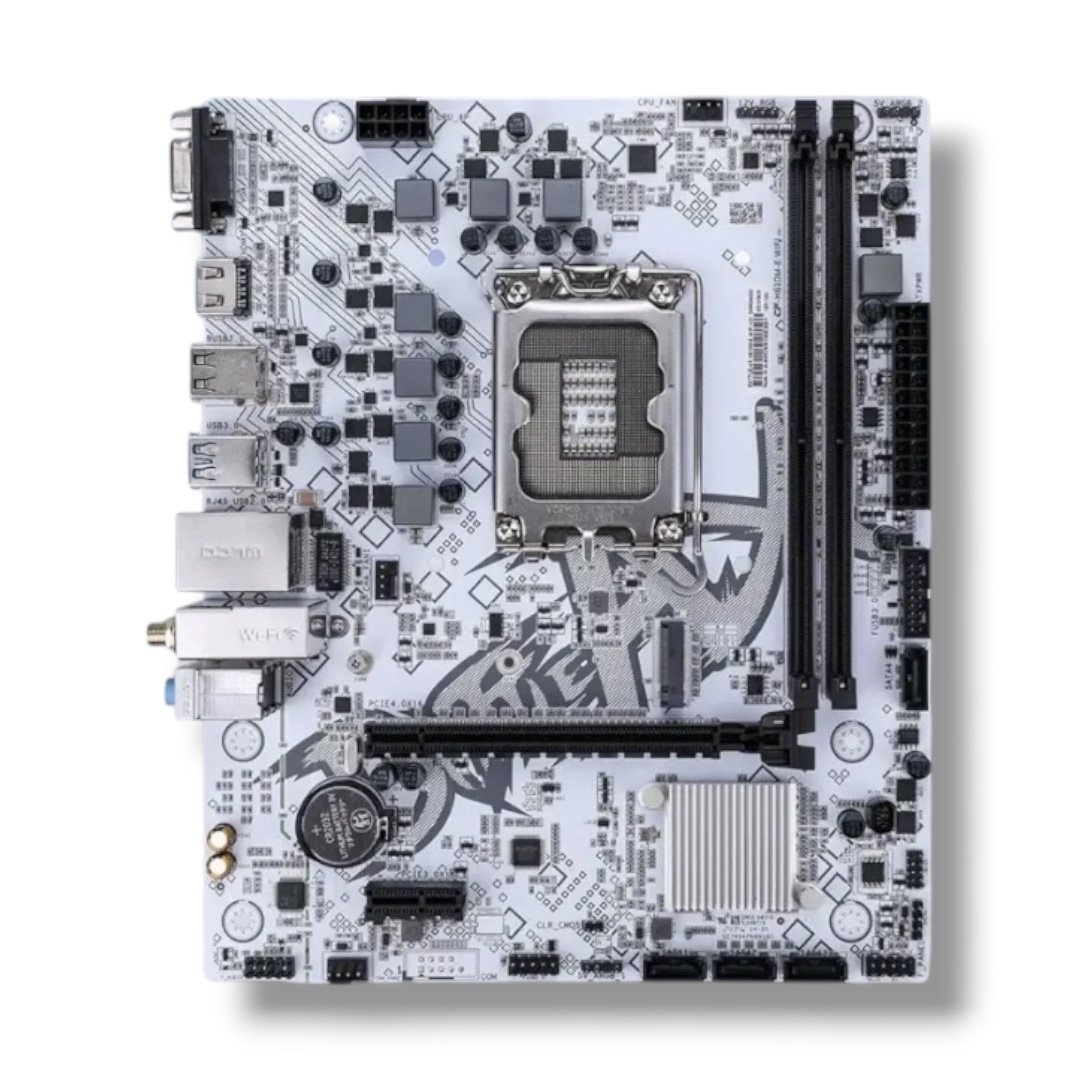

The COLORFUL BATTLE-AX H610M-E WIFI V21 is a feature-packed Micro-ATX motherboard built for Intel’s latest generations of processors. With integrated WiFi 6, Bluetooth 5.2, PCIe 4.0 graphics support, RGB lighting headers, and high-speed NVMe storage compatibility, it offers outstanding value for gaming and productivity builds.

Description:

▸ Model: COLORFUL BATTLE-AX H610M-E WIFI V21
▸ Chipset: Intel H610
▸ CPU Socket: LGA1700
▸ Processor Support: Intel 14th / 13th / 12th Gen Core, Pentium, Celeron
▸ Form Factor: Micro-ATX
▸ Dimensions: 225 × 185 mm

▸ Memory Slots: 2 × DDR4 DIMM
▸ Maximum Memory Capacity: 64GB
▸ Per Slot Capacity: Up To 32GB
▸ Memory Speeds: DDR4-3200 / 2933 / 2666 / 2400MHz
▸ Memory Architecture: Dual Channel

▸ PCIe x16 Slot: 1 × PCIe 4.0 x16
▸ PCIe x1 Slot: 1 × PCIe 3.0 x1

▸ M.2 Slot: 1 × PCIe 3.0 x4 NVMe
▸ M.2 SSD Support: 2242 / 2280
▸ SATA Ports: 4 × SATA 6Gb/s

▸ HDMI Port: 1 × HDMI 2.0
▸ HDMI Resolution: Up To 4K @ 60Hz
▸ VGA Port: 1 × VGA

▸ Wired LAN: Realtek RTL8111H Gigabit Ethernet
▸ Wireless: Intel AX101 WiFi 6
▸ Bluetooth: Version 5.2
▸ WiFi Antenna Ports: 2

▸ Audio Codec: Realtek ALC897
▸ Audio Channels: Up To 7.1 Channels
▸ Rear Audio Ports: 3 × Audio Jacks

▸ Rear USB 2.0 Ports: 4
▸ Rear USB 3.2 Gen 1 Ports: 2
▸ Front USB 3.2 Gen 1 Header: 1
▸ Front USB 2.0 Header: 1

▸ CPU Fan Header: 1
▸ System Fan Headers: 2

▸ ARGB Headers: 2 × 5V 3-Pin
▸ RGB Header: 1 × 12V 4-Pin

▸ Front Audio Header: 1
▸ Front Panel Header: 1
▸ Speaker Header: 1
▸ CMOS Clear Jumper: 1
▸ BIOS Burner Header: 1

▸ BIOS Type: 128M UEFI Multi-Language BIOS

▸ Monitoring Features:
• CPU Fan Monitoring
• System Fan Monitoring
• CPU Temperature Monitoring
• System Temperature Monitoring
• Voltage Monitoring

▸ Wake-Up Features:
• S3 / S4 Wake-Up
• Network S5 Wake-Up
• USB Wake-Up
• Scheduled Boot
