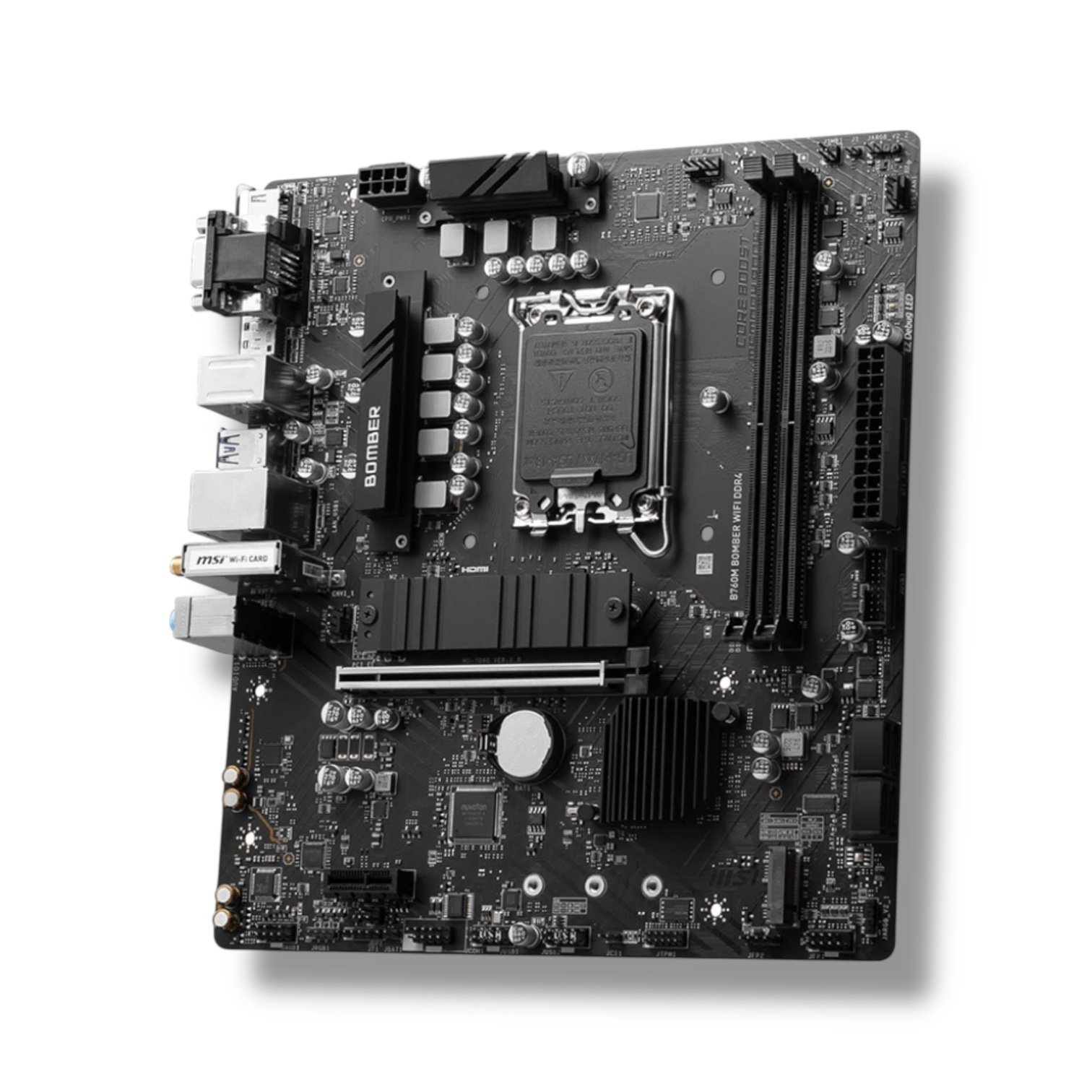

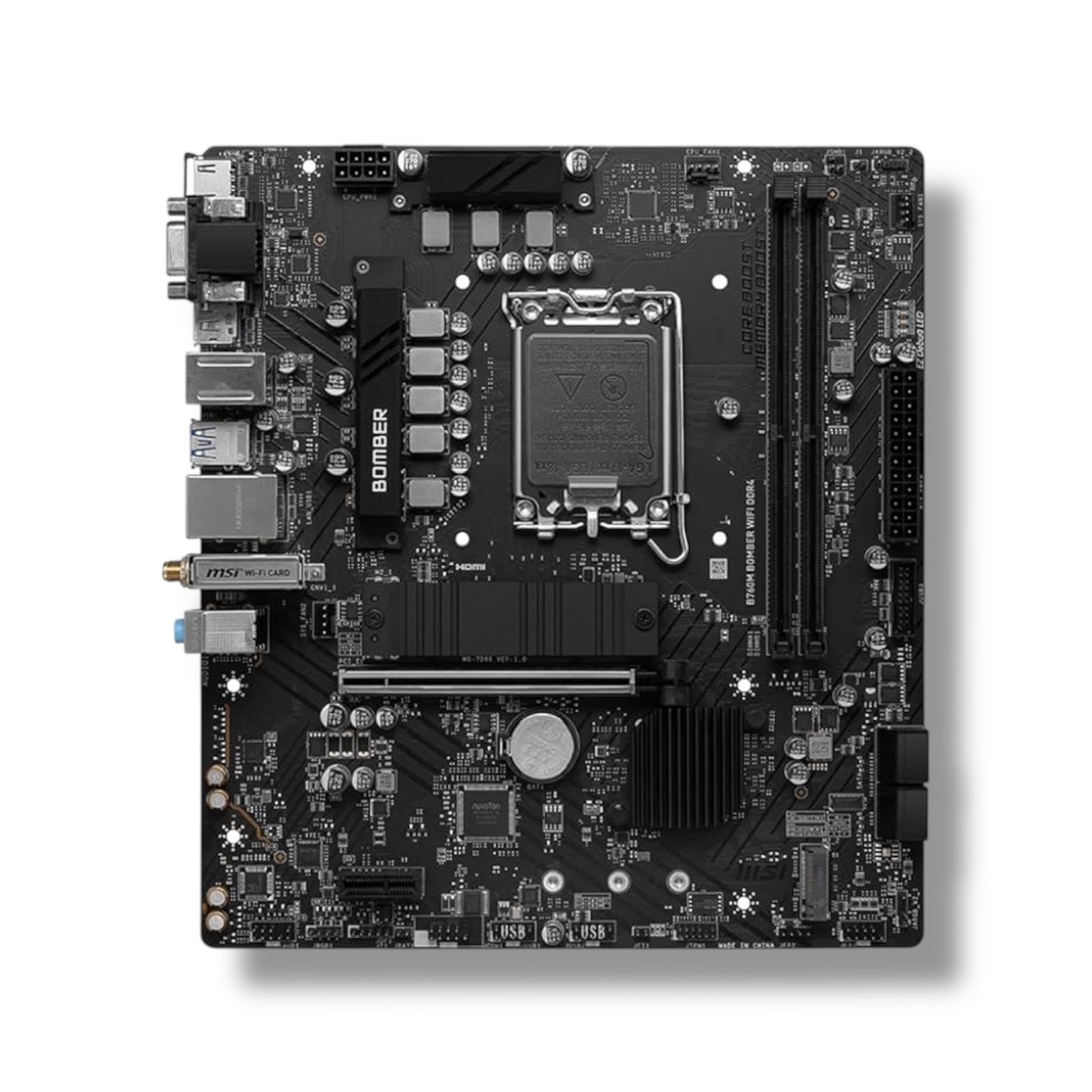

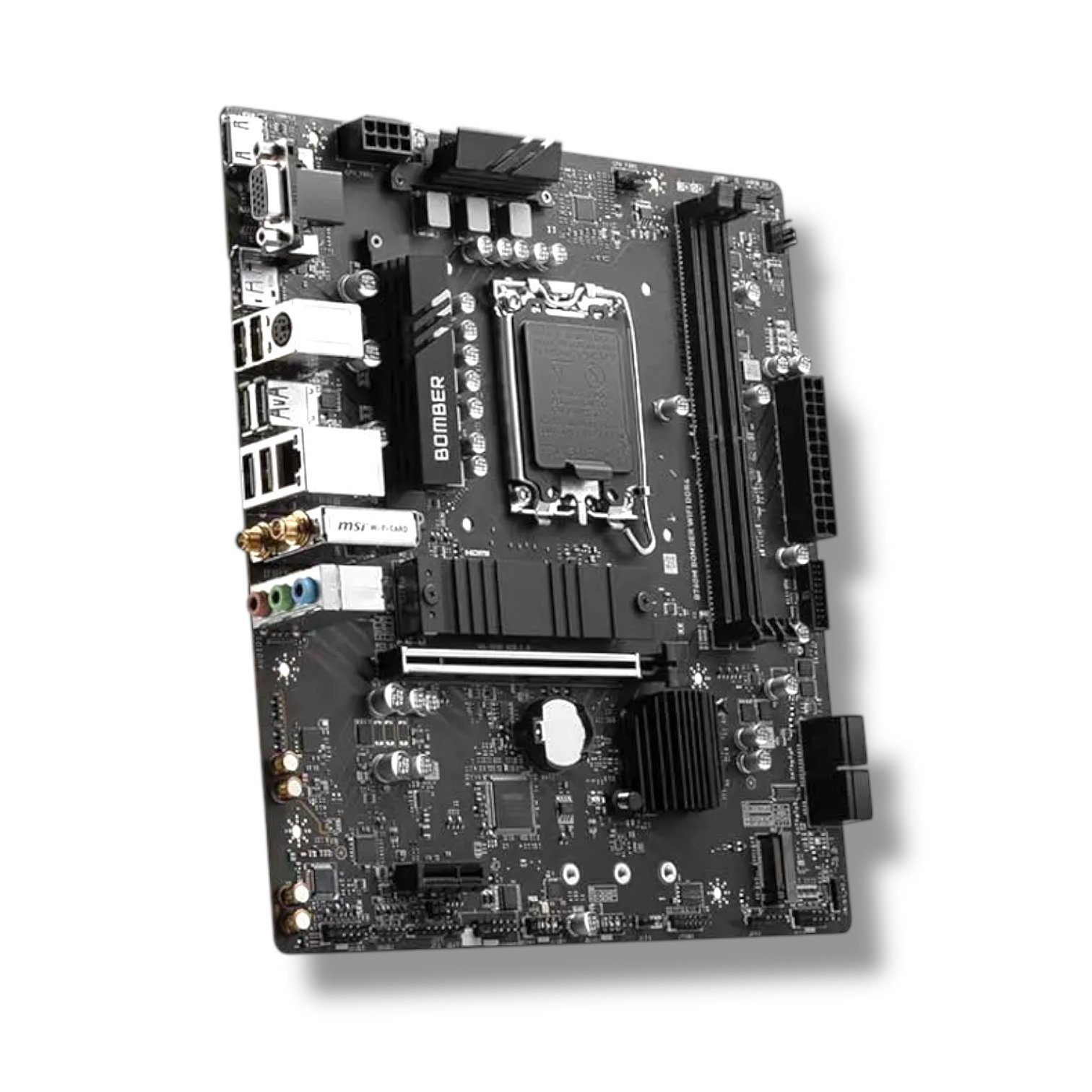

MSI B760M BOMBER DDR4 M-ATX Motherboard

Information:

MSI B760M BOMBER DDR4 M-ATX Motherboard | Intel® 12th & 13th Gen Support | Dual M.2 | 2.5G LAN | Audio Boost | PCIe 4.0

Description:

▸ SKU: 911-7D90-034
▸ Chipset: Intel® B760
▸ CPU Support: Intel® 12th & 13th Gen Core™, Pentium® Gold, Celeron® (LGA 1700)
▸ Memory: 2× DDR4 DIMMs, up to 64GB, Dual-Channel, Non-ECC, Un-buffered, XMP Supported
▸ Memory Speeds: OC 4800+ / JEDEC up to 3200 MHz
▸ Graphics Outputs: 1× HDMI™ 2.1 (4K@60Hz), 1× DisplayPort 1.4, 1× VGA
▸ Expansion Slots: 1× PCIe x16 (Gen 4.0), 1× PCIe x1 (Gen 4.0)
▸ Audio: Realtek® ALC897 Codec, 7.1 Channel HD Audio
▸ Storage: 2× M.2 (PCIe 4.0 x4, 2280/2260/2242), SATA RAID 0/1/5/10
▸ LAN: Realtek® RTL8125B 2.5Gbps Ethernet
▸ USB (Rear): 2× USB 2.0, 2× USB 3.2 Gen 1 (Type-A, 5Gbps)
▸ USB (Front): 4× USB 2.0
▸ Internal IO: CPU Fan, 2× SYS Fan, JARGB_V2, JRGB, JAUD, JCOM, TPM 2.0, USB Headers
▸ LED Indicators: 4× EZ Debug LED
▸ Back Panel: HDMI™, VGA, DP, 2.5G LAN, Audio, USB Ports
▸ Operating System: Windows® 11/10 (64-bit)
▸ Form Factor: mATX (220mm x 243.84mm)
