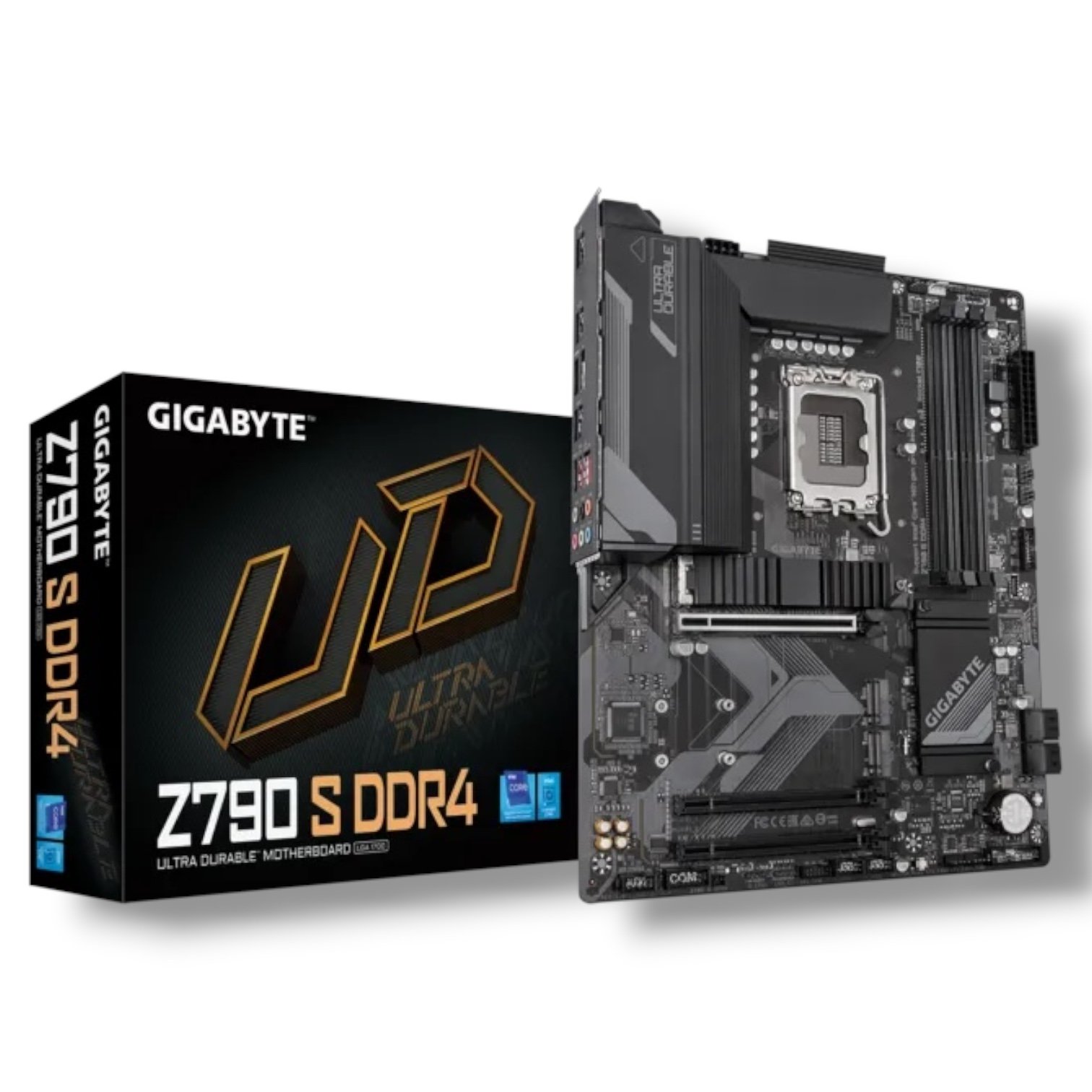

Gigabyte Z790 S DDR4 ATX Motherboard – LGA1700 | Z790 Chipset | DDR4-5333 OC | Triple PCIe 4.0 M.2 | 2.5GbE LAN | OPEN BOX

Information:

Built for Intel 14th, 13th, and 12th Gen processors, the Gigabyte Z790 S DDR4 delivers premium Z790 features without forcing a jump to DDR5. With robust 8+1+1 phase VRM power delivery, triple PCIe 4.0 M.2 slots, 2.5GbE networking, and easy-install features like EZ-Latch and Q-Flash Plus, it’s an excellent foundation for gaming and productivity builds.

Description:

▸ Socket: Intel LGA1700
▸ Chipset: Intel Z790 Express
▸ Form Factor: ATX
▸ CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
▸ VRM Design: 8+1+1 Phase Hybrid Digital VRM
▸ Power Stages: 60A DrMOS
▸ Memory Type: DDR4
▸ Memory Slots: 4× DDR4 DIMM
▸ Maximum Memory: 128GB
▸ Memory Speed: Up to DDR4-5333 (OC)
▸ Memory Architecture: Dual-Channel
▸ XMP Support: Yes
▸ Primary PCIe Slot: PCIe 4.0 x16
▸ Additional PCIe Slots: 2× PCIe 3.0 x1
▸ M.2 Slots: 3× PCIe 4.0 M.2
▸ M.2 Cooling: M.2 Thermal Guard
▸ SATA Ports: 4× SATA 6Gb/s
▸ RAID Support: RAID 0 / 1 / 5 / 10
▸ LAN: Realtek 2.5GbE
▸ DisplayPort: 1× DP 1.2 (4096×2304 @ 60Hz)
▸ HDMI: 1× HDMI 2.1 (4096×2160 @ 60Hz)
▸ Rear USB: 1× USB 3.2 Gen2 Type-A, 2× USB 3.2 Gen1, 5× USB 2.0
▸ Front USB-C: USB 3.2 Gen2 10Gbps Header
▸ Audio: Realtek HD Audio, 7.1 Channel
▸ Audio Connectors: 6 Rear Audio Jacks
▸ S/PDIF Support: Yes
▸ CPU Fan Headers: 2
▸ System Fan Headers: 4
▸ ARGB Headers: 2
▸ RGB Headers: 2
▸ BIOS Features: UC BIOS, Q-Flash, Q-Flash Plus
▸ Operating System: Windows 11 / Windows 10 64-bit
▸ Dimensions: 30.5 × 24.4 cm
▸ Integrated I/O Shield: Yes
