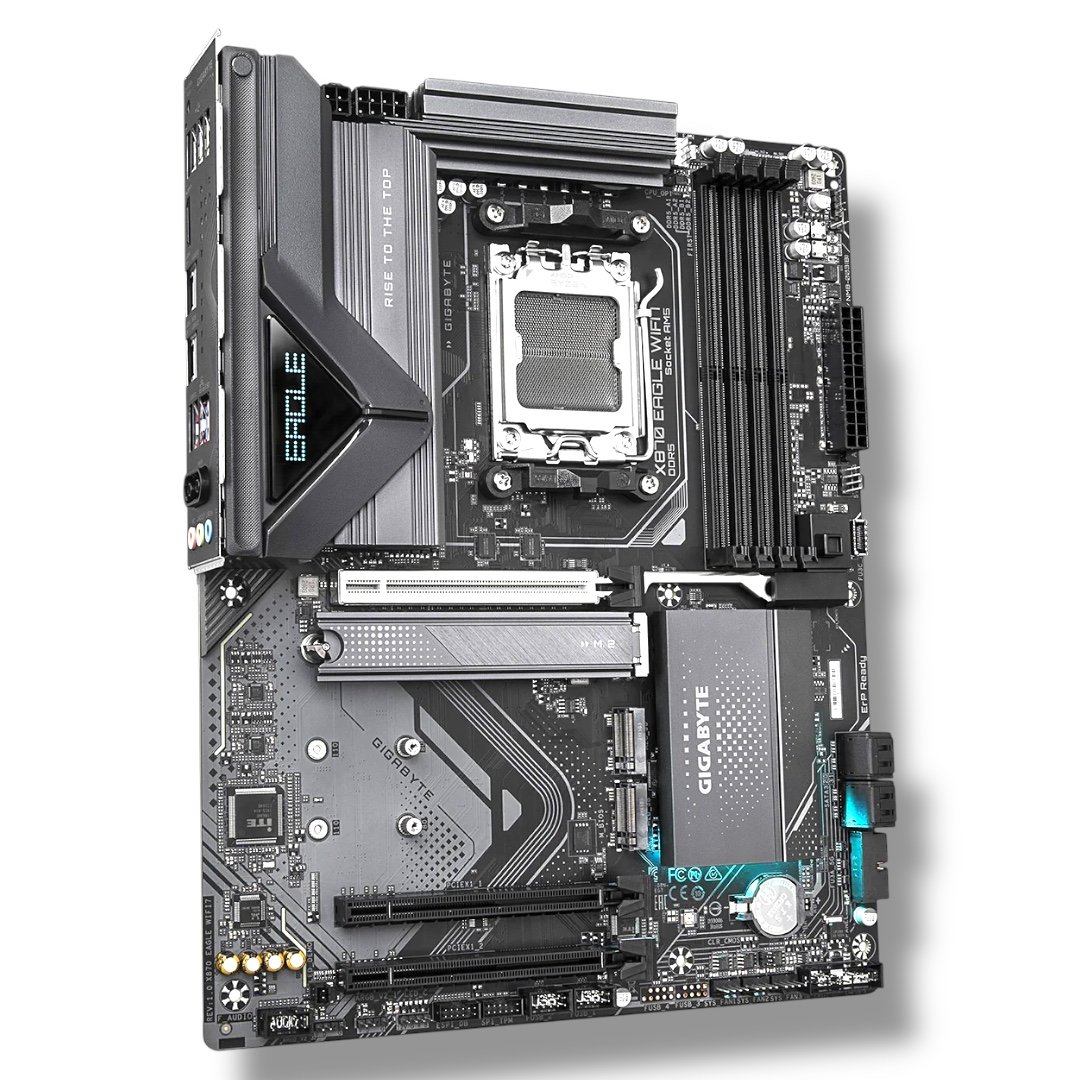

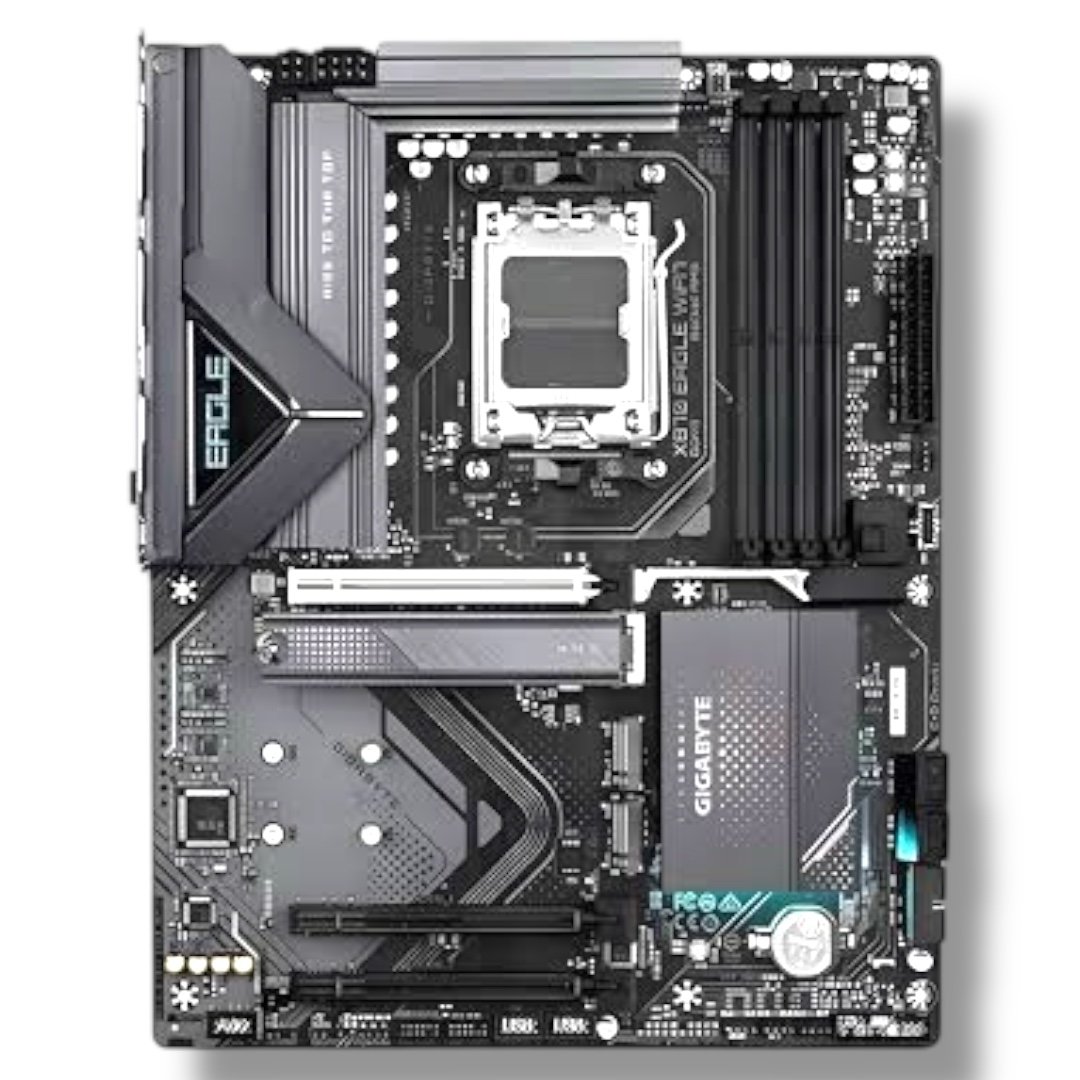

GIGABYTE X870 EAGLE WIFI7 ATX Motherboard

Information:

GIGABYTE X870 EAGLE WIFI7 ATX Motherboard – Ryzen 9000 / 8000 / 7000 Series Support

Description:

▸ SKU: 9MX87EG7-00-G11
▸ Chipset: AMD X870
▸ Socket: AM5
▸ CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
▸ Form Factor: ATX (30.5 cm × 24.4 cm)
▸ Memory:
  • 4× DDR5 DIMM, up to 256GB
  • Dual-Channel, Non-ECC, Unbuffered
  • AMD EXPO™ & Intel® XMP Support
▸ Memory Speeds (OC):
  8200 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6400 / 6000 / 5600 / 5200 / 4800 MT/s
▸ Graphics Outputs:
  • 2× USB4® Type-C (Supports DisplayPort Alt Mode)
  • 1× HDMI™ 2.1
▸ Expansion Slots:
  • 1× PCIe 5.0 x16 (Ultra Durable Armor)
  • 2× PCIe 3.0 x1
▸ Storage:
  • 1× M.2 (CPU) PCIe 5.0 x4
  • 2× M.2 (Chipset) PCIe 4.0 x4/x2
  • 4× SATA 6Gb/s
▸ RAID Support: NVMe RAID 0/1/5/10 (Ryzen 9000); SATA RAID 0/1/10
▸ Networking:
  • Realtek 2.5GbE LAN
  • Wi-Fi 7 + Bluetooth® 5.4
▸ Audio: Realtek HD Audio Codec, 7.1-Channel Support
▸ USB Ports (Rear):
  • 2× USB4® Type-C (40Gbps)
  • 1× USB 3.2 Gen 2 Type-A (Red)
  • 3× USB 3.2 Gen 1 Type-A
  • 4× USB 2.0/1.1
▸ USB Ports (Front):
  • 1× USB 3.2 Gen 2x2 Type-C header
  • 1× USB 3.2 Gen 1 header
  • 2× USB 2.0 headers
▸ Internal Headers:
  24-pin ATX, 8+4 pin CPU, 4× Fan headers, RGB & ARGB headers, TPM header
▸ DIY Features: EZ-Latch Plus, Q-Flash Plus, Smart Backup
▸ Operating System: Windows® 11 / 10 (64-bit)
