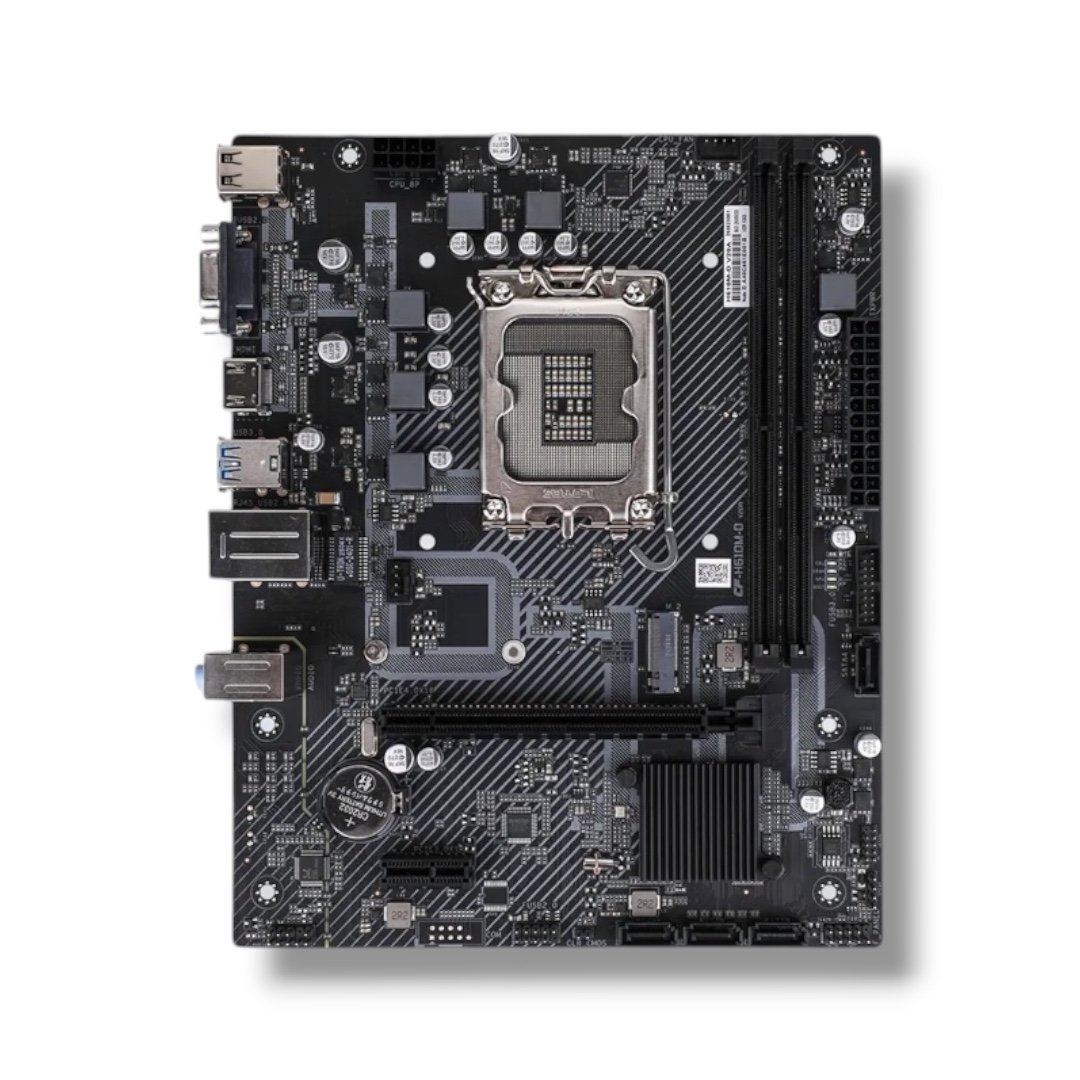

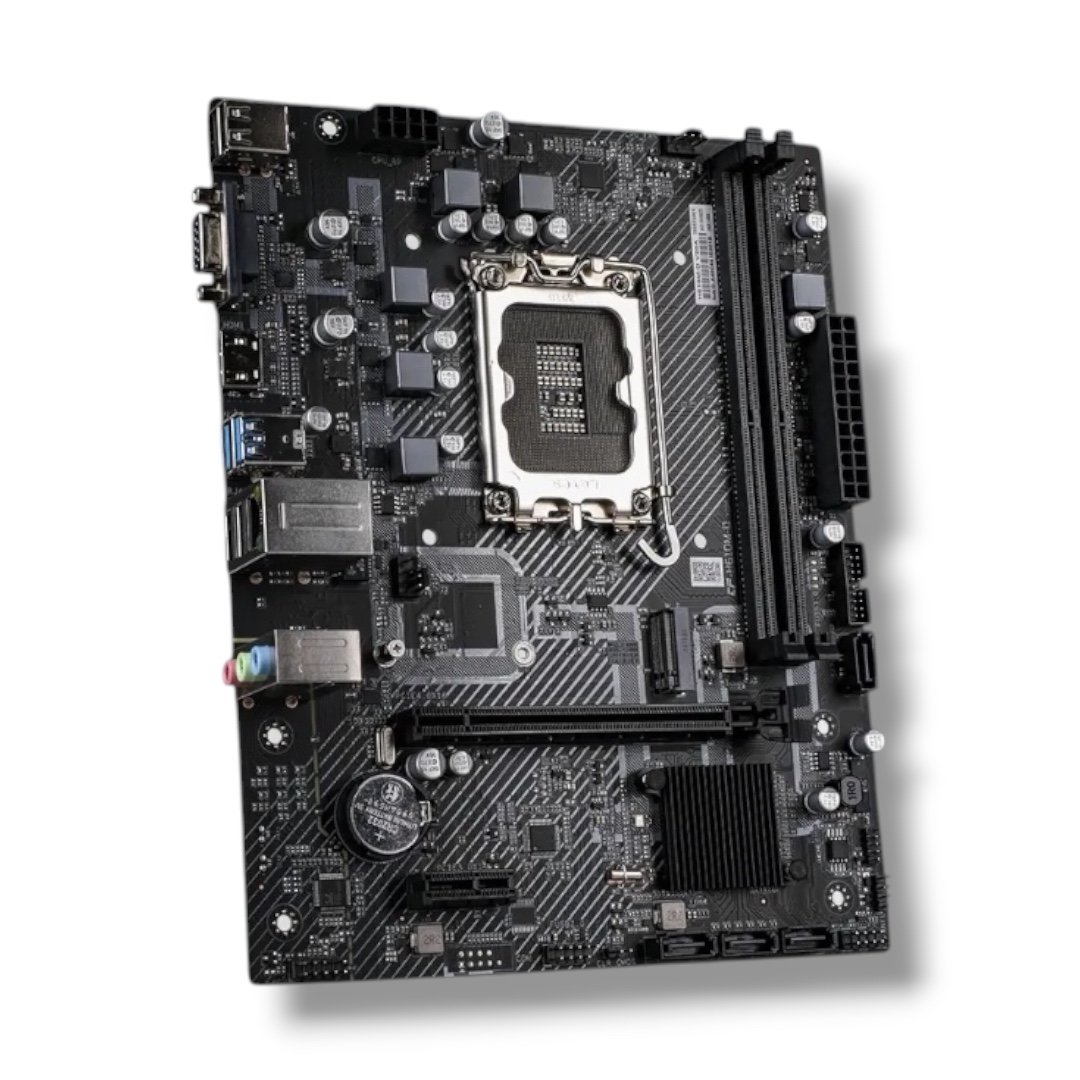

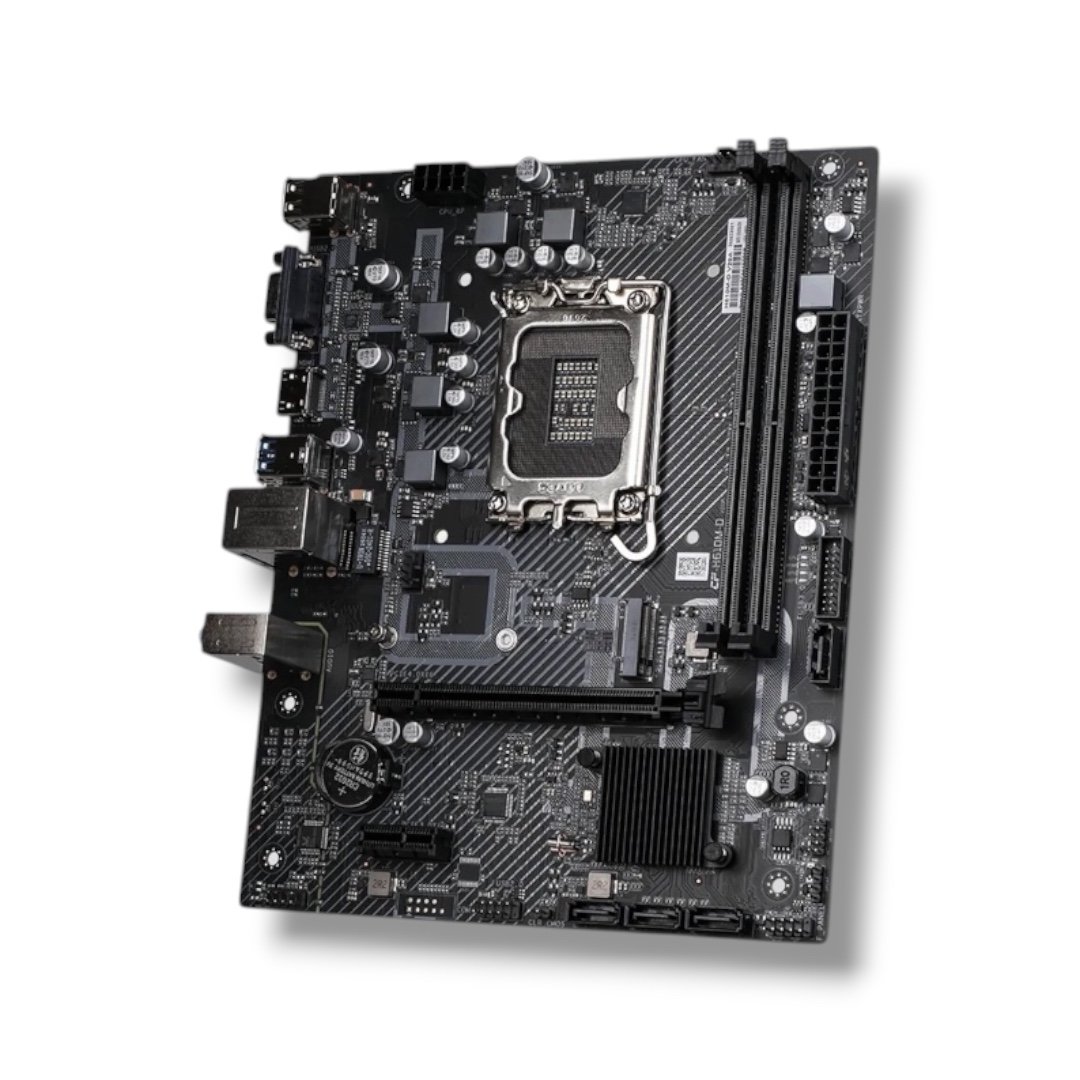

COLORFUL H610M-D V20A M-ATX Motherboard | LGA1700 | DDR4 | PCIe 4.0

Information:

Built for reliable everyday computing and budget gaming systems, the COLORFUL H610M-D V20A delivers essential Intel platform features, DDR4 memory support, PCIe 4.0 graphics compatibility, and high-speed NVMe storage support in a compact Micro-ATX design.

Description:

▸ Model: COLORFUL H610M-D V20A
▸ Chipset: Intel H610
▸ CPU Socket: LGA1700
▸ Processor Support: Intel 14th / 13th / 12th Gen Core, Pentium, Celeron
▸ Form Factor: Micro-ATX
▸ Dimensions: 225 × 180 mm

▸ Memory Slots: 2 × DDR4 DIMM
▸ Maximum Memory: 64GB
▸ Maximum Per Slot: 32GB
▸ Memory Speeds: DDR4-3200 / 2933 / 2666 / 2400 / 2133MHz
▸ Memory Architecture: Dual Channel

▸ PCIe x16 Slot: 1 × PCIe 4.0 x16
▸ PCIe x1 Slot: 1 × PCIe 3.0 x1

▸ M.2 Slots: 1
▸ M.2 Support: 2242 / 2280 NVMe SSD
▸ M.2 Interface: PCIe 3.0 x4
▸ SATA Ports: 4 × SATA 6Gb/s

▸ HDMI Port: 1 × HDMI 2.0
▸ Maximum HDMI Resolution: Up To 4K @ 60Hz
▸ VGA Port: 1 × VGA

▸ LAN Controller: Realtek RTL8111H Gigabit Ethernet
▸ Audio Codec: Realtek ALC897
▸ Audio Support: Up To 7.1 Channels
▸ Rear Audio Ports: 3 × Audio Jacks

▸ Rear USB 2.0 Ports: 4
▸ Rear USB 3.2 Gen 1 Ports: 2
▸ Front USB 3.2 Gen 1 Header: 1
▸ Front USB 2.0 Header: 1

▸ CPU Fan Header: 1
▸ System Fan Header: 1
▸ Front Audio Header: 1
▸ Front Panel Header: 1
▸ Speaker Header: 1
▸ CMOS Clear Jumper: 1
▸ BIOS Burner Header: 1

▸ BIOS Type: 128M UEFI Multi-Language BIOS

▸ Monitoring Features:
• CPU Fan Monitoring
• System Fan Monitoring
• CPU Temperature Monitoring
• System Temperature Monitoring
• Voltage Monitoring

▸ Wake Features:
• S3 Wake
• S4 Wake
• Network S5 Wake-Up
• Scheduled Startup
• Call Startup
